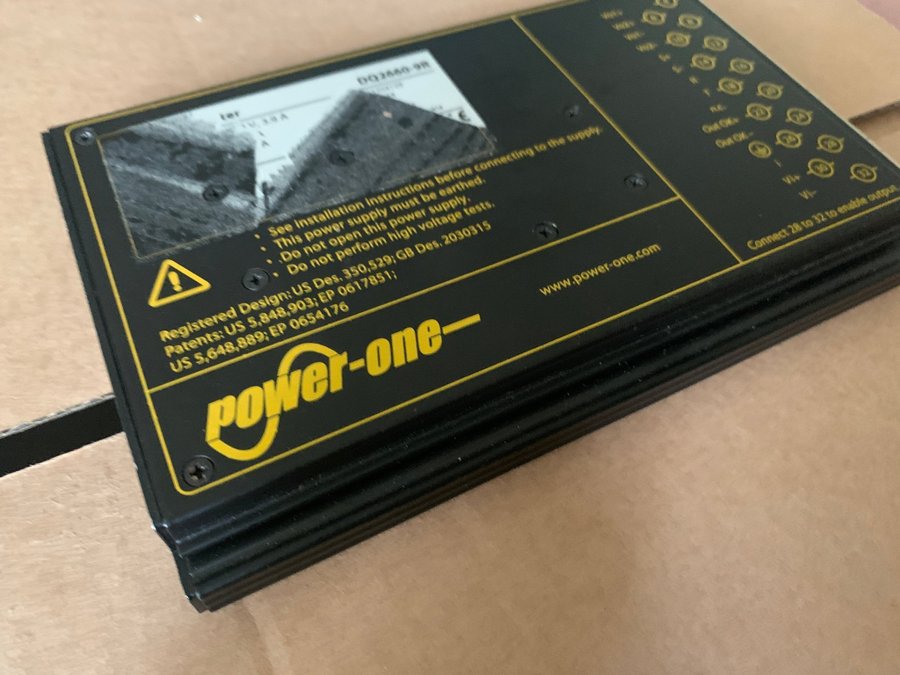

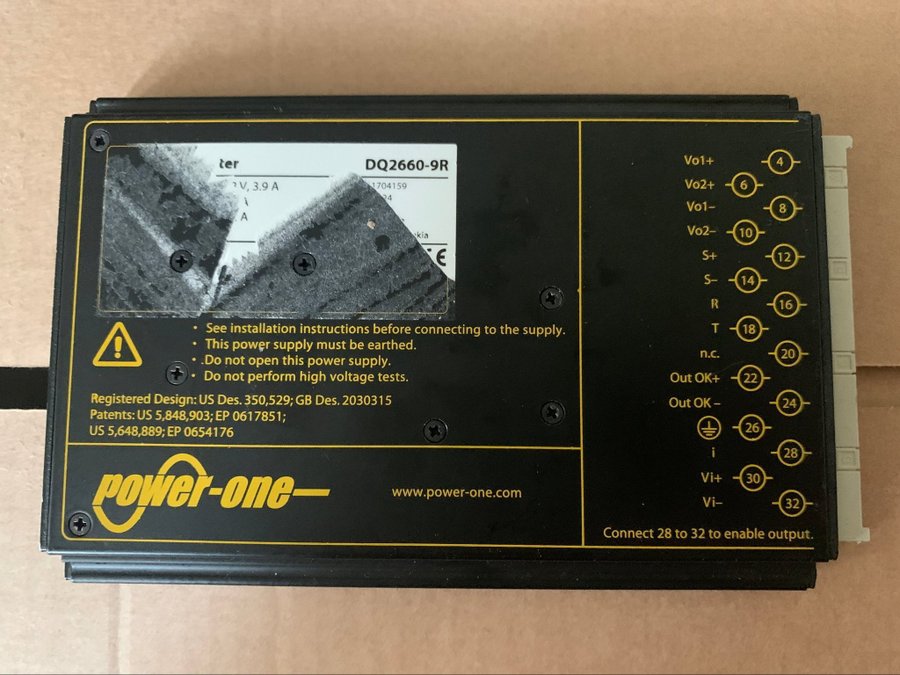

Power-One DQ2660-9R power supply. It has two outputs, each providing 24VDC at 5.1A, with a total power of 132W. The input voltage range is 43-100.8VDC. It is designed for rack mounting and features output voltage control input. Manufacturer Product Number: DQ2660-9R

Description: DC/DC CONVERTER 2X24V 132W

Detailed Description: Enclosed, Conformal Coated DC DC Converter 2 Output 24V & 24V 5.1A & 5.1A, 108V Input

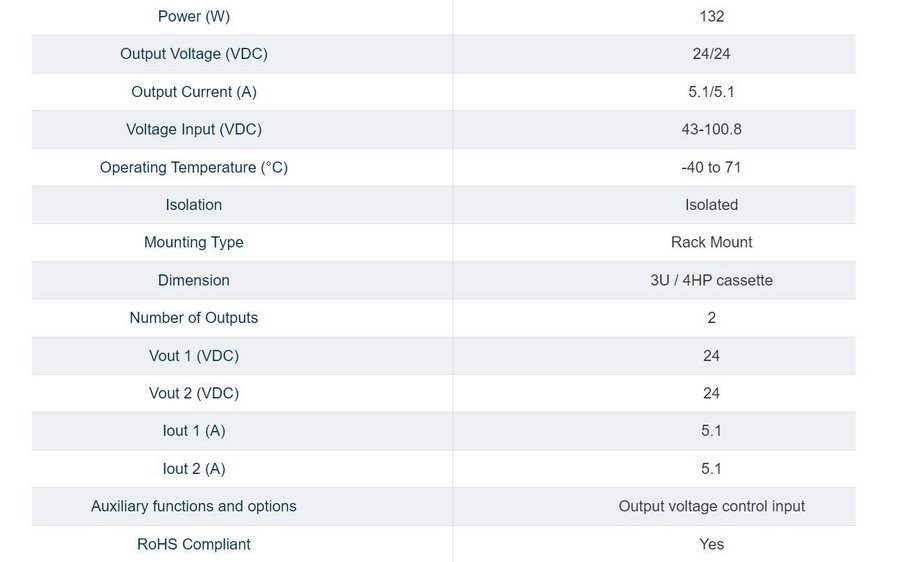

Power (W): 132
Output Voltage (VDC): 24/24
Output Current (A): 5.1/5.1
Voltage Input (VDC): 43-100.8
Operating Temperature (°C): -40 to 71
Isolation: Isolated
Mounting Type: Rack Mount
Dimension: 3U / 4HP cassette
Number of Outputs: 2
Vout 1 (VDC): 24
Vout 2 (VDC): 24
Iout 1 (A): 5.1
Iout 2 (A): 5.1
Auxiliary functions and options: Output voltage control input
RoHS Compliant: Yes
