Base Station Multi -Band (GSM, DCS, DECT, UMTS, WLAN)
Stopt 17 nov 12:31
Start prijs:
∙0 biedingen
SEK 50
SEK 55 met kopersbescherming.
Verzendkosten naar Nederland
SEK 78 GLS via DB Schenker
SEK 107 DHL
SEK 294 PostNord
Gecomb. verzending
1 dagKan opgehaald worden
Alle betalingen worden voor je veiligheid door Tradera gecontroleerd.
Directe betaling
Kopersbescherming geldt voor alle betaalmethoden
1/0
Beschrijving
Vertaald door

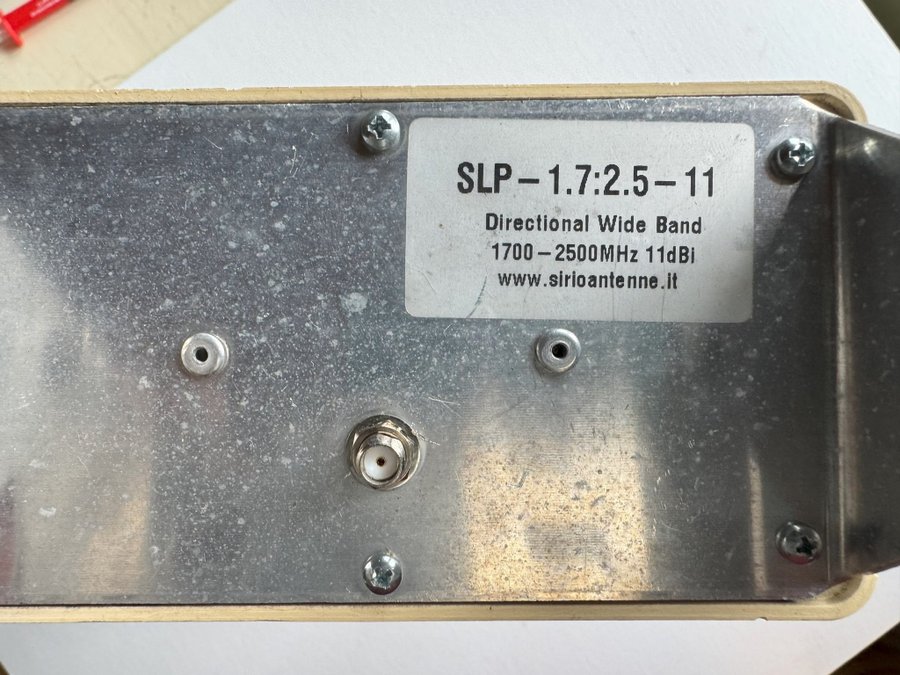

Riktanetnn 1700-2500mhz /SLP-1.7:2.5-11
FEATURES, FUNCTIONS AND SPECIFICATIONS:
ELECTRICAL DATA:
- Type: Log periodic dipole array
- Frequency range: 1700-2500 MHz for DCS,PCS,DECT,UMTS and WLAN systems
- Impedance: 50O unbalanced
- Radiation (H-plane): beamwidth at -3 dB = 58° frequency independent
- Radiation (E-plane): beamwidth at -3 dB = 46° frequency independent
- Radiation angle: 0°
- Front to back ratio: = 24 dB
- Polarization: vertical
- Gain: 11.1 dBi
- S.W.R. in bandwidth: = 2:1
- Max. power: 50 Watts (CW) at 50° C
- Feed system / position: direct DC-ground / vertex
- Connector: SMA-female bulchead
FEATURES, FUNCTIONS AND SPECIFICATIONS:
ELECTRICAL DATA:
- Type: Log periodic dipole array
- Frequency range: 1700-2500 MHz for DCS,PCS,DECT,UMTS and WLAN systems
- Impedance: 50O unbalanced
- Radiation (H-plane): beamwidth at -3 dB = 58° frequency independent
- Radiation (E-plane): beamwidth at -3 dB = 46° frequency independent
- Radiation angle: 0°
- Front to back ratio: = 24 dB
- Polarization: vertical
- Gain: 11.1 dBi
- S.W.R. in bandwidth: = 2:1
- Max. power: 50 Watts (CW) at 50° C
- Feed system / position: direct DC-ground / vertex
- Connector: SMA-female bulchead
