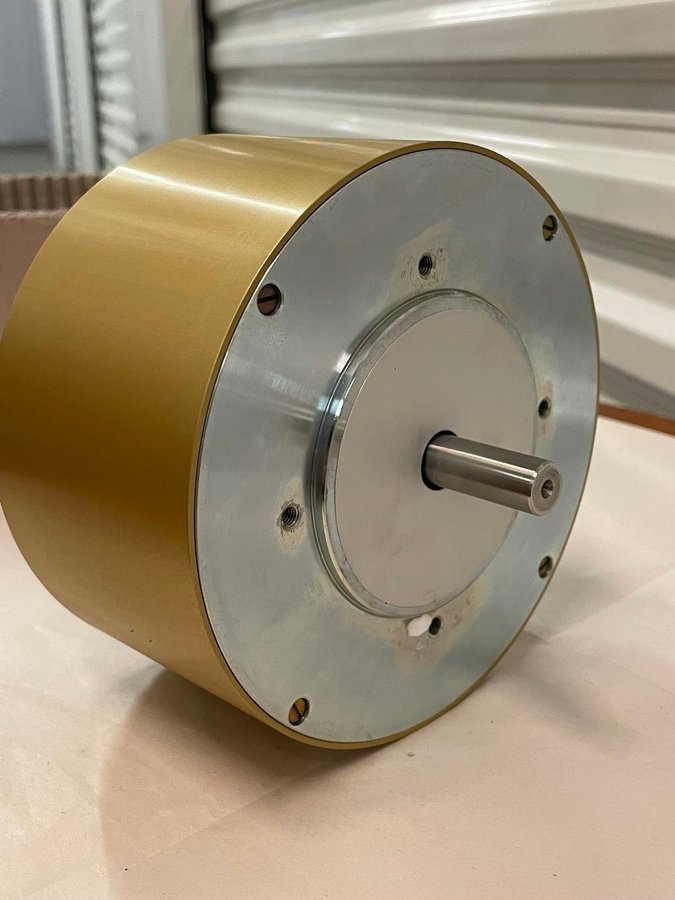

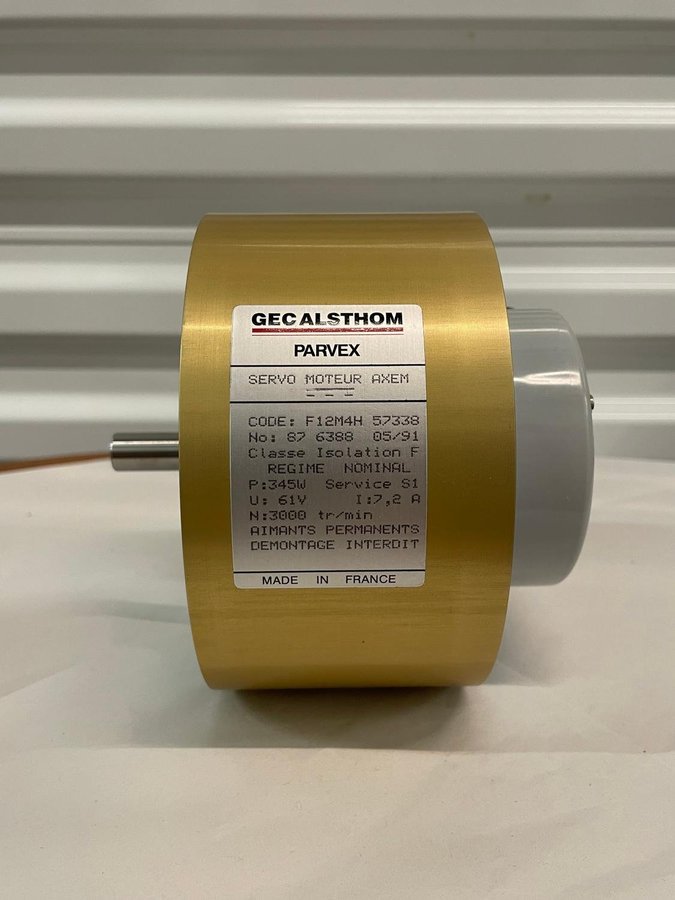

Oanvänt DC Servo Motor Axem F12M4H 57338 Low Inertia Disc Armature .
Power Output: 0.345kW
Nominal Torque: 1.1Nm.
Speed: 3000RPM.
Voltage: 61V.
Armature Current: 7.2A.
Enclosure Rating: IP44 Totally enclosed surface cooled.
Dimensions: 140mm Diameter x 84mm Long body excluding any options and main shaft.
Mounting: Flange mount on M5 tapped holes at 88mm pcd with 75mm dia register.
Weight is 5kg.
14 dagar ångerrätt.

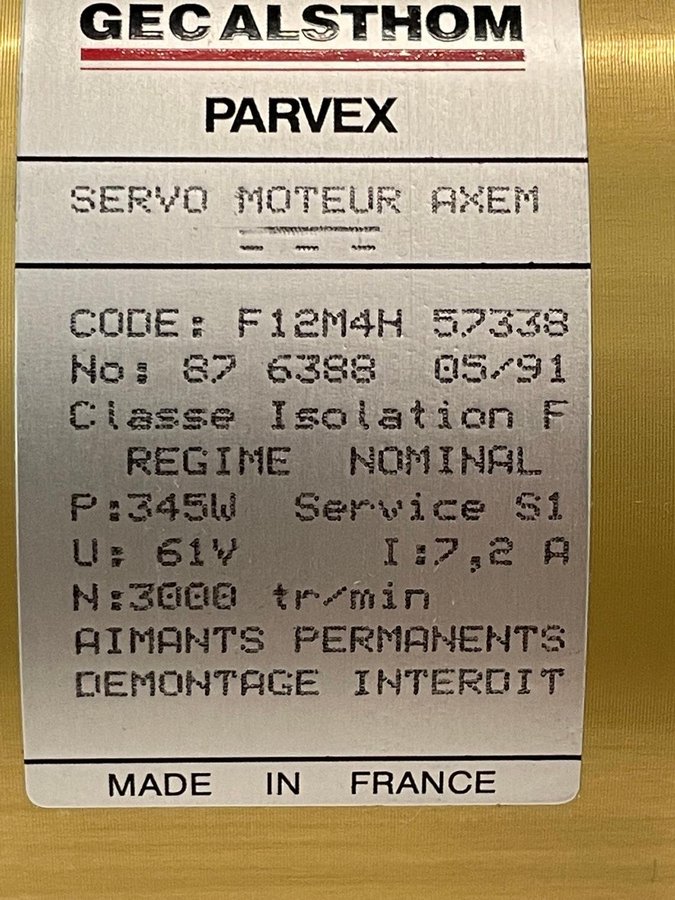

Part Number: F12M4H57338 (F12M4H-57338)
Made by Parker SSD Drives Parvex as the 'Axem' product range of 'Pancake' motors and sold under many other names including, BBC (Brown Boveri Company), ABB, ASEA, GEC Alsthom and Alstom.
Paypal can be used for customers from outside sweden - let me know if you want to pay with Paypal and ship to wich country and I get back with shipping cost. thanks alot. fel free to ask me any question ...
Power Output: 0.345kW
Nominal Torque: 1.1Nm.
Speed: 3000RPM.
Voltage: 61V.
Armature Current: 7.2A.
Enclosure Rating: IP44 Totally enclosed surface cooled.
Dimensions: 140mm Diameter x 84mm Long body excluding any options and main shaft.
Mounting: Flange mount on M5 tapped holes at 88mm pcd with 75mm dia register.
Weight is 5kg.
14 dagar ångerrätt.
Part Number: F12M4H57338 (F12M4H-57338)
Made by Parker SSD Drives Parvex as the 'Axem' product range of 'Pancake' motors and sold under many other names including, BBC (Brown Boveri Company), ABB, ASEA, GEC Alsthom and Alstom.
Paypal can be used for customers from outside sweden - let me know if you want to pay with Paypal and ship to wich country and I get back with shipping cost. thanks alot. fel free to ask me any question ...
Butik
ALSTHOM PARVEX GEC, SERVO MOTOR AXEM F12M4H (3 månader garanti)
Pris
24 000 kr
