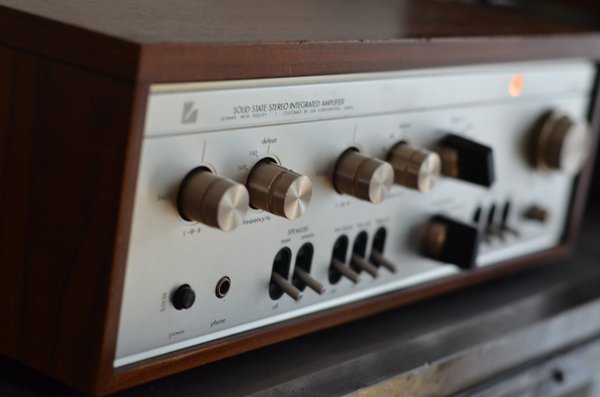

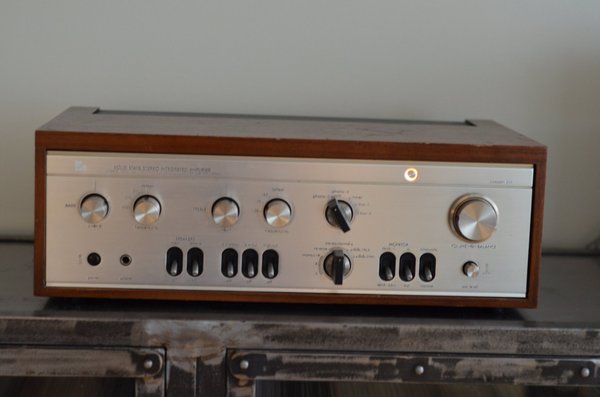

Vackra, integrerade kanonstärkaren Luxman L-507 kan bli din!
Fint kosmetiskt skick, bara visst slitage på trälådan. Spelar starkt och klart! Sladd funkar i jordade uttag
Avhämtning i Stockholm eller skickas med DHL/Schenker.

Luxman L-507: Stereo integrated amplifier from Japan
Continuous effective output: 50W + 50W (8 O, both channels operate simultaneously)
60W/60W (8 O, single-channel operation)
Total harmonic distortion factor: 0.03% or Less (8 O, 50W)
Cross modulation distortion factor: 0.04% or Less (8 O, 50W, 70 hz : 7 khz = 4 : 1)
Output bandwidth: 5 Hz to 50 kHz -3dB (0.1%)
Input Sensitivity/ Impedance: 580mV/50k O
Residual noise: 0.5 mV or less
Damping factor: 40 (8 O, 20 Hz to 20 kHz)AttachmentAttenuator (-18dB)
Main speaker switch
Remote speaker switch
Headphone jack
Preamplifier Section
Standard output voltage Pre out:580mV
Rec out: 100mV
Maximum output voltage
Pre out: 5V
Tuner : 100 mV (with input level set)
Aux1, 2 : 100 mv
Mic:2.4mV
Input impedance Phono1 : 50k O, 65k O, 90k O, switching
Phono2 : 65k O
Tuner : 50k O
Aux1, 2 : 50k O
Mic : 50k OSignal-to-noise ratioPhono1, 2 : 65 dB or more
Mic : 60 dB or more
Tuner, Aux1, 2 : 80 dB or more
Maximum allowable input
Phono : 300 mv (1 khz, R · M · S)Tone controlLUX System NF Type with Bending Point Switching
Low-pass curve point : 150 Hz, 300 Hz, 600 Hz
High-frequency bending point : 1.5 kHz, 3 kHz, 6 kHzFilterLow-cut : 30 Hz, 6dB/oct.
High Cut : 8 kHz, 6dB/oct.Low boost70HzAttachmentTape Monitor Switch (2 systems)
Damping switch
External dimensions: Width 450x Height 160x Depth 268 mm
Weight: 11kg
