Basic parameters:
Speed 0-300 mm/s,
Effective stroke 300 mm.
Pitch 5 mm (the pitch spindle moves 5 mm in one turn)
Good positioning accuracy: repeat the positioning accuracy of ± 0.03 mm.
Basic parameters: speed 0-300 mm/s, screw precision: C7; effective stroke 300 mm, pitch 5 mm (the pitch spindle moves 5 mm in one rotation)
Nema23 stepper motor: motor length: 56 mm; motor flange size: 57 mm; holding torque: 1.2 N.m; 2 phase; 3 A; wiring: red (A +), green (A-), yellow (B +), blue (B-).
CBX1605 ball thread drive: high accuracy; high-performance SFU1605, which can be mounted vertically.
Sliding block: length: 60 mm. The linear rail guide has 4 x M6 nuts on the moving block to secure the workpiece. The slider is made of 6030 aluminium and after oxidation deal.
Vänligen läs informationen under “Om” på min profil innan köp. Där hittar du info om betalning, leverans och villkor.
Basic parameters:
Speed 0-300 mm/s,
Effective stroke 300 mm.
Pitch 5 mm (the pitch spindle moves 5 mm in one turn)
Good positioning accuracy: repeat the positioning accuracy of ± 0.03 mm.
Basic parameters: speed 0-300 mm/s, screw precision: C7; effective stroke 300 mm, pitch 5 mm (the pitch spindle moves 5 mm in one rotation)
Nema23 stepper motor: motor length: 56 mm; motor flange size: 57 mm; holding torque: 1.2 N.m; 2 phase; 3 A; wiring: red (A +), green (A-), yellow (B +), blue (B-).
CBX1605 ball thread drive: high accuracy; high-performance SFU1605, which can be mounted vertically.
Sliding block: length: 60 mm. The linear rail guide has 4 x M6 nuts on the moving block to secure the workpiece. The slider is made of 6030 aluminium and after oxidation deal.
Vänligen läs informationen under “Om” på min profil innan köp. Där hittar du info om betalning, leverans och villkor.
Køb mere og spar på fragten
Samlet fragt
1 dag- 29 maj 10:36699 SEKKøb nu
- 29 maj 10:43599 SEKKøb nu
- 29 maj 10:43999 SEKKøb nu
- 30 maj 21:08279 SEKKøb nu
- 31 maj 22:13449 SEKKøb nu
- 31 maj 22:14449 SEKKøb nu
- 31 maj 22:14449 SEKKøb nu
- 31 maj 22:15449 SEKKøb nu
Andre har også set på
Du kan også lide dette

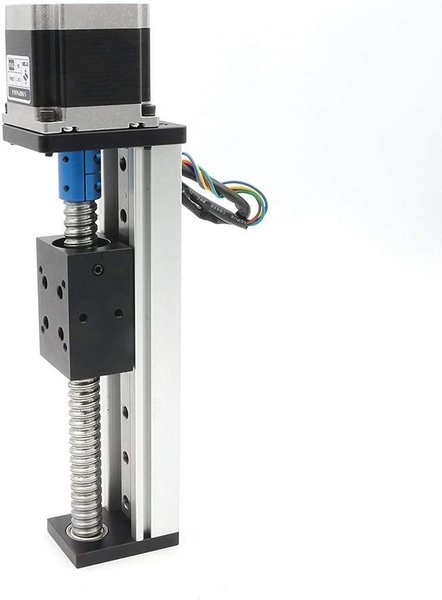

300 mm Travel CNC Linear Slide Table Drive CBX1605 Spindle NEMA23 Stepper Motor
