OBS! Fabriksny del från gammalt lager oftast i kartong.

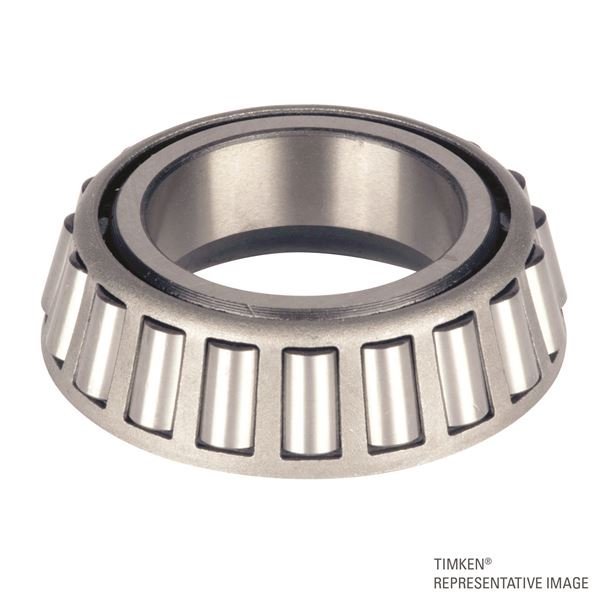

Cone Part Number

3774

Design Units

Imperial

Cage Type

Stamped Steel
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)1 47800 lbf213000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)2 12400 lbf55100 N

Dimensions

d - Bore

1.5625 in39.688 mm

B - Cone Width

1.1930 in30.302 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius3 0.14 in3.600 mm

da - Cone Frontface Backing Diameter

1.93 in49 mm

db - Cone Backface Backing Diameter

2.17 in55 mm

Ab - Cage-Cone Frontface Clearance

0.06 in1.5 mm

Aa - Cage-Cone Backface Clearance

0.06 in1.5 mm
a - Effective Center Location4
