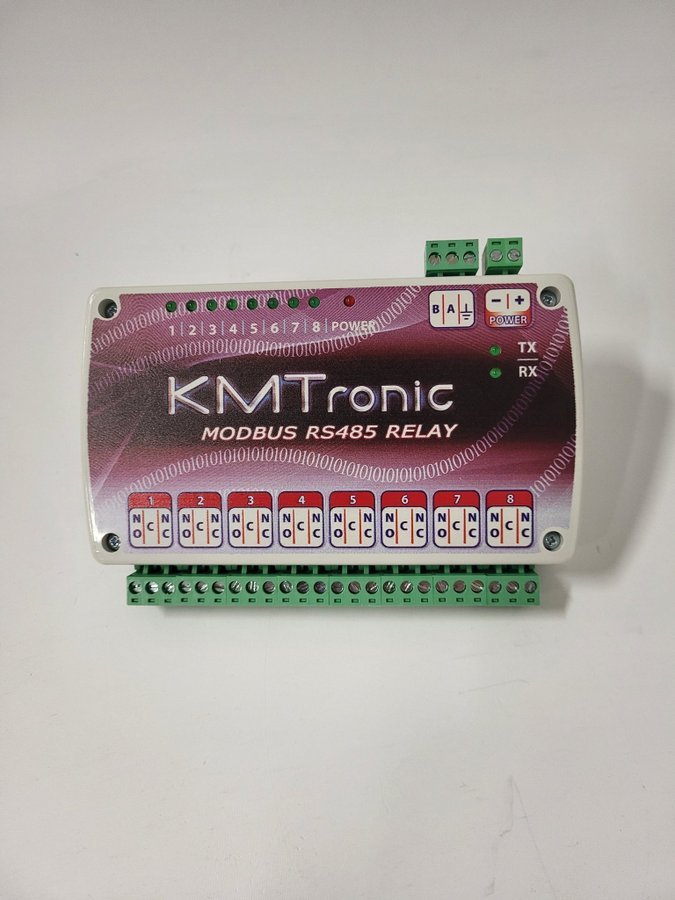

KMtronic LTD

Features:
- Fully assembled and tested.
- For 12V/24V DC 15A or 120V/220V AC at 10A max

Specifications:
Relay have Normally Open (NO) and
Normally Closed (NC) Contacts capable of switching max:
- 12VDC/15A
- 24VDC/15A
- 125VAC/15A
- 250VAC/10A

Supply:
12 volt DC / 1000mA external power supply

Communication:
8 Data, 1 Stop, No Parity
Baud rate : 9600

Commands:
FIRST channel commands:
OFF command : FF 01 00 (HEX) or 255 1 0 (DEC)
ON command : FF 01 01 (HEX) or 255 1 1 (DEC)
...
EIGHT channel commands:
OFF command : FF 08 00 (HEX) or 255 8 0 (DEC)
ON command : FF 08 01 (HEX) or 255 8 1 (DEC)

ID:
From 01 to15 manually through a DIP Switch
