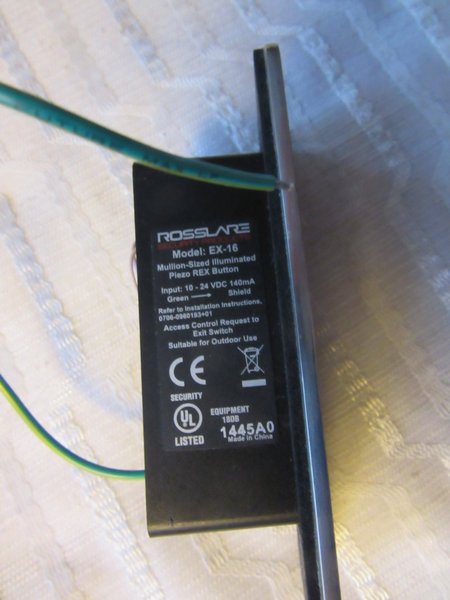

Rosslare EX-16 Strömbrytare switch
Fullt fungerande
vinyl-filmen kan tas bort från framsidan,borstad alu då

Rosslare's EX-06/EX-16 electronic switches enable the access control of
a magnetic lock or electric lock strike. The EX-06 and EX-16 are heavy
duty, illuminated, vandal resistant, analog timed switches, designed for
both indoor and outdoor use.
The piezoelectric switches generate a dry contact N.O. and N.C. relay
pulse simply by placing your finger on it, with no physical movement or
moving parts.
The EX-06 and EX-16 include features such as solid state Piezoelectric
Switch Technology, an adjustable output time of 1 to 60 seconds, and
field selectable illumination status, allowing you to select from a
number of vibrant color options to show relay ON or relay OFF status.

2.1 Electrical Characteristics
Operating Voltage Range 10 to 24 VDC
Output 1x2 A relay with two isolated dry contacts:
Normally Open (N.O.), Normally Closed (N.C.)
Jumper Selectable Relay Normally ON or OFF
Input Current, Max Less than 140 mA @ 24 VDC
Button Switch Life 1 billion cycles
Relay Life Expectancy 100,000 @ 2A 30 VDC
500,000 @ 1A 30 VDC
2.2 7BEnvironmental Characteristics
Operating Environment Indoor and outdoor (meets IP65)
Operating Temperature
Range
-35°C to 66°C (-31°F to 151°F)
Operating Humidity
Range
0 to 85% (non-condensing)
2.3 8BPhysical Characteristics
Material Stainless steel faceplate and button cap
Dimensions EX-06: 11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.26 in.)
EX-16: 11.4 x 4.4 x 3.2 cm (4.5 x 1.73 x 1.26 in.)
Weight EX-06: 238 g (8.40 oz.)
EX-16: 173 g (6.10 oz.)

Rosslare EX-16 Mullion Non-Sparking Tactile Switch

Â

Rosslare’s EX-16 is a high quality piezoelectric switch which is non-sparking, non-magnetic, corrosion resistant, and anti-vandal. Designed in mind of industrial and high-risk environmental requirements, the EX-16 will adapt well in mines, oil rigs & refineries, military installations and more. The switch can be used in many hi-demanding applications, from heavy machinery and mechanical operation panels, to access control systems or direct door control. It features solid state Piezoelectric Switch Technology generating a dry contact N.O. and N.C relay pulse simply by the touch of a finger, with no physical movement or moving parts.  This feature makes it extremely reliable, resilient, and robust yet it is encased in an elegant mullion design within a modern case suitable for use by architects and designers. You can select brilliant red, vibrant green or no illumination as a status indicator with the jumper selectable illumination status feature. The EX-16 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslare’s ISO 9001:2000 Certified Quality standards.

Â

Features

Â

        Advanced Soft Touch Piezoelectric Switch

        New weatherproof design water and dust proof, grease, oil and other chemical solvent repellent

        Circuit assembly encapsulation

        Vandal resistant

        Stainless steel mounting plate and tactile button with no moving parts

        Mullion-sized design

        Mounting Method Single Gang: Mounts directly to a US gang switchbox

        Operating Voltage range between 10 and 24 V

        Operating Temperature range: -40C to 63C

Â

Professional Grade Features

Â

        Non-sparking, non-magnetic, corrosion resistant

        Light ring status indicator and accidental activation hindrance

        Adjustable Output and Led indication Time of 1 to 60 seconds

        Output and indication Toggle option

        Jumper Selectable Illumination Status: Red, Green, or No Illumination

        One Form C Relay with two 5 Ampere outputs for separate application wiring: N.O. and N.C.

Fullt fungerande.
