Technics SH-GE90 Digital Sound Processor DSP

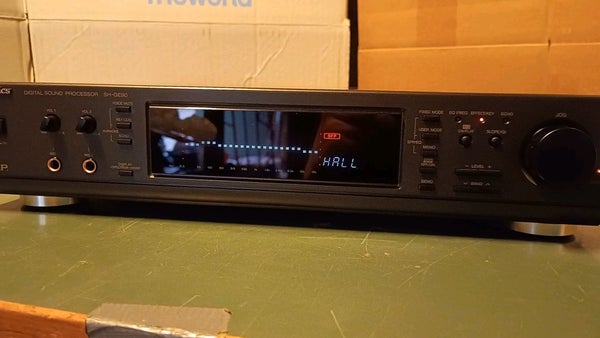

Technics SH-GE90 Digital Sound Processor (DSP) med inbyggd equalizer. Enheten har mikrofoningångar med volymkontroll, samt funktioner för karaoke och eko. Displayen visar spektrum och lägesinformation.

General:

Manufacturer: Technics
Model: SH-GE 90
Type: Digital Equalizer
Years of manufacture: 1992 - 2002
Color: Black
Remote control: no
Power consumption:
Dimensions: 430 x 92 x 290 mm
Weight: 3 kg
Original price: approx.: 499 DM

Connections:

Number of inputs: 4
Line-in
Tape-in
2 Mic-in
Number of outputs: 2
Tape-out
Line-out

Technical data:

Adjustable frequency bands: 24
Control range: +/- 12 dB
Frequency response:
Signal-to-noise ratio:
Distortion factor: 0.08%
High-quality sound processor with digital signal processing (DSP)
Digital parametric equalizer for selective boost and cut of three of 24 center frequencies.
Six presets with standard frequency responses (Heavy, Clear, Soft, Vical, Headphone-Stereo, Car-Stereo)
Six presets with sound field effects (hall, live, disco, church, stadium, theatre)
With karaoke/voice mute button, convenient pitch control and reverb/echo effects
Two microphone inputs with level controls
Spectrum analysis/frequency response display with three display modes

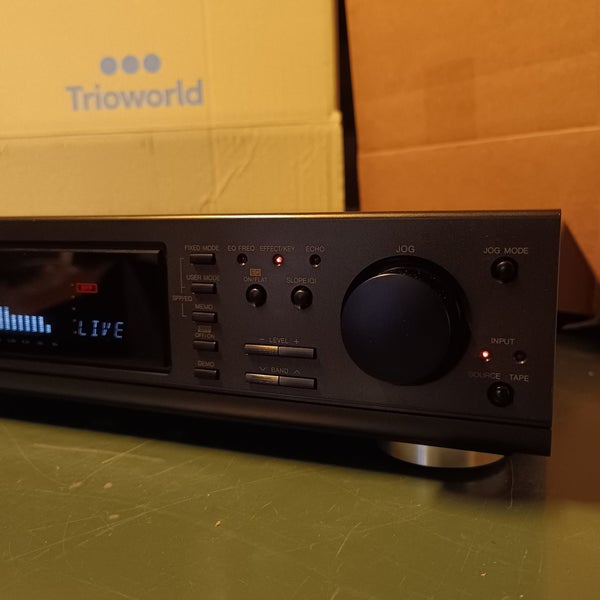

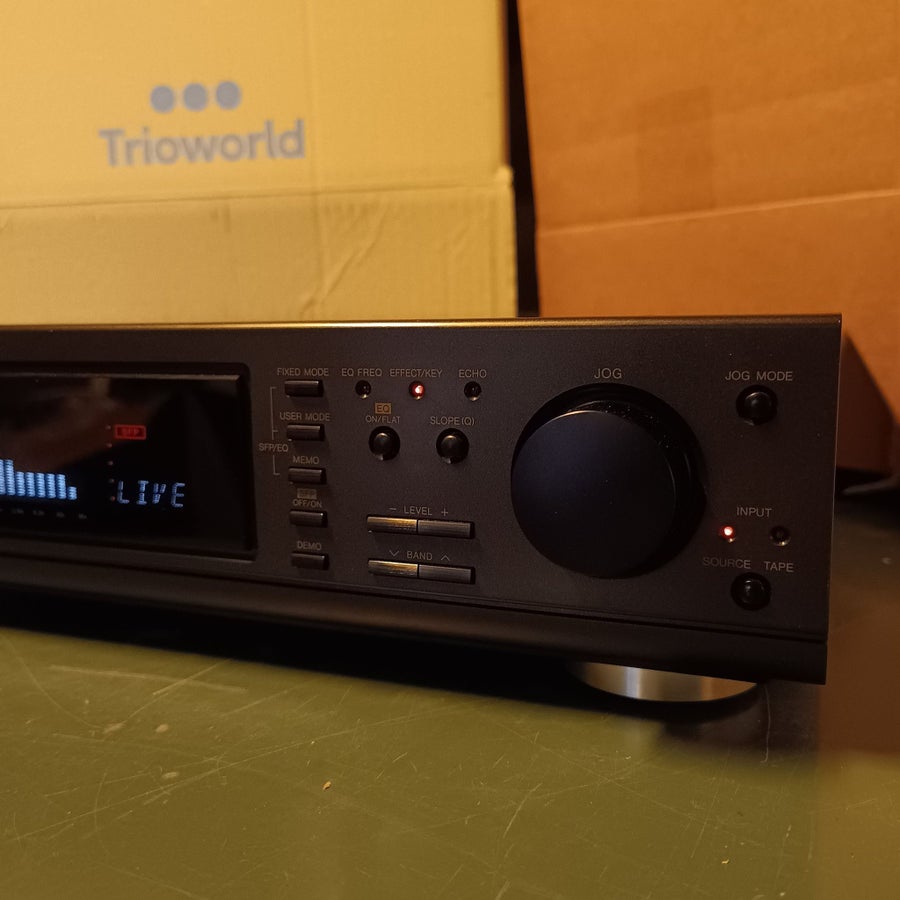

Easy control of sophisticated functions via easy-to-grip jog dial
Distortion factor at nominal output voltage: 0.08 % (1kHz)
External voltage spacing: 86dB
Band level control: + 12 dB, - 12 dB (2 dB steps)
Center frequencies:
LOW (31.5 Hz, 40 Hz, 50 Hz, 63 Hz, 80 Hz, 100 Hz, 125 Hz, 160 Hz, 220 Hz).
HIGH 1, 2: (315 Hz, 450 Hz, 630 Hz, 800 Hz, 1 kHz, 1.25 kHz, 1.6 kHz, 2.2 kHz, 3.15 kHz, 4.5 kHz, 6.3 kHz, 8 kHz, 10 kHz, 12.5 kHz, 16 kHz)
