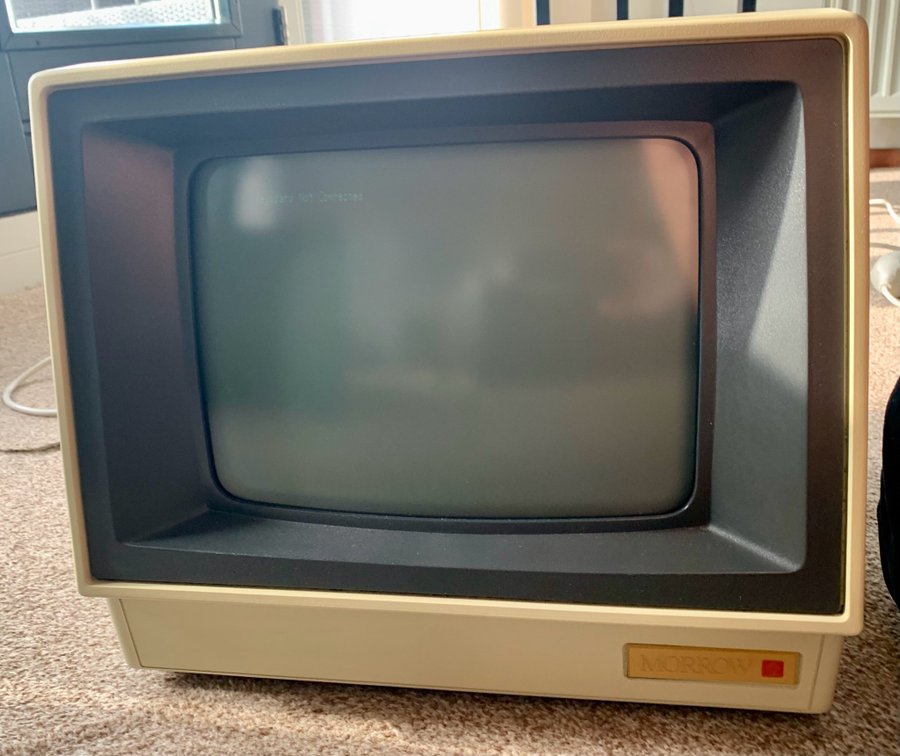

Morrow MDT-60 Video Display Terminal

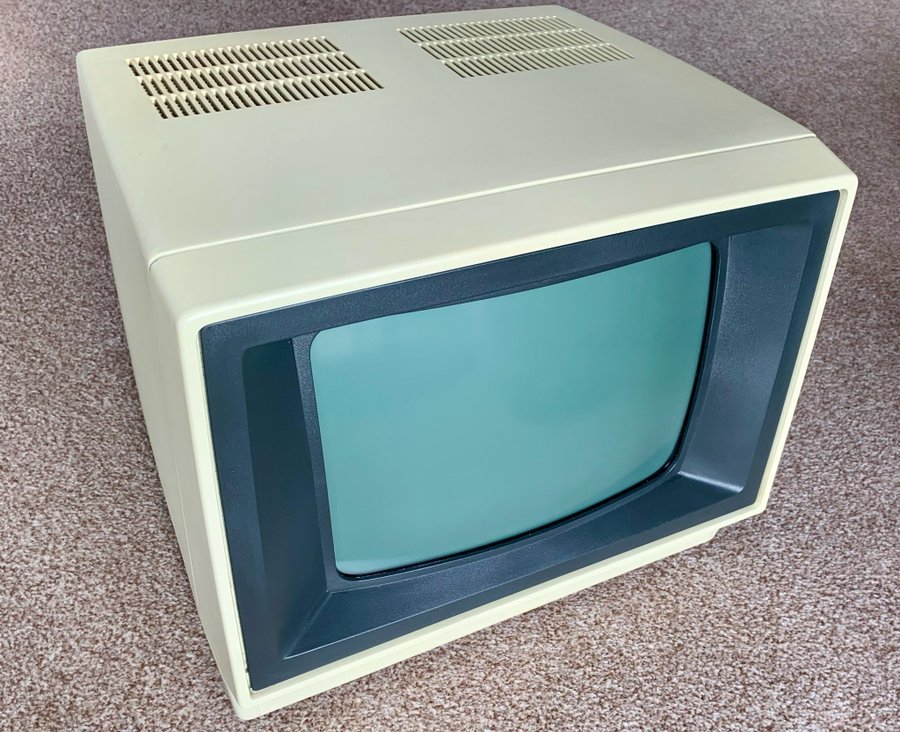

Computer 12” CRT terminal with green phosphor.
Extremely Rare! 1983

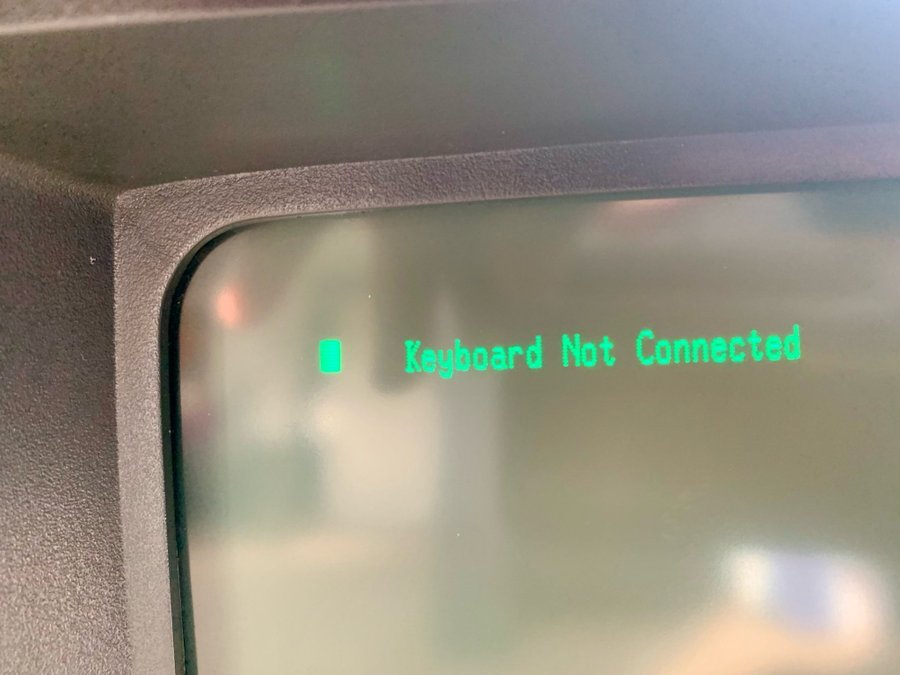

Although I don't have a keyboard, the terminal is tested internally in modules and any errors are displayed on the screen.
In this case, ”no keyboard connected”.
This shows that the terminal is in order.
Specifications for the Morrow MDT-60 Video Display Terminal.
Manufacturer / Model Morrow Designs — MDT-60
Introduced 1983 !
Display 12-inch (30.5 cm) diagonal, non-glare CRT with green P31 phosphor
Refresh Rate 60 Hz, non-interlaced
Display Format 80 columns × 24 rows of characters per screen page
Character Set / Graphics Full 128 ASCII characters; includes additional special graphics and foreign characters — about 45 foreign characters + 64 graphics characters (including line-drawing)
Character Dot Matrix / Size 8×10 dots per character; cell size roughly 9×12 (dot cell)
Visual Attributes Normal, half (reduced) intensity (dim), reverse video, underline
Keyboard Detachable 91-key typewriter-style keyboard; 14-key numeric keypad; 16 function keys

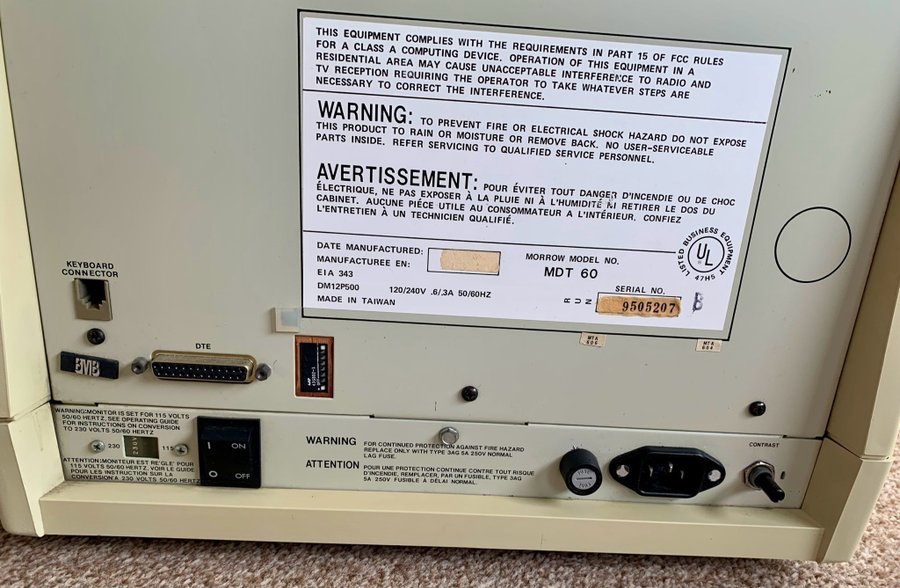

Interface / Communication RS-232C asynchronous serial interface
Baud Rates Supported Four selectable rates: 300, 1200, 9600, 19200 baud
Data Format 8 data bits; parity (even / odd / none); 2 stop bits; start bit etc.
Power Supply Regulated; switchable for 115 VAC / 60 Hz or 230 VAC / 50 Hz input
Power Consumption ~ 50 Watts typical operation
Dimensions (Monitor only) Width ~ 16.5 in (˜ 42.0 cm) × Depth ~ 14.6 in (˜ 37.0 cm) × Height ~ 12.2 in (˜ 31.0 cm)
Weight Approx. 24.2 lbs (˜ 11.0 kg)
Environment Operating Range Temperature: 10 °C to 40 °C;
Humidity: 10% to 85% (non-condensing)
You can find the official user manual as PDF of the Morrow MDT-60 on Bitsavers:
MDT-60 User's Manual (1983) — PDF: https://www.bitsavers.org/pdf/morrow/terminal/MDT60_Users_Manual_1983.pdf
The Service Manual for the MDT-60 is also available via Manualzz.
The terminal comes with a power cord and the schematics
