KIT FOR LOADER INCLUDE:

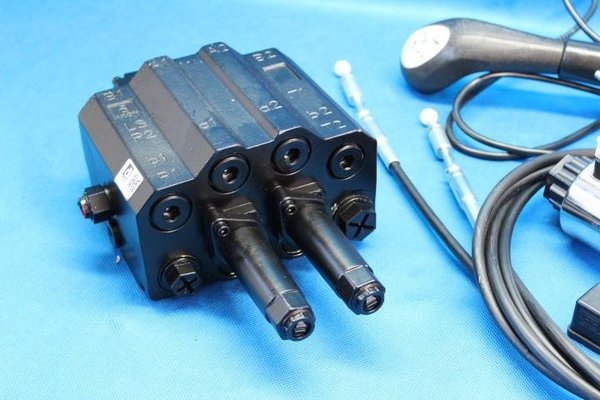

-VALVE WITH FLOW 90 L/MIN

-CONTROL JOYSTICK WITH BUTTON

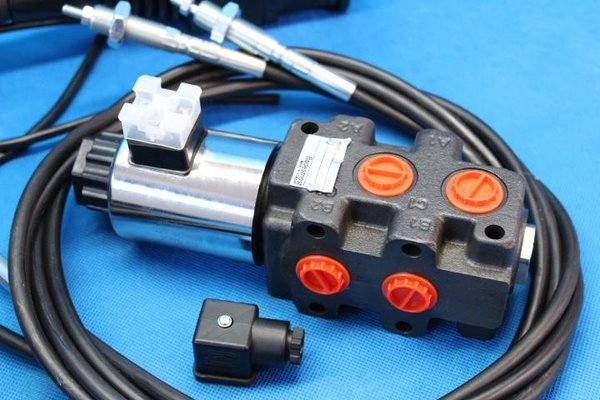

-SOLENOID (3RD SECTION) VALVE 12 V FLOW 90 L/MIN

-2 CABLES 2 METERS (ALSO WE CAN CHOOSE 3 METERS)

Let us know your loader Make/Model /Year if you are not sure

WITH THIS KIT YOU CAN CONTROL 3 SECTIONS USING ONE JOYSTICK WITH BUTTON

HYDRAULIC KIT FOR JOHN DEERE , CASE , ZETOR , URSUS, FORK LIFT, LOADER

VALVE TECHNICAL DATA MAX. PRESSURE SETTINGS
MAX. WORKING PRESSURE: 300 BAR
TANK LINE PRESSURE: 10 BAR
MAIN RELIEF VALVE PRESSURE SETTINGS: UP TO 300 BAR STANDART PRESSURE SETTING: 200 BAR@16 L/MIN PORT RELIEF VALVE PRESSURE SETTINGS: UP TO 300 BAR
FLOW RATES MAX. FLOW RATES: 90 LT/MIN
SPOOL LEAKAGE: MAX. 4 CM3/MIN@100 BAR WITH 32CST OIL
FILTRATION: CONTAMINATION LEVEL EQUAL TO OR BETTER THEN 18/14 ACCORDING TO ISO 4406

VISCOSITIY; HYDRAULIC FLUID VISCOTIY RANGE AT CONTINUOUS OPERATION: 10-400 MM^2/S(CST)

TEMPRATURE RANGE; HYDRAULIC TEMPERATURE RANGE FOR CONTINUOUS OPERATION -15°C-+80°C

SPOOL STROKE; -6+6/+12,5 MM OPERATION FORCE; SPRING CENTRED: 14 KG

DETENT IN: 38 KG

DETENT OUT: 8 KG
WEIGHT; 13,3 KG

---------------
