Stereo direktbox Mackie MDB-1A ny i kartong. Kostar 1349kr på Musikbörsen tex.

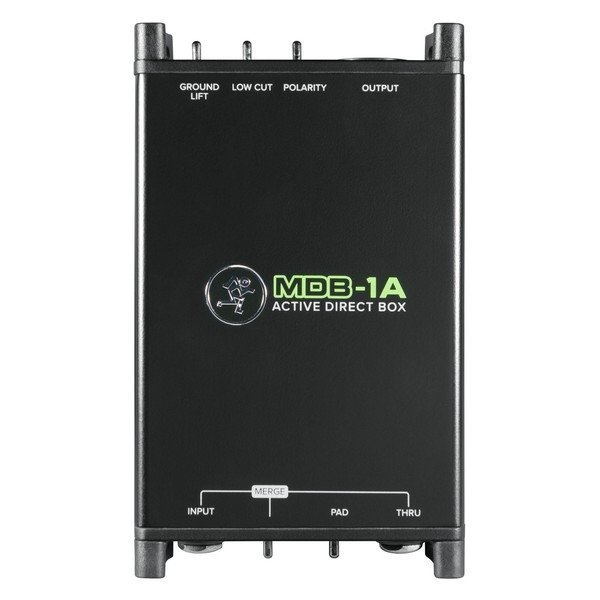

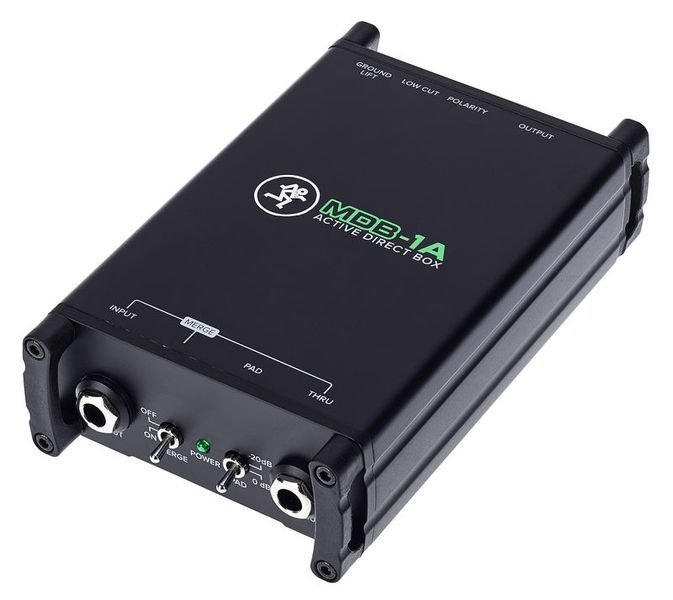

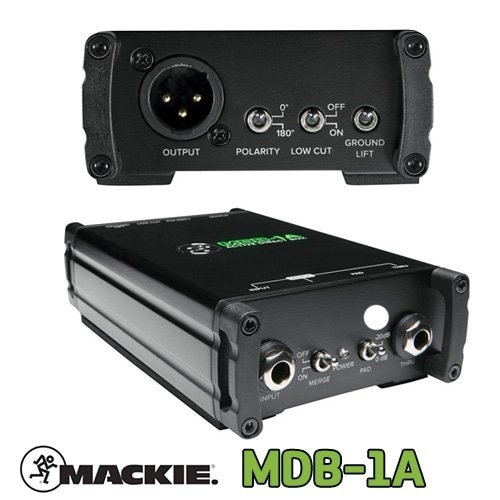

Mackie MDB-1A

Balansera upp dina instrumentsignaler och förläng räckvidden tack vare Mackie MDB-1A DI Box. Denna direktbox har en 6,3 mm högimpedans-ingång och skickar ut en balanserad signal via XLR. En Input Pad på 20dB säkerställer störningsfri prestanda vid anslutning till högnivåkällor. Merge-switch tillåter anslutning av stereokällor som sedan förvanldas till mono vid utgången, perfekt för stereokällor som tangentbord och mediaspelare.
Strömställare med låg klippning och polaritetBalanserad XLR-utgångskontakt med jordad anslutningHögimpedans 1/4 ”ingång med Thru-utgångAktiva kretsar ger högre utrymme för extremt lågt brus och distorsionsfri prestandaDrivs via 48v fantommatning
Mackie MDB-1A

The Mackie MDB-1A Active DI Box utilises active circuitry for higher headroom and superior noise/distortion performance. The MDB-1A is perfect for instruments with active pickups or preamps, and features a 1/4'' high-impedance input with a Thru output, as well as a -20dB pad. The MDB-1A features an innovative 'Merge' switch, which allows you to connect stereo sound sources by converting the Thru socket into a second input, the two inputs are then summed into a mono output. Conveniently powered via 48V Phantom Power, this compact DI box boasts a wide array of powerful and versatile features including Low Cut and Polarity switches, and Mackie's highly-regarded road-ready reliable construction.Merge Switch
The MDB-1A features an innovative Merge switch. This switch allows you to connect stereo sources, such as keyboards, synthesizers, and media players, straight into the DI box. The switch works by converting the Thru socket into a second input, providing you with two input channels on the box. The box then sums both inputs into a single mono output via the XLR socket. The Merge switch provides you with an incredibly versatile DI solution in a compact and rugged format.Features
Active circuitry provides higher headroom for reduced noise and distortion
High-impedance 1/4'' input with Thru output

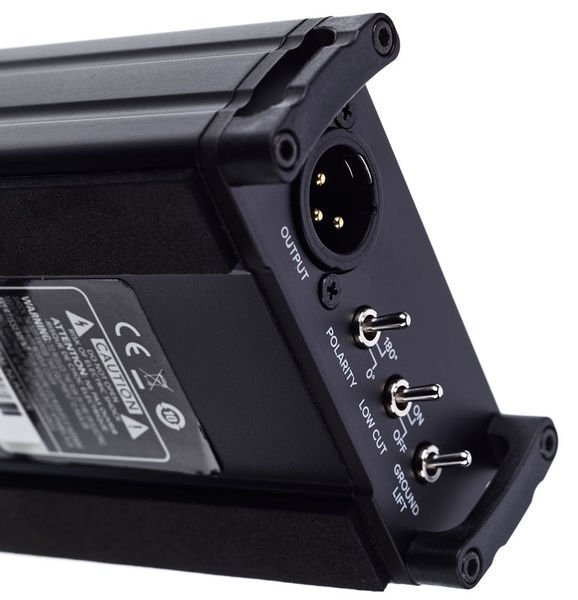

Balanced XLR output with Ground Lift
Switches for Low Cut and Polarity

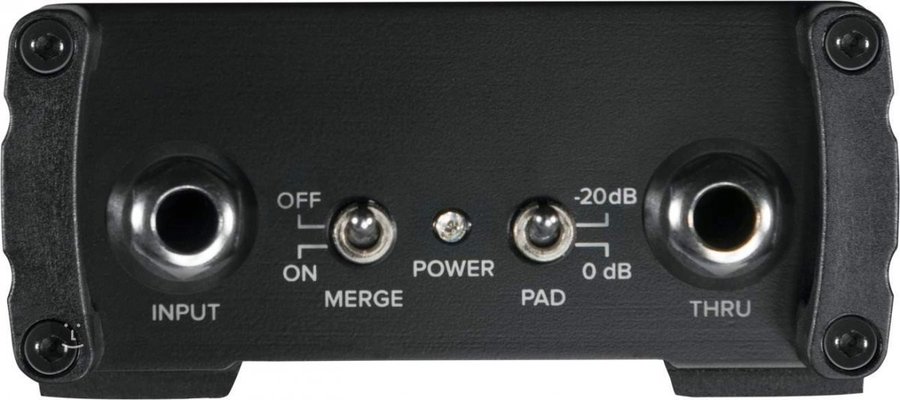

Merge switch - Converts the Thru jack into a second input, the MDB-1A will then sum both the standard input and the 'Merged' Thru input into a single mono output, perfect for connecting stereo sources such as keyboards and synthesizers
-20dB pad for distortion-free performance when connecting to high-level sources
Powered via 48V Phantom Power
Mackie's renowned 'Built-Like-A-Tank™' construction

Multi-Channel Unit No
Channels 1
Active / Passive Active
19” No
Pad switchable Yes
Gnd/Lift switchable Yes

Active Stereo Direct BoxSuitable for stereo sources such as keyboards, media players, etc.High impedance 6.3 mm jack input with thru output and 20 db padBalanced XLR output with ground lift, low cut and polarity switchMerge switch48 V phantom power supplyDimensions: 36 x 86 x 147 mmWeight: 400 g
