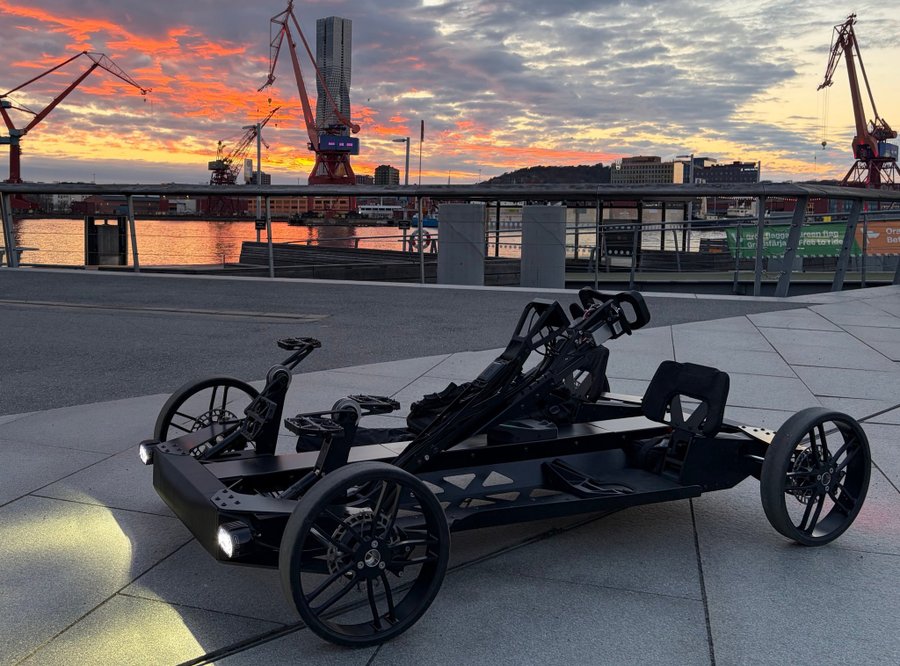

Custom Designed & Built Pedelec Cycle

Designed and manufactured by myself, sold as a project kit and selling only to finance building the next iteration.

Designed and built in accordance with EN15194, the same as an electrically assisted cargobike.

What you get:
Support from myself, for life, for drawings, CAD data, advice etc (I need this to go to a good home)

If you like, I can also provide over 3000 photos of the entirety of this project over the 8 years as well as updates on how the new design is going!

250W motor, 1kW peak and pedal assist only using a force sensor (Max 25km/h)
Single speed
0.5kW LiPo Batteries with smart charger
VESC motor controller and display
Wireless phone charging and 12V transformer/circuit (For lights also)

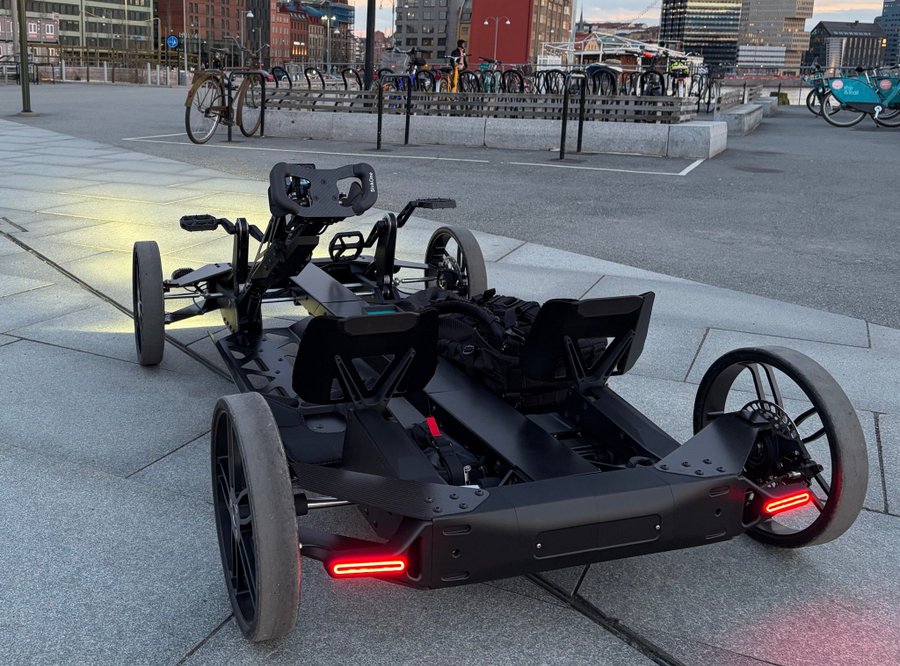

2x Supernova M99 Pure + Headlights and 2x M99 TL2 pro rear lights (integrated brake lights)
100+ custom designed and CNC machined components
50+ custom designed and 3D printed components
9 custom waterjet cut, folded and powdercoated sheet metal components
Custom wiring hardness, tires and seat cushions (hand stitched by me)

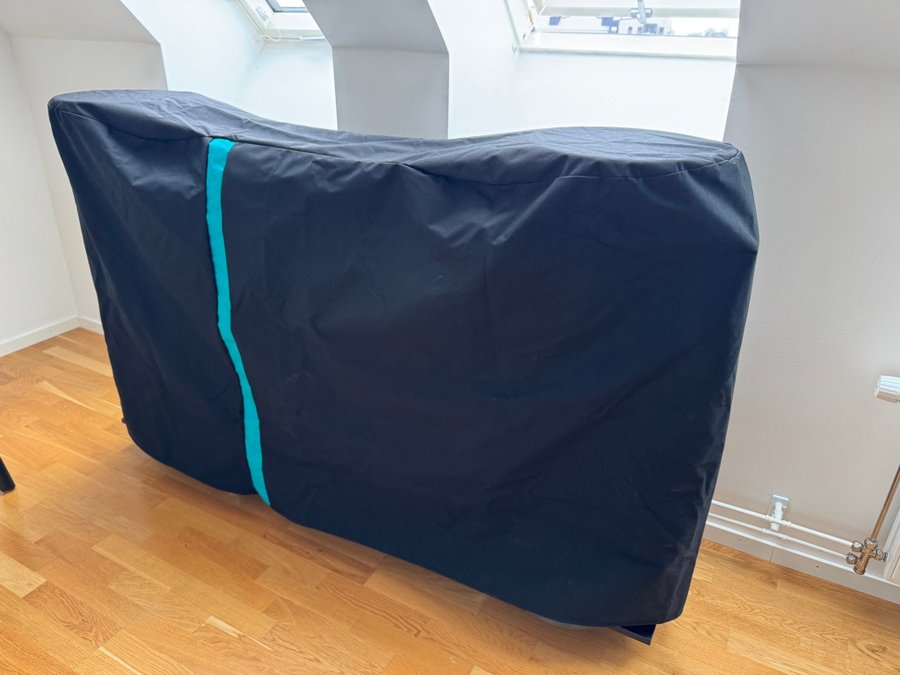

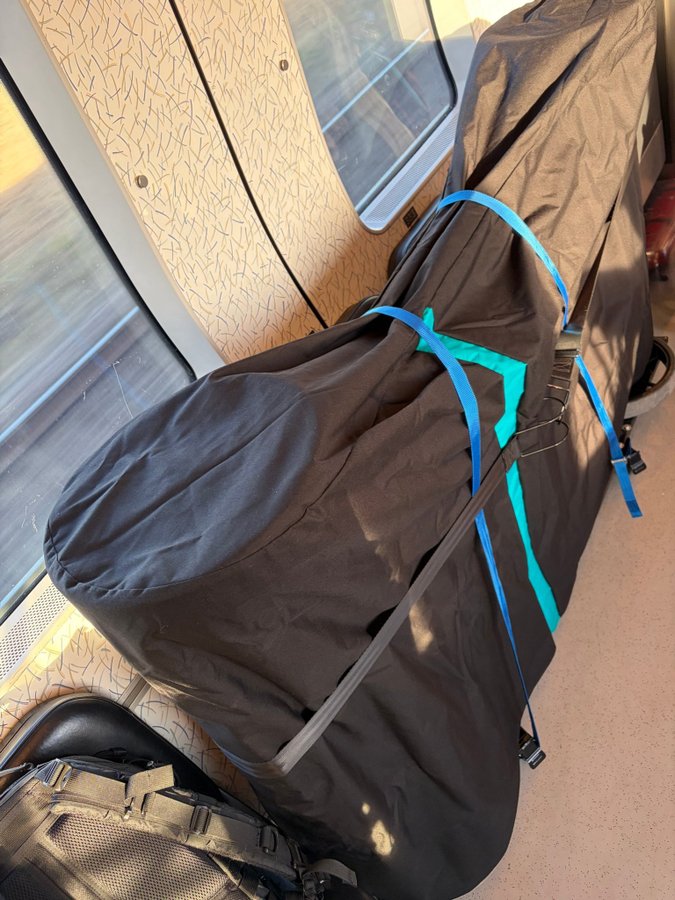

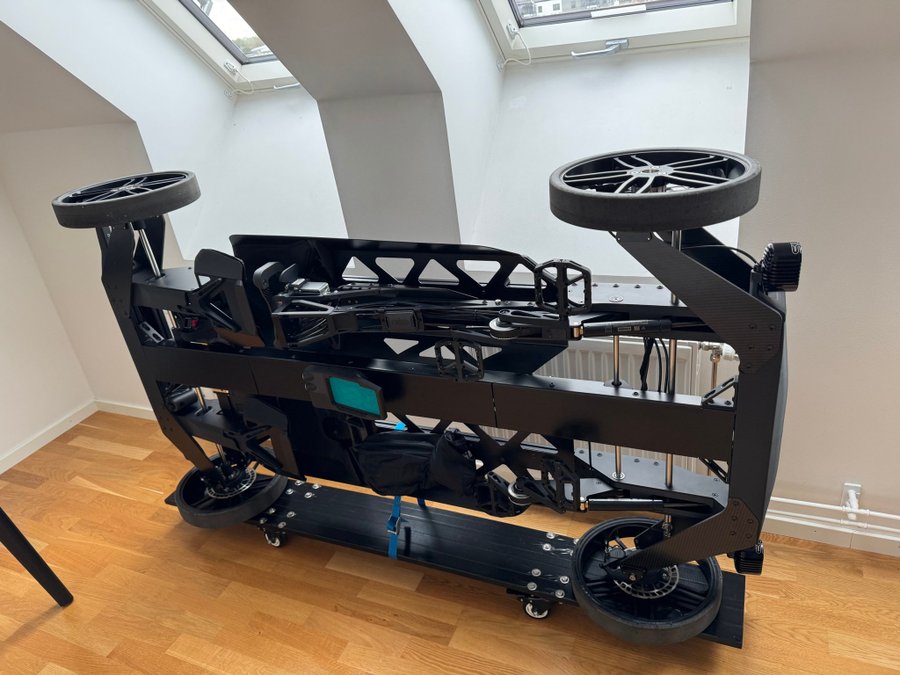

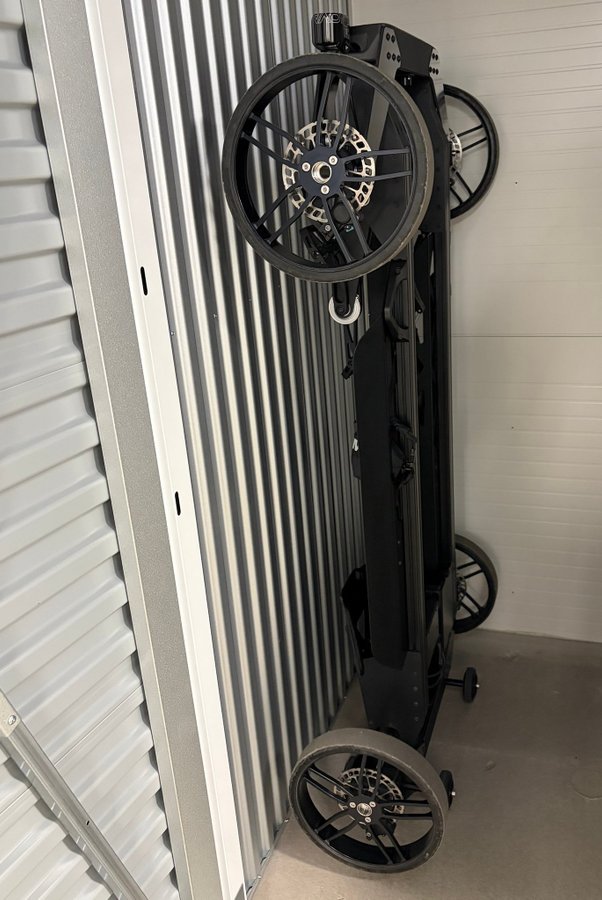

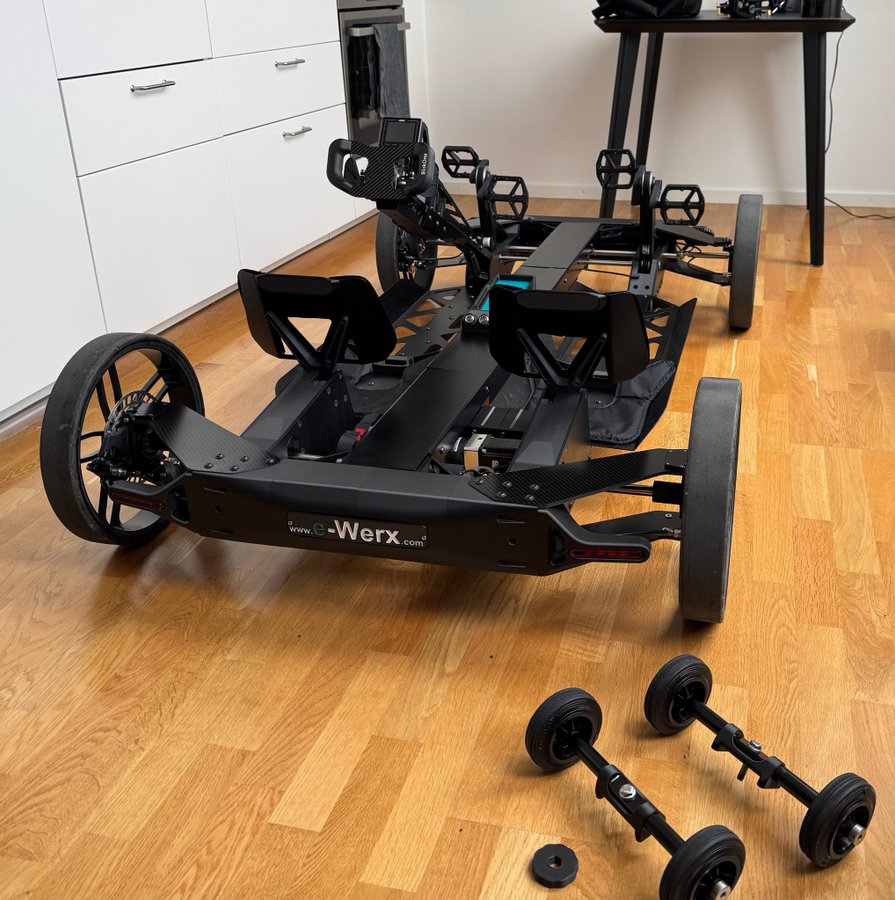

Vertical parking with removable skate wheels plus additional carriage for horizontal storage and custom sewn nylon cover

It took 8 years of trial and error to get to this point and over one year to design and build this version, anyone that buys this is helping me take things further and gets a unique, one of a kind custom creation.

Would be very cool to catch up and go on tandem rides with the buyer and the new one I build next!
