Solis S5-GR3P10K Inverter
Stopt 29 nov 09:07
Leidend bod
∙
SEK 500
SEK 527 met kopersbescherming.
Pick up in
Alle betalingen worden voor je veiligheid door Tradera gecontroleerd.
Directe betaling
Kopersbescherming geldt voor alle betaalmethoden
1/0
Beschrijving

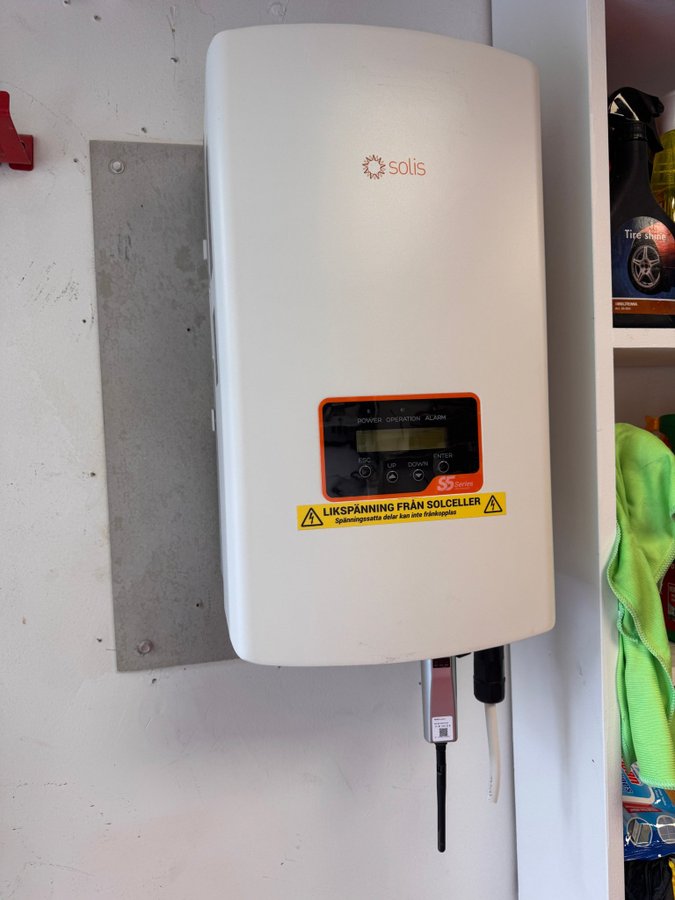

Solis inverter modell S5-GR3P10K.

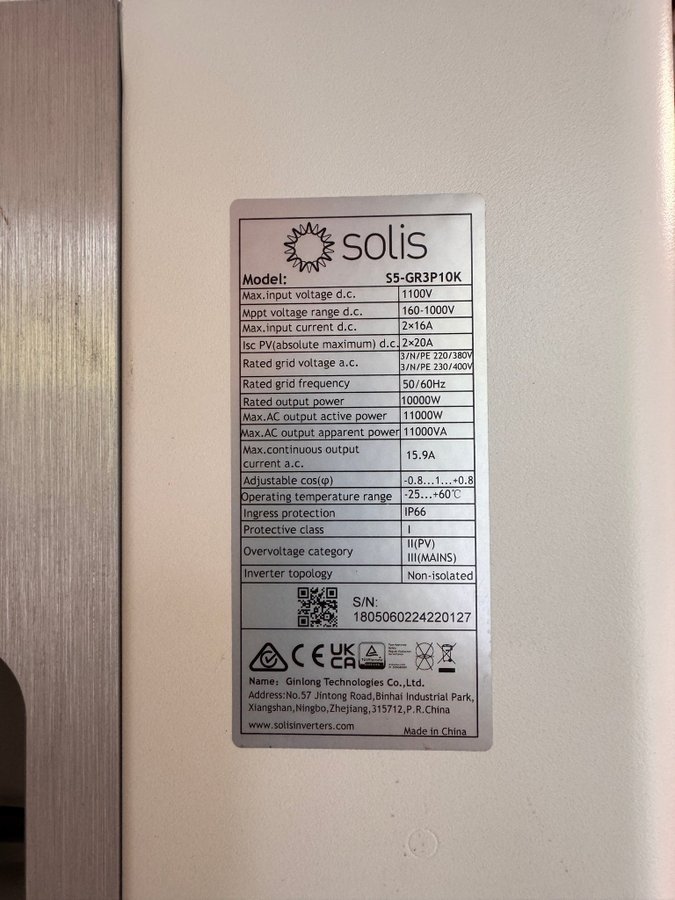

Specifikationer:
Max. input voltage d.c.: 1100V
Mppt voltage range d.c.: 160-1000V
Max. input current d.c.: 2x16A
Isc PV (absolute maximum) d.c.: 2x20A
Rated grid voltage a.c.: 3/N/PE 220/380V, 3/N/PE 230/400V
Rated grid frequency: 50/60Hz
Rated output power: 10000W
Max. AC output active power: 11000W
Max. continuous output apparent power: 11000VA
Max. continuous output current a.c.: 15.9A
Adjustable cos(f): -0.8...+1...+0.8
Operating temperature range: -25...+60°C
Ingress protection: IP66
Protective class: I
Overvoltage category: III(PV), III(MAINS)
Inverter topology: Non-isolated
Specifikationer:
Max. input voltage d.c.: 1100V
Mppt voltage range d.c.: 160-1000V
Max. input current d.c.: 2x16A
Isc PV (absolute maximum) d.c.: 2x20A
Rated grid voltage a.c.: 3/N/PE 220/380V, 3/N/PE 230/400V
Rated grid frequency: 50/60Hz
Rated output power: 10000W
Max. AC output active power: 11000W
Max. continuous output apparent power: 11000VA
Max. continuous output current a.c.: 15.9A
Adjustable cos(f): -0.8...+1...+0.8
Operating temperature range: -25...+60°C
Ingress protection: IP66
Protective class: I
Overvoltage category: III(PV), III(MAINS)
Inverter topology: Non-isolated
