MSI Z77MA-S01 mATX moderkort med 12GB DDR3 Corsair RAM.

Inkluderar I/O-plåt.

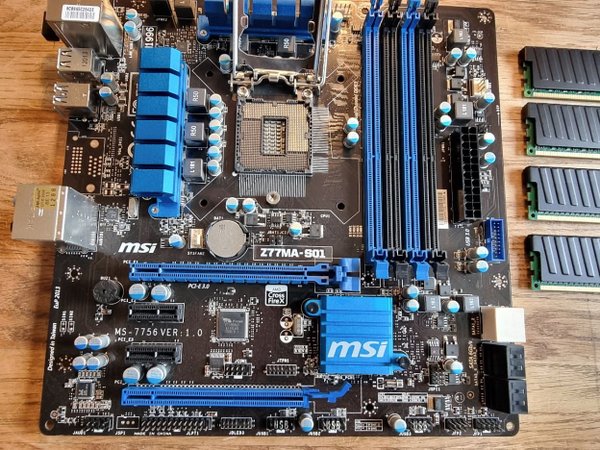

Moderkort:
MSI Z77MA-S01 mATX

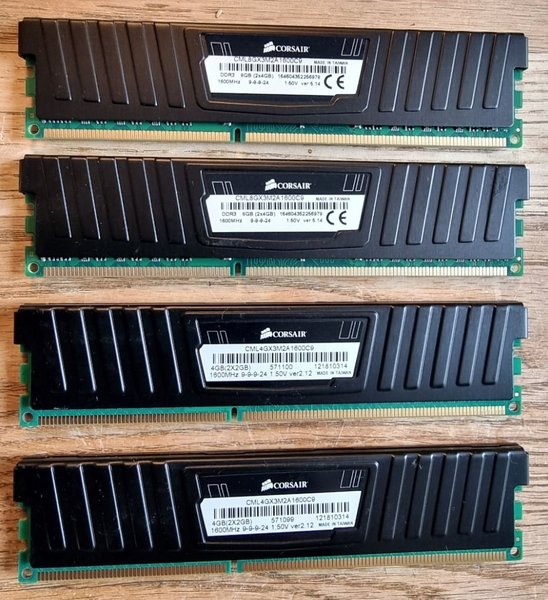

RAM:
4 x Corsair DDR3 minnen (totalt 12GB)
CML8GX3M2A1600C9 (2x4GB)
CML4GX3M2A1600C9 (2x2GB)
CPU

• Supports 3rd Gen Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors for LGA 1155 socket

Chipset

• Intel® Z77 Chipset

Main Memory

• Support four DDR3 DIMMs 2667*(OC)/ 2400*(OC)/ 2133*(OC)/ 1866*(OC)/1600/ 1333/ 1066 DRAM (32GB Max)
- Supports Dual-Channel mode

Slots

• 2 x PCIe 3.0 x16 slots
- PCI_E1 supports up to PCIe 3.0 x16 speed
- PCI_E3 supports up to PCIe 3.0 x8 speed
• 2 x PCIe 2.0 x1 slots

On-Board SATA

• SATAIII controller integrated in Intel® Z77 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by Z77

• SATAII controller integrated in Intel® Z77 chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports (SATA3~6) by Z77

• RAID
- SATA1~6 support Intel® Rapid Storage Technology enterprise (AHCI/ RAID 0/ 1/ 5/ 10) by Intel® Z77

USB 3.0

• 2 x USB 3.0 rear IO ports by Intel® Z77
• 1 x USB 3.0 onboard connector by Intel® Z77

Audio

• Chipset integrated by Realtek® ALC892
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

• Supports one PCI Express LAN 10/100/1000 Fast Ethernet by Realtek® 8111E

Internal I/O Connectors

- ATX 24-Pin power connector
- 4-pin ATX power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Clear CMOS jumper
- 2 x Serial ATAIII connectors
- 4 x Serial ATAII connectors
- 3 x USB 2.0 connectors
- 1 x USB 3.0 connector
- 1 x Serial port connector
- 1 x TPM Module connector
- 1 x Front Panel Audio connector
- 1 x Front Panel connector
- 1 x Chassis Intrusion connector
- 1 x Voice Genie connector (optional)
- 1 x MultiConnect Panel connector (optional)

Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse port
- 6 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack

Dimension

• 22.4cm(L) x 22.4cm(W) Micro-ATX Form Factor
