Planet FSD-604HP PoE+ Switch

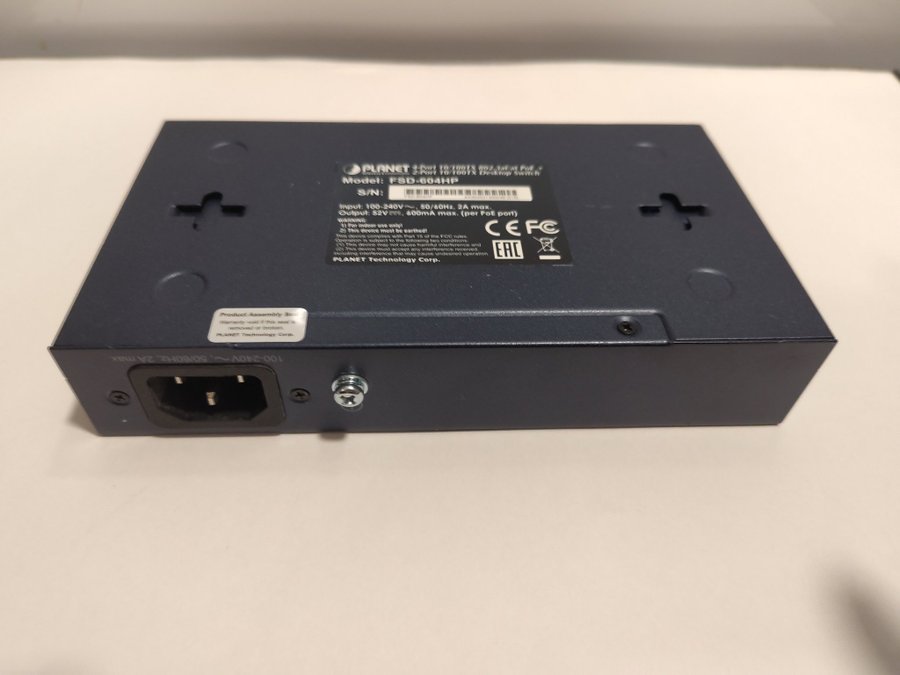

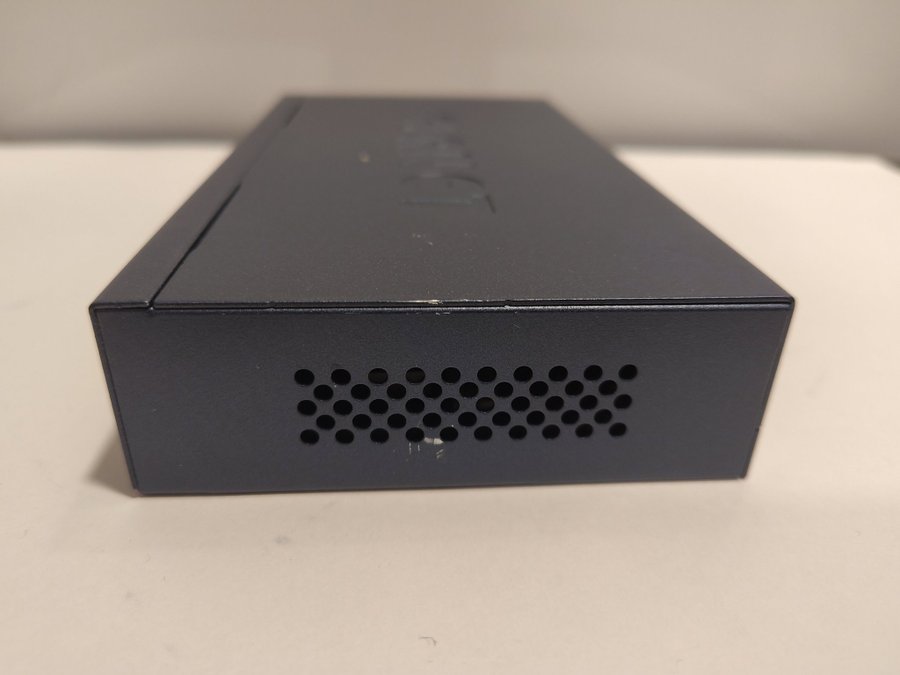

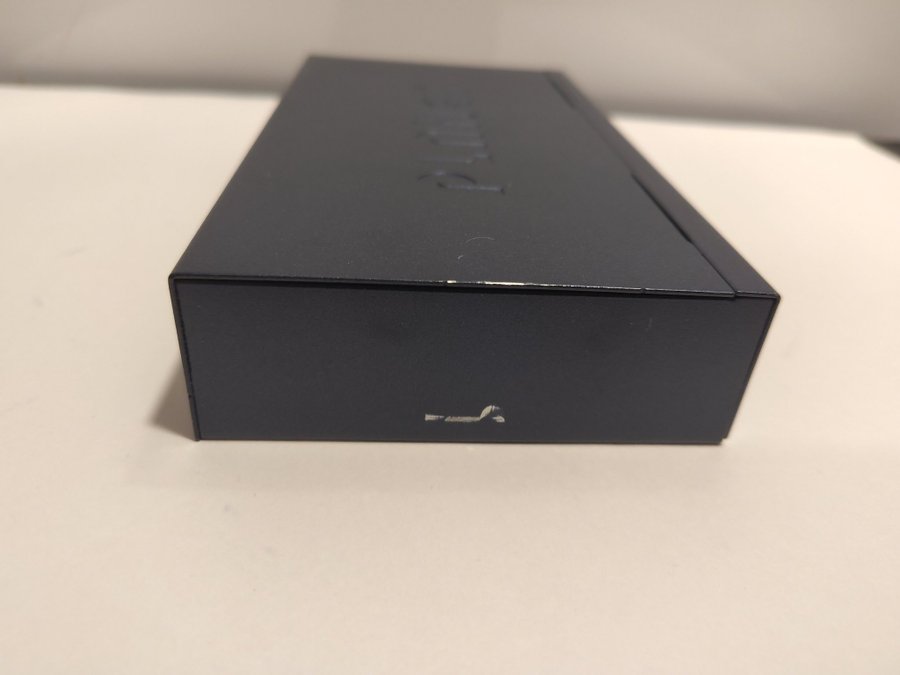

Planet FSD-604HP är en 4-Port 10/100TX 802.3af/at PoE + 2-Port 10/100TX nätverksswitch. Den har stöd för 30 W per port över PoE från en 60 W PoE-budget. Idealisk för kameraövervakningssystemet. Några mindre lackskador, se bilder.

https://www.planet.com.tw/en/product/fsd-604hp

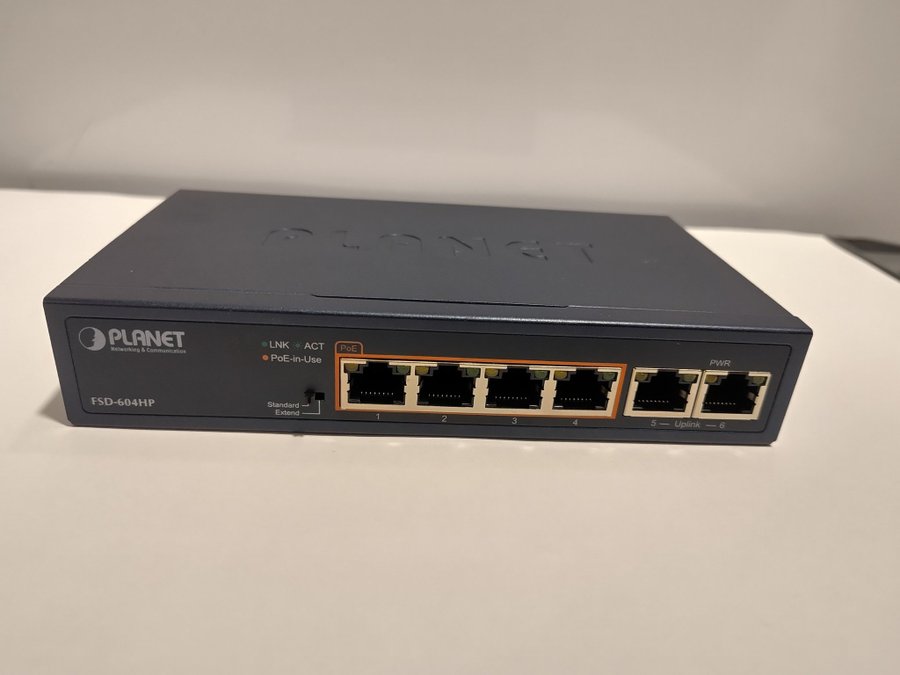

Network Connector 6-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
PoE Inject Port 4-port with 802.3af/at PoE injector function (Port-1 to Port-4)
LED Display System: Power (Orange) Per PoE port: PoE (Orange, Port 1 to Port 4) LNK/ACT (Green, Port 1 to Port 6)
DIP Switch 100m distance in standard mode 250m distance in extend mode (based on the cable category)
Switch Architecture Store and Forward switch architecture
MAC Address Table 2K MAC address table with auto learning function
Switch Fabric 1.2Gbps
Switch Throughput 0.89Mpps @64bytes
Maximum Packet Size 1536bytes
Flow Control Back pressure for half duplex. IEEE 802.3x pause frame for full duplex

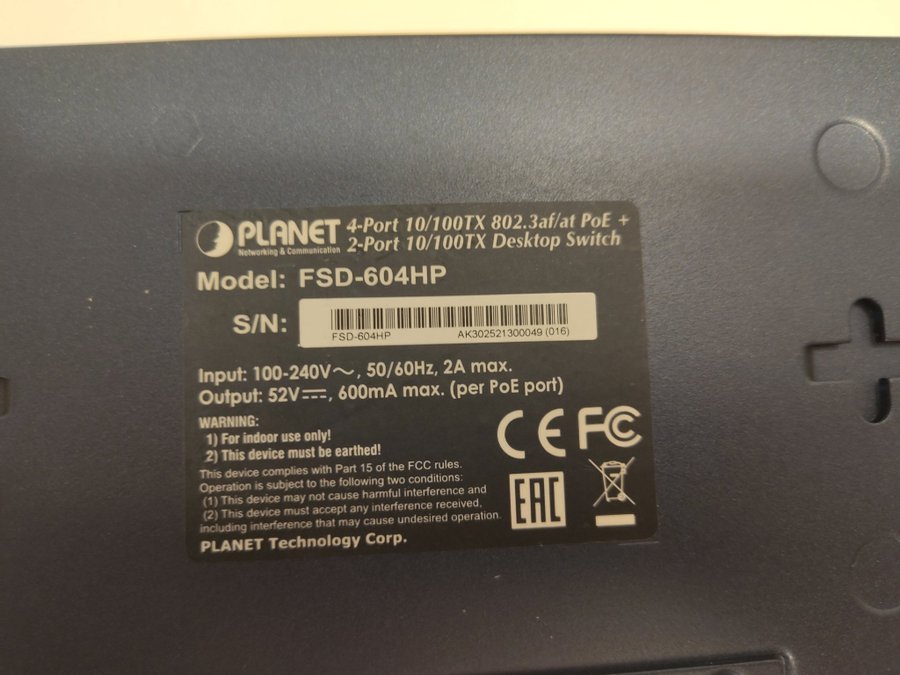

Power Requirements AC 100~240V, 2A max.
Power Consumption Max. 63 watts, 214 BTU
Dimensions (W x D x H) 168 x 86 x 32 mm
Weight 499g
