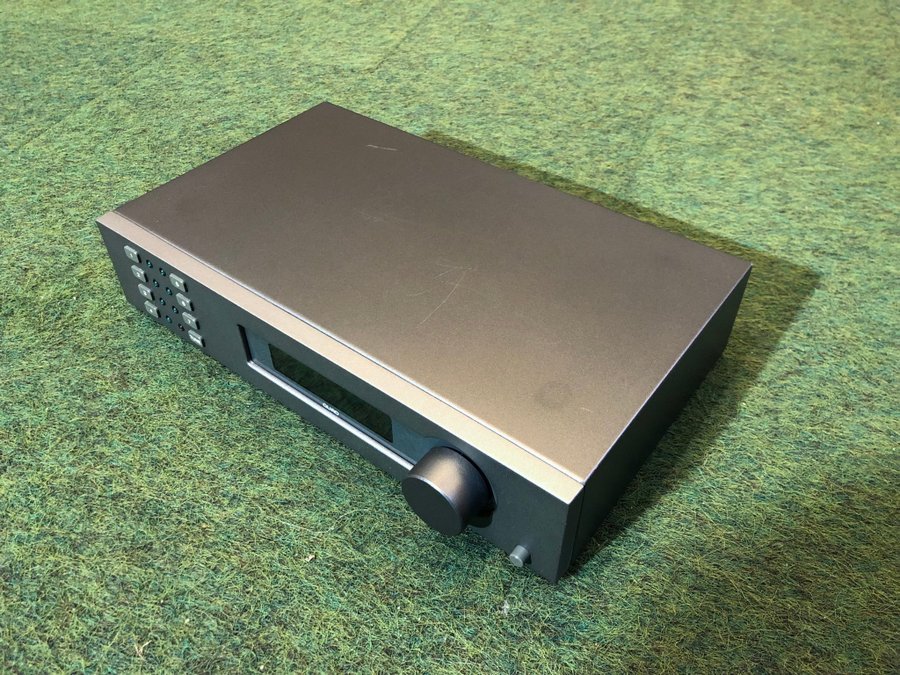

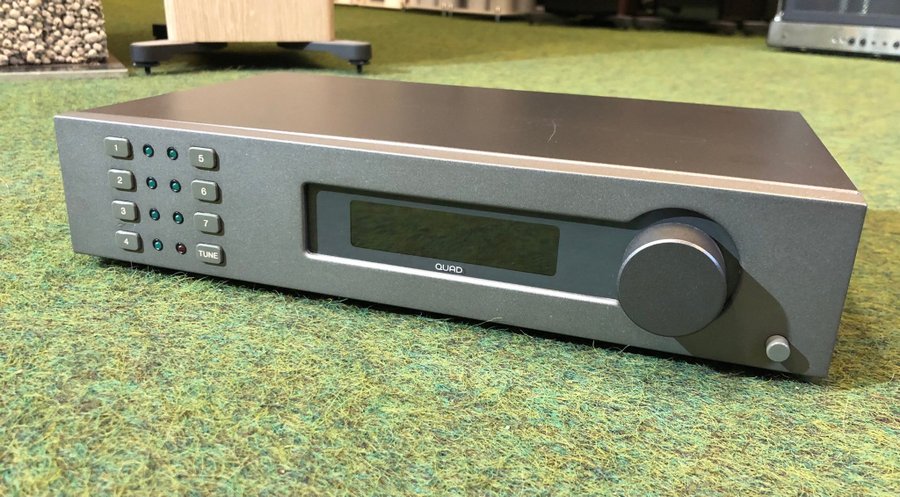

Quad FM4 tuner

Fint begagnat skick med något bruksmärke.
Nysåld av Stridbeck på Gibraltargatan till första och enda ägaren.

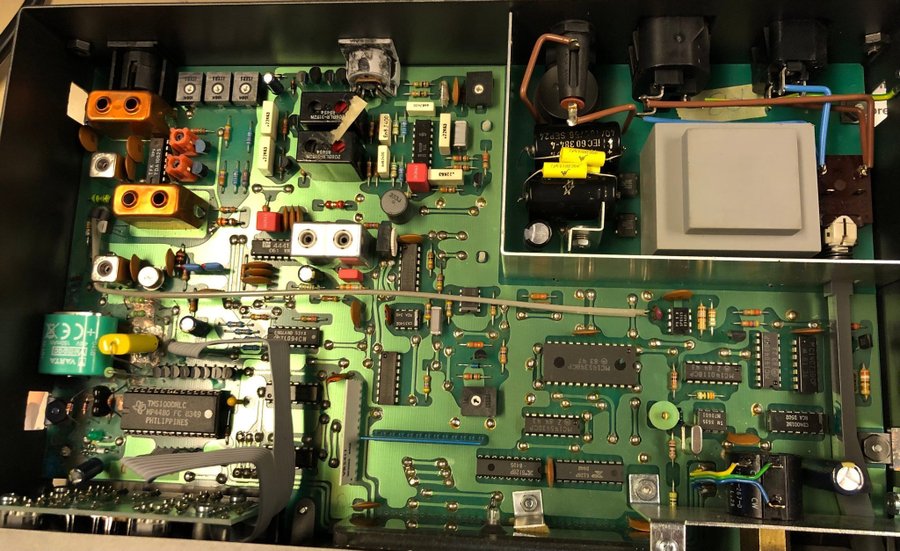

Nyligen servad där döljande gjordes:

Utbyte alla elektrolytkondensatorer, mindre värden ersatta med Wima film-typ.
Nytt batteri.

Kommer med strömkabel. Ingen antenn eller signalkabel.

Fri frakt inom Sverige.

Specifikationer:

Main principle
Superheterodyne (common)

Wave bands
FM Broadcast Band

Power type and voltage
Alternating Current supply (AC) / 100-127 / 200-240 Volt

Dimensions (WHD)
321 x 64 x 207 mm / 12.6 x 2.5 x 8.1 inch

Notes

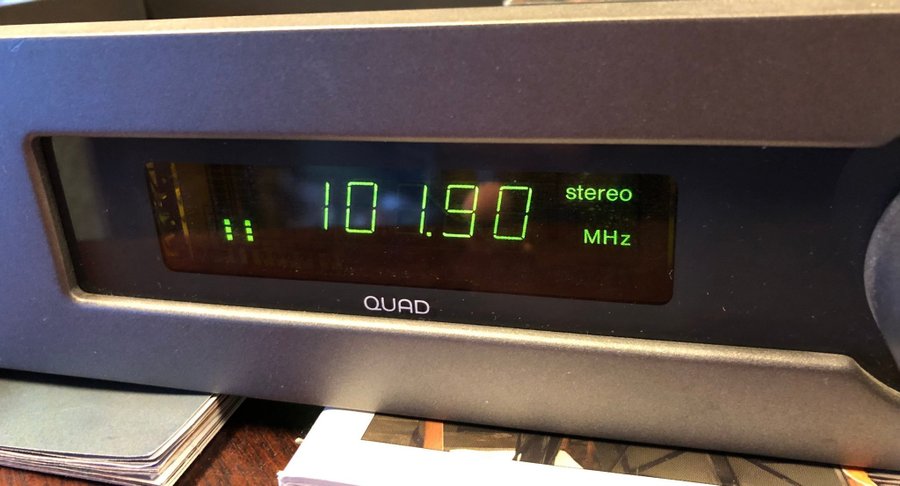

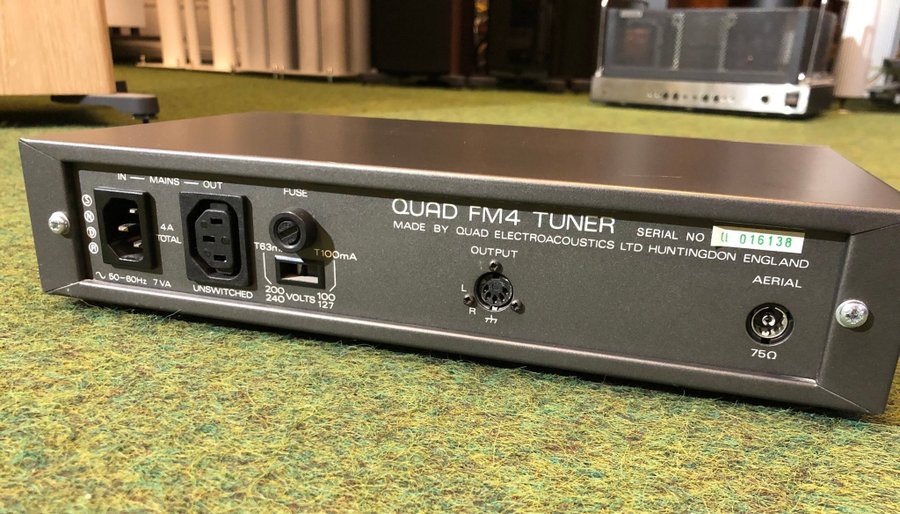

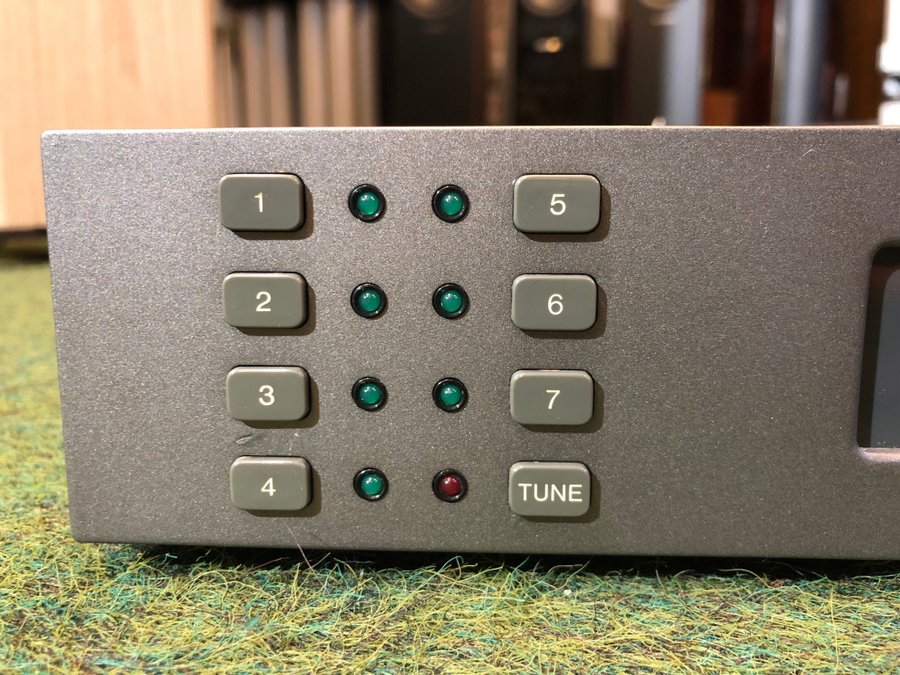

A hi-fi FM stereo tuner with a digital frequency display housed in a green metal case. With a rotary tuning control, push buttons for 7 preset radio stations and Tune (save to memory), automatic AFC and muting, bar graph signal strength and centre tuning indicators and FM stereo indicator. On the back, a 75 ohm FM coaxial antenna connector, DIN Line output socket and an unswitched AC outlet. The preset buttons on the UK model are marked with UK radio stations, on export models marked 1 to 7.
Specification
Frequency range 88-108MHz
Sensitivity
30dB quieting
Mono 1µV (1.2dBf)
50dB quieting Mono 2.7µV (8dBf), Stereo 25µV (28dBf)
Full Limiting 20k?
Aerial Input 75? unbalanced
De-emphasis 50µs or 75µs

Power requirements: 100-127V or 200-250V AC 50/60Hz with voltage selector switch
Power consumption: 6VA

Net weight (2.2 lb = 1 kg)
3 kg / 6 lb 9.7 oz (6.608 lb)
