Heed Quasar MM/MC phono stage

Säljer en Heed Quasar phonostage tillsammans med en Heed Q-PSU strömförsörjning. Båda enheterna är i bra skick och fungerar som de ska. Perfekt för dig som vill ta din vinylupplevelse till nästa nivå.

Modell: Quasar
Modell: Q-PSU

Inputs: 1x MM, 1x MC (separate stages)
MM Input: 3mV / 47kO / 100pF
MC Input (Adjustable): Sensitivity: 100µV / 220µV / 600µV; Impedance: 100O / 220O / 1kO (or 470O depending on version)
Gain: 50dB (MM), 62-78dB (MC)

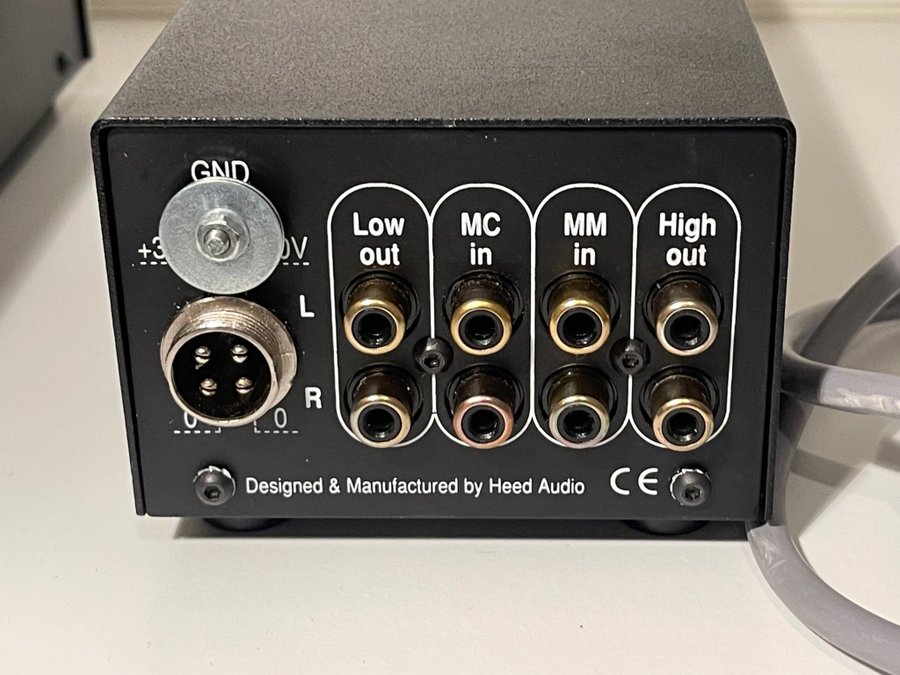

Outputs: "Low Out" (220mV/100O), "High Out" (775mV / 0dBm / 22O)
Frequency Response: 3 Hz - 150 kHz (+/- 1dB)
RIAA Accuracy: +/- 0.5dB (20 Hz - 20 kHz)
Signal-to-Noise Ratio (A-weighted): 85dB (MM), 78dB (MC)
Distortion (THD): <0.08% (1kHz, 100mW)
Power Supply: External (Q-PSU standard, with upgrades like Obelisk PX)
Construction: Dual-mono, discrete bipolar transistor
Dimensions: 9.5 x 7.5 x 22 cm (main unit)
Key Features:
Dual-Mono Design: Separate amplification paths for MM and MC signals.
Adjustable MC Settings: Fine-tune gain and impedance via internal jumpers for cartridge matching.
High Headroom: Large dynamic range for clean sound.
Versatile Outputs: Drive preamps (low out) or power amps directly (high out).
External PSU: Uses separate, massive power supply for minimal noise.
