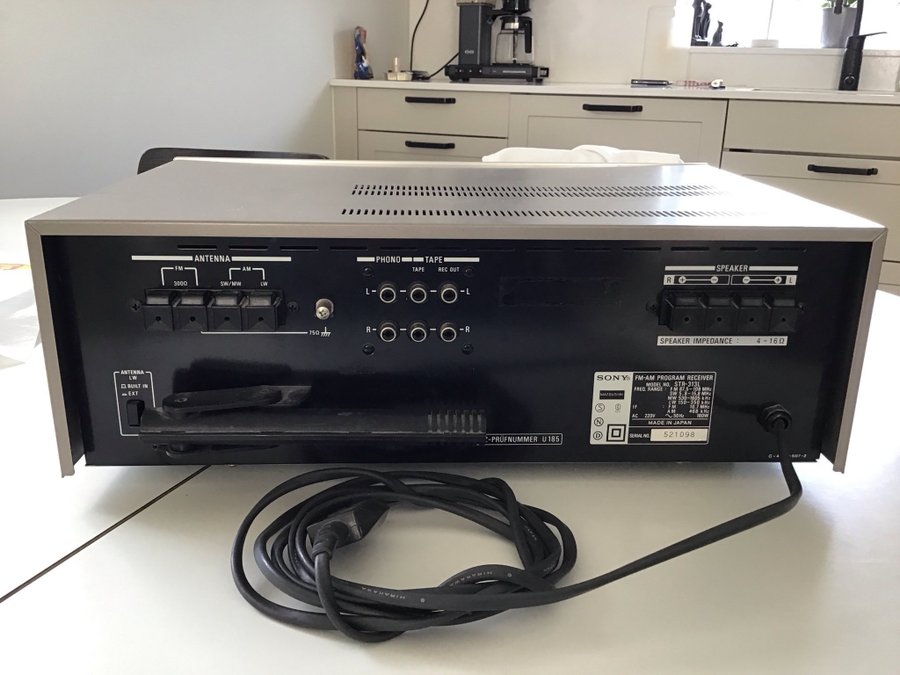

Vintage Sony STR-313L Program Receiver i fint skick.
Funktiontestad OK med skivspelare Technics SL-BD20 och rullbandspelare Sony TC-270.Utmärkt mottagning med FM antenn 300 ohm.
Skalbelysninh lite svag på vänster sida.

Specifications:
1. General
System: Transistor Receiver (FM/AM/MW/LW)
Colour: 1=Silver, 2=Black: 1
Power consumption: 180 W @ 120/240 V
Pre Amplifier
Inputs: Phono MM; Tape
Quadro: no
Inp. Sensitivity High Level: 150 mV
Inp. Impedance High Level: 100 kO
Signal/Noise High Level: 90 db
Inp. Sensitivity Phono MM: 2.5 mV
Inp. Impedance Phono MM: 50 kO
Signal/Noise Phono MM: 70 db
Outputs: 1 REC OUT (RCA)
Harmonic Distortion: - 0.5 % at rated output
Output Voltage Rec Out: 150 mV
Impedance Rec Out: 10 kO
Equalizer
Tone Controls: Bass; Treble
Frequencies: ± 8 dB/100 Hz; ± 8 dB/10 kHz
Filters: no
Loudness: +8 dB/100 Hz; +3 dB/10 kHz
Power Amplifier
Speaker Outputs: 1 x 2 Speakers; Phones
Continuous power 8O: 27 + 27 Watts
Dynamic Power 8O: 45 + 45 Watts
Frequency Response: 10-40,000 HZ
Damping factor: 20
Harmonic Distortion: - 0.5 % at rated output
Tuner
Display: analog
Frequency Range FM: 87.5-108 MHz
Frequency Range AM: 530-1,605 KHz
Frequency Range SW: 5.8-15.8 MHz
Frequency Range LW: 150-350 KHz
Signal Strength Meter: 1 : 0=NO, 1=YES
Center Tuning Meter: 1 : 0=NO, 1=YES
Inp. Sensitivity Mono: 1.7 µV
Frequency Response: 30-15,000 HZ
Harmonic Distortion: Mono 0.2
Stereo 0.3 % at rated output
Separation: > 40 db
Signal/Noise Mono: 75 db
Signal/Noise Stereo: 70 db
Pilot Signal Rejection: 35 db
2. Physical
Dimensions in Inches: 16 x 5.7 x 12 (w) x (h) x (d)
Dimensions in mm: 410 x 145 x 310 (w) x (h) x (d)
Weight in lbs: 16.75 lbs
Weight in Kg: 7.6 Kg
