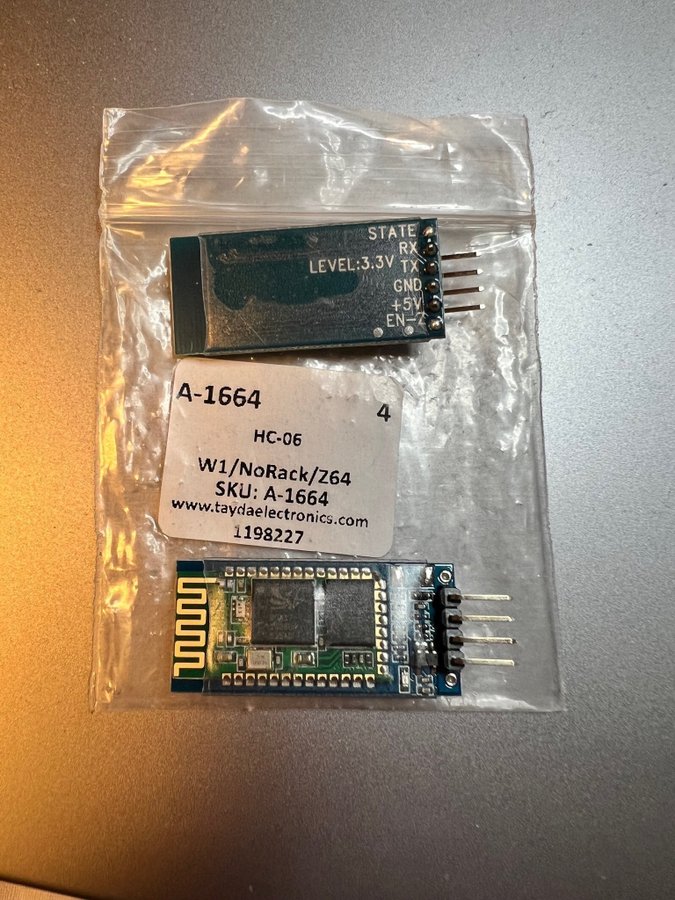

Säljer två st HC-06, RS-232 Serial Bluetooth Transciever moduler.

Modell: A-1664
SKU: A-1664

Kan användas till t.ex Arduino, Raspberry Pi

————————--
From internet: www.taydaelectronics.com

This nifty little bluetooth module is a serial pass through for any device that has a serial line. Use it to send data over bluetooth to your Arduino, Raspberry Pi, or other computer. Design an app on your phone to connect to an Arduino via bluetooth. Send data short distance between Arduino's. Turn your TV off automatically, set up home automation systems, the options are endless with this low cost powerful bluetooth module.

Here is a quick wiring example. (I know it says its an HC-05, but it's the same wiring and the same form factor except this board says HC-05 instead of HC-06.)

And a quick sketch to get you up and running is available here.

Using this sketch is super simple. First, you must connect the bluetooth device to your laptop. Usually it pops up as ”HC-06”, but when I first connected mine to my laptop it showed up as the bluetooth address or something like ”20-16-02-15-04-84”. To pair you must use the predefined code of 1234.

Second, once you have this finished you should open up the terminal and type the command: 'ls /dev/tty*' (for those that are new to this do not include the apostrophes in the terminal)
You should be looking for the something that says /dev/tty.HC-06 (mine says /dev/tty.HC-06-DevB on my MacBook Pro). Note this path for future use.

Third, upload the sketch to the Arduino, and head back to the terminal.

Fourth, you should be at the terminal and you need to type: 'screen /dev/tty.HC-06' (the path you noted earlier goes after screen, in this case the path we noted was /dev/tty.HC-06)

Fifth, hit the reset button on the Arduino. Now you should see ”Hello from Arduino.” in the terminal! If you type 1 it should turn on the LED attached to pin 13. If you type 2 it should turn the LED off. It will let you know whether the LED is on or off in the terminal.

Now with this knowledge go off and build something fun that you can connect to your laptop, phone, or other bluetooth device!

If you need any help with this example or using the HC-06 at all let us know in the forum. HC-06 General Help Forum

Voltage: 3.3v
Default Baud Rate: 9600 bit/s
Serial Interface: RS-232
Bluetooth Protocol: v2.0
Datasheet: Click Here
Size: 28 x 15mm
