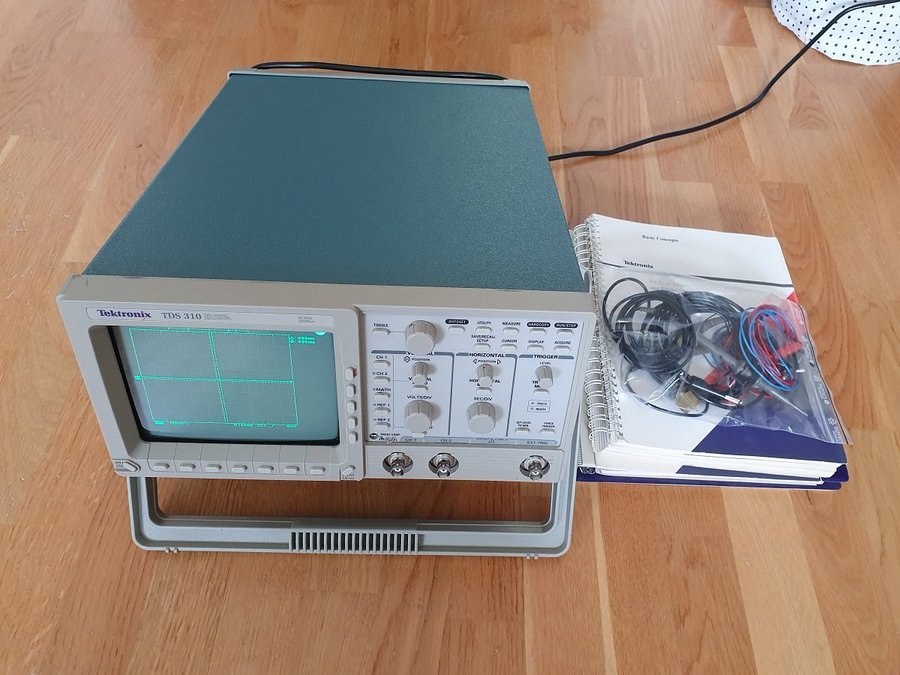

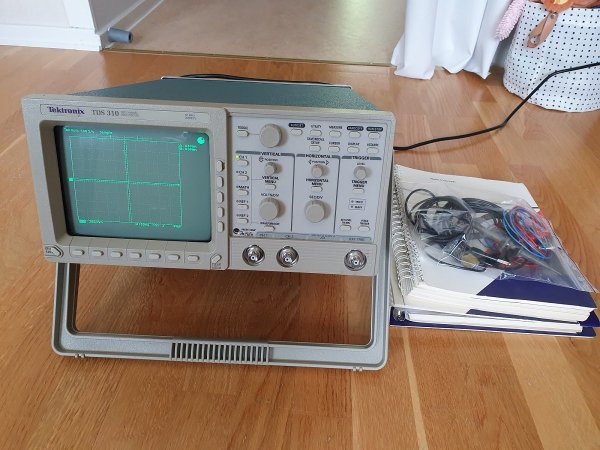

Säljer en Tektronix TDS 310 oscilloskop. Manual och tillbehör ingår.
Tektronix TDS 310 digitalt minnesoscilloscope.
2 channel, 50Mhz, 200MS/s med tillhörande manualer. Som ny.
Bandwidth 50 MHz
Number of Channels 2 ch
Simultaneous Channels 2 ch
Simultaneous Maximum Sampling Rate/ch 200 MSa/s
One ch. only max. sampling rate 200 MSa/s
Max. Single Shot bandwidth 50 MHz Max.
Record Length 1000 pt/sec
Min. Vertical Sensitivity 2 mV/div Maximum
Vertical Sensitivity 10 V/div
Number of Bits 8 bits
Main time base - lowest 10 ns/div
Main time base - highest 5 s/div
Timebase accuracy 0.01 %
Trigger Source External,Internal
Display modes Dot,Vector
