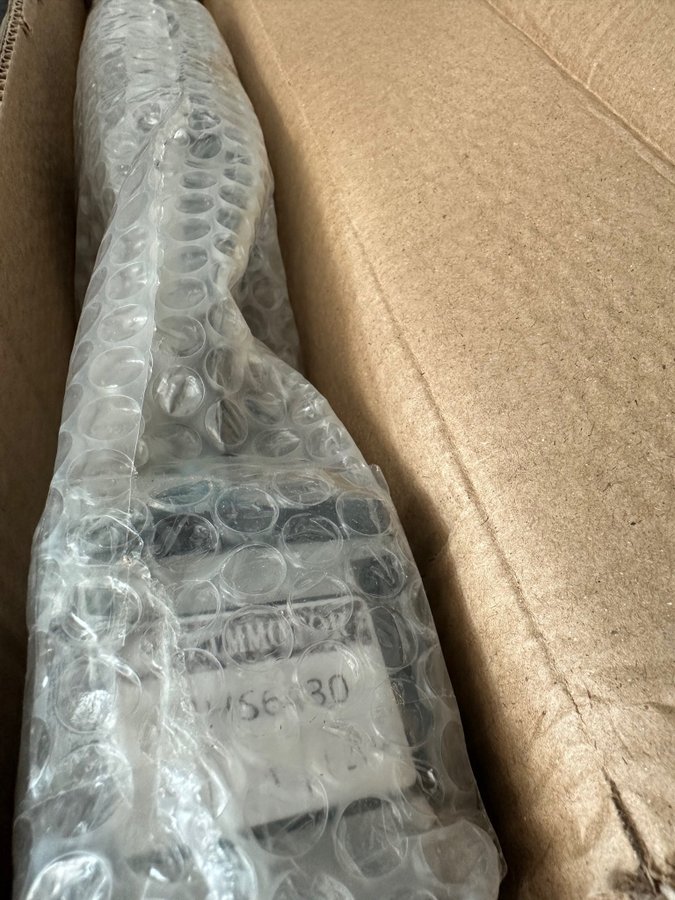

Helt ny! (Se bilder och text)

Basic parameters:
Speed 0-300 mm/s,
Effective stroke 300 mm.
Pitch 5 mm (the pitch spindle moves 5 mm in one turn)

Good positioning accuracy: repeat the positioning accuracy of ± 0.03 mm.
Basic parameters: speed 0-300 mm/s, screw precision: C7; effective stroke 300 mm, pitch 5 mm (the pitch spindle moves 5 mm in one rotation)
Nema23 stepper motor: motor length: 56 mm; motor flange size: 57 mm; holding torque: 1.2 N.m; 2 phase; 3 A; wiring: red (A +), green (A-), yellow (B +), blue (B-).

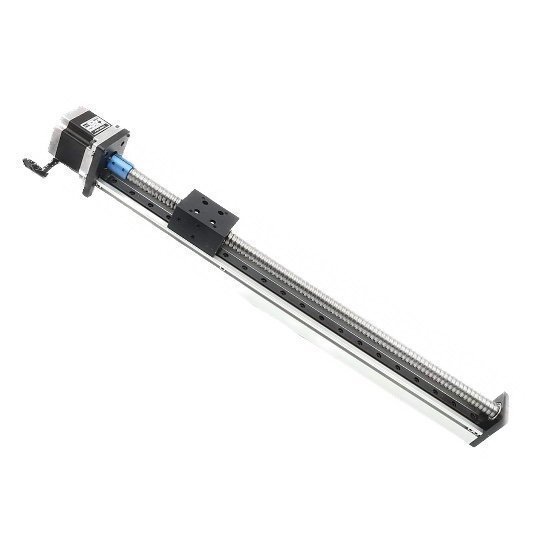

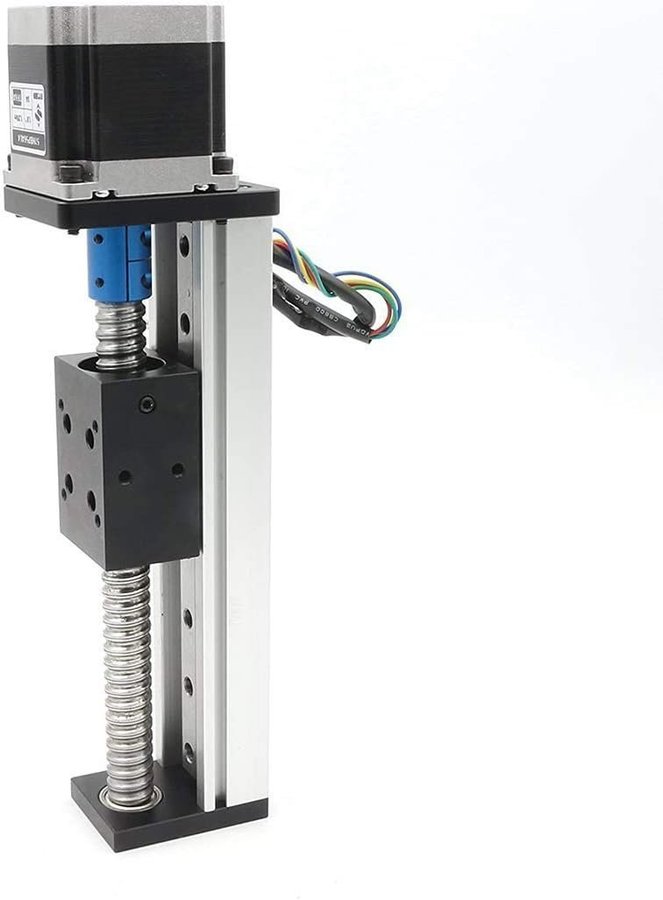

CBX1605 ball thread drive: high accuracy; high-performance SFU1605, which can be mounted vertically.
Sliding block: length: 60 mm. The linear rail guide has 4 x M6 nuts on the moving block to secure the workpiece. The slider is made of 6030 aluminium and after oxidation deal.

Vänligen läs informationen under “Om” på min profil innan köp. Där hittar du info om betalning, leverans och villkor.
