Fungerar men ibland lyser inte displayen eller knapparna upp vid påslagning. Mest troligt ett mjukvarufel.

Gear4music's 3 års garanti gäller ej.

Produktinformationen kan innehålla tillbehör eller programvara som inte ingår i Tradera varan.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas med bud.

Följande är den ursprungliga produktbeskrivningen, ENDAST FÖR REFERENS.

Full Description

You can boost or attenuate lows, mids, and highs, whilst the compressor setting lets you tame dynamics whilst controlling the peak limiting threshold for Mix A or Mix B. You can add atmosphere and spatial ambience with the built-in studio-quality reverb, which is applied independently from the main console. Plus, a handy Pan button lets you adjust the stereo field of your selected group with ease.

Intelligent integrated features
The DP48 is more than just a monitor mixer. With a built-in SD card slot, you can easily record rehearsals or performances directly from your DP48. You can then play these recorded mixes back to either Mix A or Mix B. When recording, you can take advantage of the mix-minus function, which allows you to remove respective My Group signals to use as a backing track when practising. Plus, you can even store your favourite mixing presets to the SD card and load them up quickly and easily if you happen to be using a different DP48.

But that's not all. The DP48 takes away the feeling of isolation that IEMs can often leave you with. A handy built in ambience microphone lets you hear more of the room and stage around you, so you can communicate with other performers or your audience with ease. There's even an automatic ducking function that reduces the level of the mic when you're playing, so you can keep your mix clear for hassle-free monitoring.

In the box
Midas DP48External Power Supply
Quick Start Guide
Features
Dual 48-channel personal monitor mixer
Dual design allows two distinct 48-channel monitoring mixes for separate performers
Compatible with Midas personal monitoring system hubs
12 stereo groups for rapid creation and balancing of personal mixes from fully configurable stem groups
Integrated SD card interface for stereo recording and playback of rehearsal sessions and performances
Built-in stereo ambience microphone provides on-stage sound feed to remove the sense of isolation with IEMs
Studio-quality reverb adds spatial ambience to personal in-ear mixes, independent from the main console
Remotely powered via direct AES50 connection from Midas hubs featuring Power over Ethernet
Compatible with any 44.1/48kHz AES50-equipped devices including Midas and Behringer digital consoles and I/O boxes
Midas PRO SERIES and M32 console input channel labelling and colour information transmitted to the DP48 via AES50 input channels
AES50 return channels allow personal mixes to be sent back to the console or hub for connection to wireless IEM transmitters
Remote operation up to 100-metres via screened CAT5/5e cable
Remote setup and control of the DP48 via Midas hubs
Full remote control of another DP48 when both are connected to the same hub or are used in a daisy chain configuration

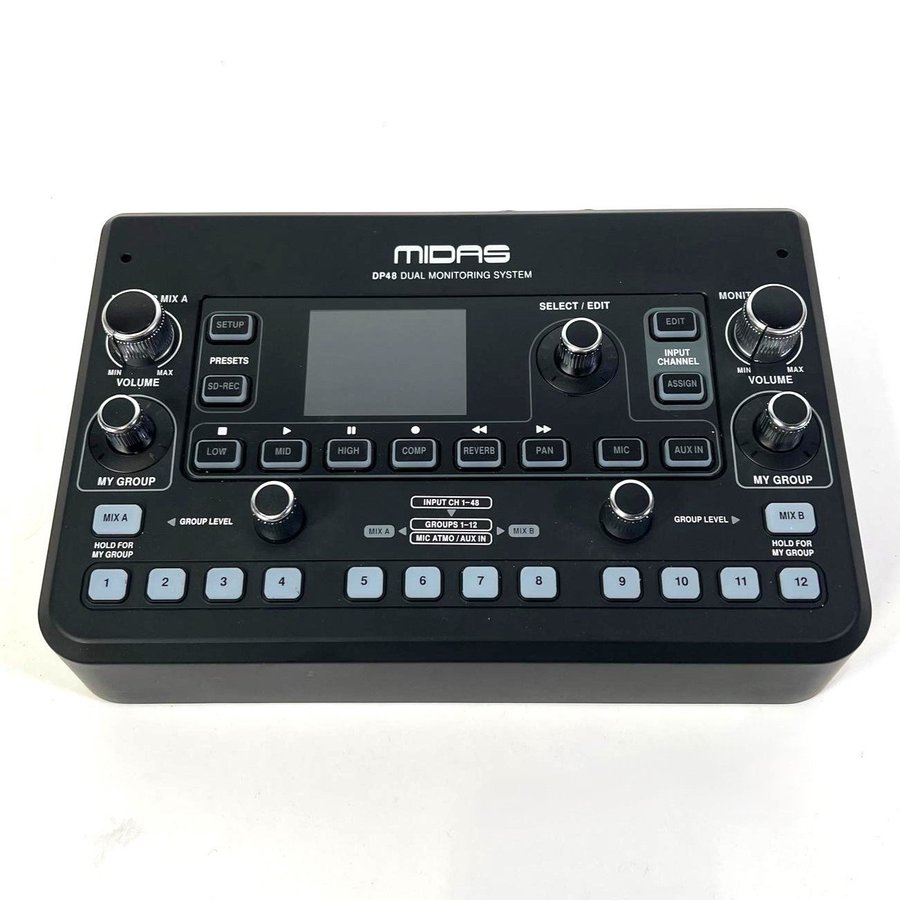

High-contrast 2.4'' colour TFT display provides a clear overview of mix parameters, meters, and group assignments
Analogue stereo auxiliary input for local click track
High power headphone output for use in all stage monitoring environments
Fully adjustable limiter allows for safe monitoring levels within sound exposure limits
Mounts securely on a microphone stand using the DP48MB adapter (available separately)Designed and engineered in the UK
Covered by Midas' 10-year warranty program
Specifications

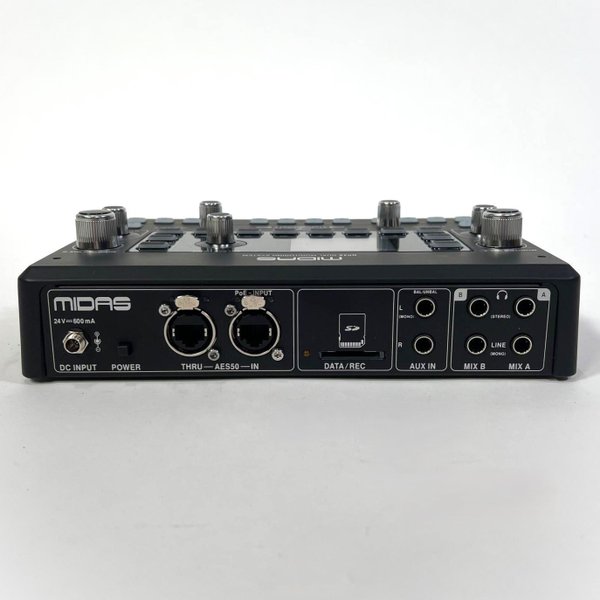

Connectors:
Headphones Mix A/B: 2 x 1/4'' TRS, stereo, unbalanced, 25 Ohms
Line Mix A/B: 2 x 1/4'' TRS, mono, balanced, 1 k Ohm / 2 x 1/4'' TRS, mono, unbalanced, 500 Ohms
Aux In: 2 x 1/4'' TRS, unbalanced, 20 k Ohms / 2 x 1/4'' TRS, balanced, 40 k Ohms
AES50 Thru/In: 2 x RJ45
Low EQ: +/-15dB, semi-parametric, low shelving
Mid EQ: +/-15dB, semi-parametric, peaking
High EQ: +/-15dB, semi-parametric, high shelving
EQ Frequency: 20hz to 22kHz, adjustable
Limiter: Ratio 8:1
Maximum Level: +12.8dBu (headphones)
Mix A/Mix B: 2 x stereo
AES50:Audio Channels at 48kHz: 48
Sample Rate: 44.1/48kHz
Sample Word Length: 24-bit
Clock Synchronisation: AES50 IN
Latency: Min. 70µs per node (AES50)
Cable: Ethernet CAT 5e
Maximum Cable Length: 100m
SD/SDHC Format: FAT32
Card Memory: Up to 32GB supported
Power Supply:AES50 Input: PoE (IEEE802.3af)
Mains Connection: External power supply, 24VDC/600mA (included)
Power Consumption: Max. 14W (with DC adaptor)
Dimensions: 69mm x 242mm x 164mm / 2.72'' x 9.53'' x 6.46'' (H x W x D)
Weight: 1.3kg / 2.9lbs
Product Code: DP48


Se till att du läser artikelbeskrivningen fullständigt eftersom den säljs i befintligt skick.
