Number of Transistors
7
Semiconductors

Main principle
Audio-Amplification
Wave bands
- without
Details
Cassette-Recorder or -Player

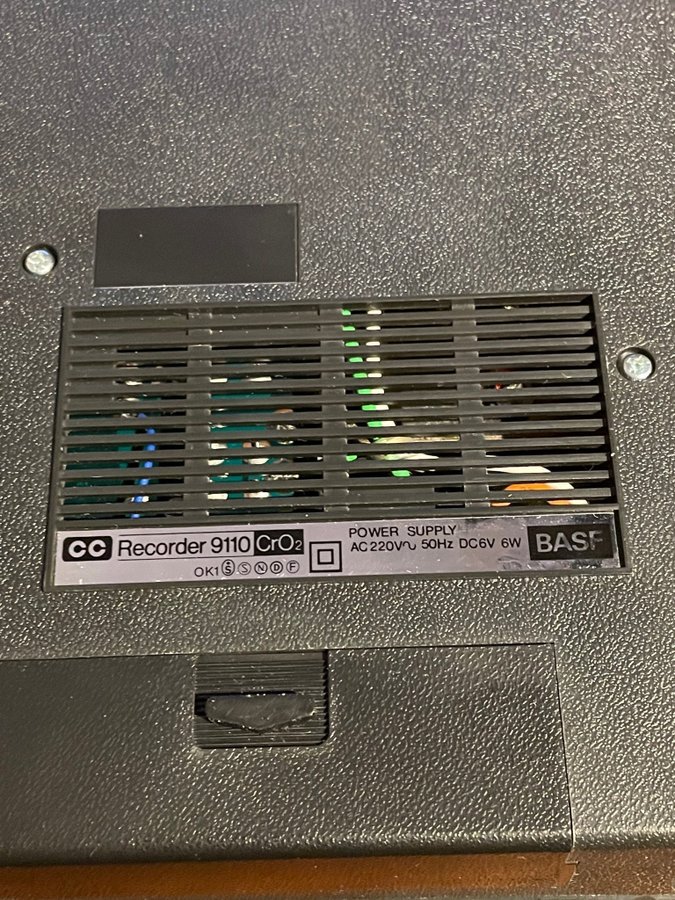

Power type and voltage

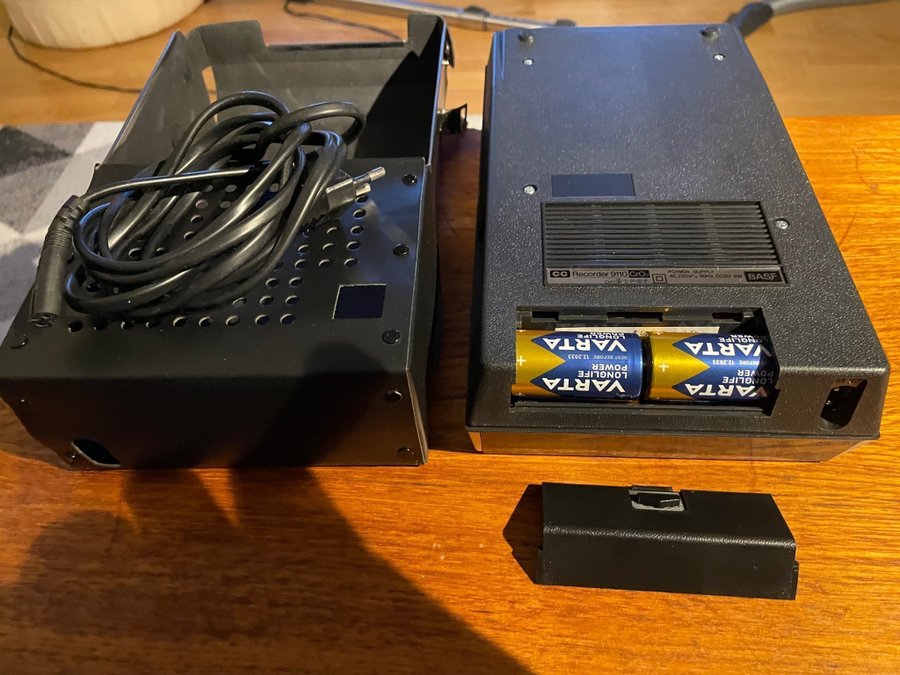

Line / Batteries (any type) / 115; 230 / C: 4 × 1,5 Volt mo
Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
0.4 W (unknown quality)
Material
Plastics (no bakelite or catalin)
from Radiomuseum.org
Model: CC Recorder 9100 - BASF, Badische Anilin- & Soda-
Shape
Portable set > 8 inch (also usable without mains)
Dimensions (WHD)
150 x 65 x 265 mm / 5.9 x 2.6 x 10.4 inch
Notes
Instrument für Batteriespannungskontrolle.

Das Instrument dient beim Aufnehmen als Aussteuerungsanzeige.

Net weight (2.2 lb = 1 kg)
1.7 kg / 3 lb 11.9 oz (3.744 lb)
External source of data
Erb
Source of data
Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1)
-- Schematic

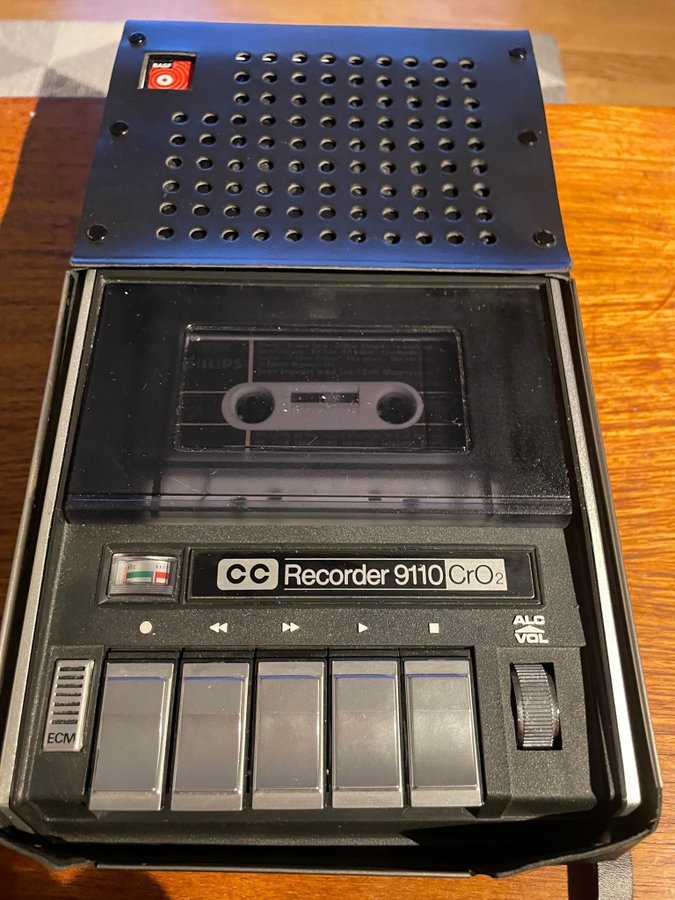

Nyskick inkl väska.
Provspela kanonljud.
