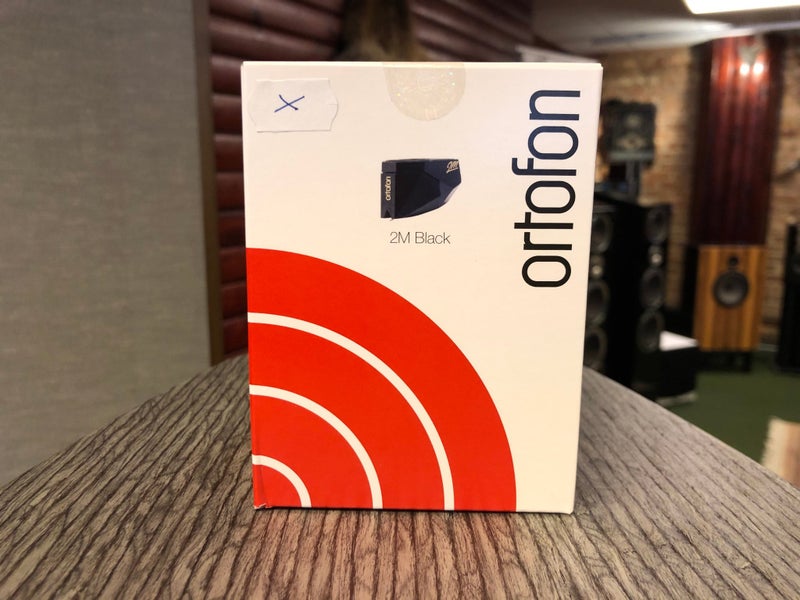

NY Ortofon 2M Black

Ny i obruten förpackning.

Riktigt trevlig MM-pickup.

Fri frakt inom Sverige.

Specifikationer:

Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
5 mV
Channel separation at 1 kHz
26 dB
Frequency response 20 Hz - 20 kHz
2 / - 0 dB
Tracking ability at 315 Hz
80 µm
Compliance, dynamic, lateral
22 µm/mN
Cantilever material
Aluminium
Stylus type
Nude Shibata
Stylus tip radius
r/R 6/50 µm
Coil system
Quad-coils with split pole pins and silver-plated OFC Coil wire
Tracking force range
1.4-1.7 g (14-17 mN)
Tracking force, recommended
1.5 g (15 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.2 kOhm
Coil wire material
Silver-plated OFC Coil Wire
Cartridge body material
Polymer and aluminum
Cartridge colour
Black/Black
Cartridge weight
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
630 mH
Recommended load capacitance
150-300 pF
