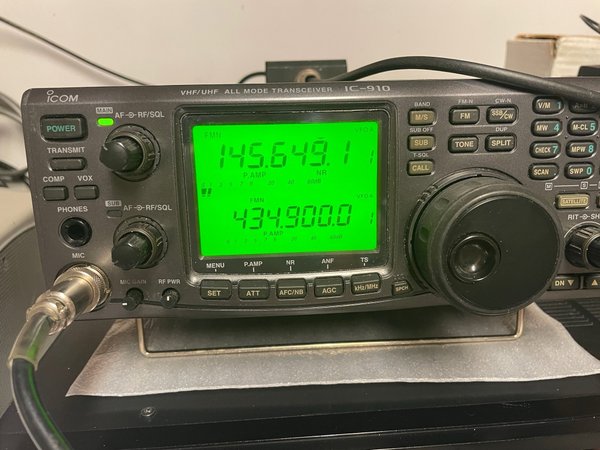

ICOM IC-910H VHF/UHF All Mode Transceiver. Medföljer bruksanvisning och service manual.

In excellent condition and complete with hand microphone, power lead, user and technical manuals.

Installed on this radio are:

1. UT106 DSP unit on main Receiver
2. FL-132 CW Filter on main Receiver
3. HS-790 Duplexer on VHF and UHF antenna inputs.

General description:

The IC-910 VHF/UHF all-mode transceiver is a compact, fully featured transceiver suited to meet the demands of the serious DXer or satellite enthusiast and improves on its well-respected predecessor, the IC-821H, whilst keeping the essential qualities of the IC-821H

Icom have added important features such as a large, clear LCD display, a useful increase in transmit power output and DSP facilities (Installed on the main receiver).

Newly designed power amplifier circuits provide 100 Watts of stable output power on the 2 Metre band and 75 Watts on 70cms. Coupled with dual, high-sensitivity DSP-compatible receivers, weak signal DX and satellite communications are second to none.

The aluminium die-cast chassis and effective cooling fan ensure stable output for continuous operation such as packet operation. The IC-910 provides two data sockets for simultaneous packet operation on the main and sub band. High-speed PLL lockup times support 9600 bps packet protocol.

Measuring just 24x9x24cm and weighing only 4.5kg, the IC-910H is ideal for contest or field-day operations that require a top notch, all mode VHF/UHF transceiver. The large, easy to read LCD display and 10-key entry pad, ensure direct frequency or memory channel control has never been easier.

Add to this a multitude of features, such as speech compressor, VOX, electronic keyer, CTCSS encoder, variable power output, frequency tracking for satellite UP/DOWN link, 99 memory channels, then you have a versatile radio that is perfect for anyone interested in all aspect of VHF/UHF operation.
