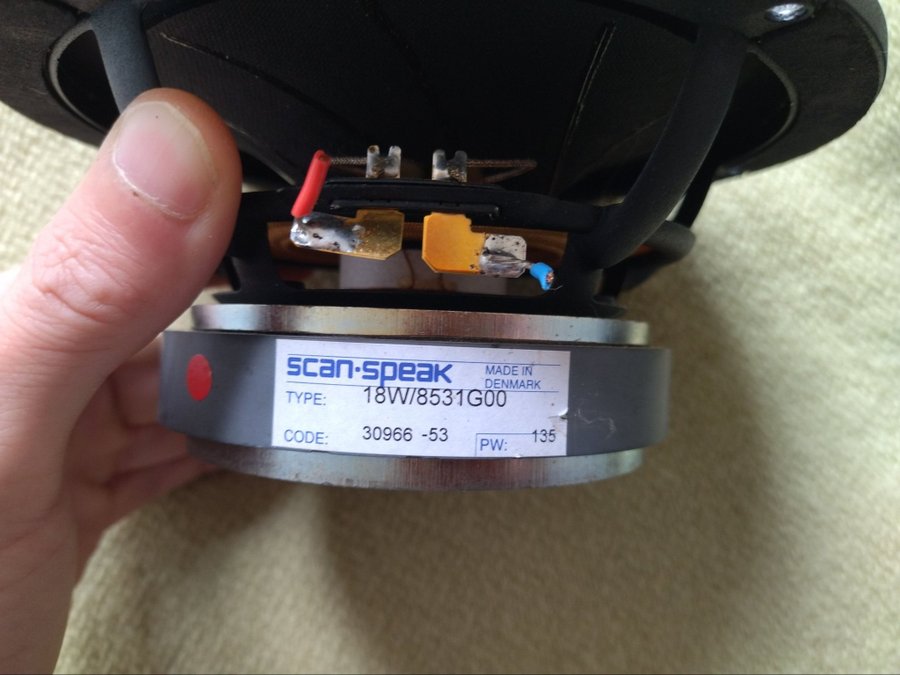

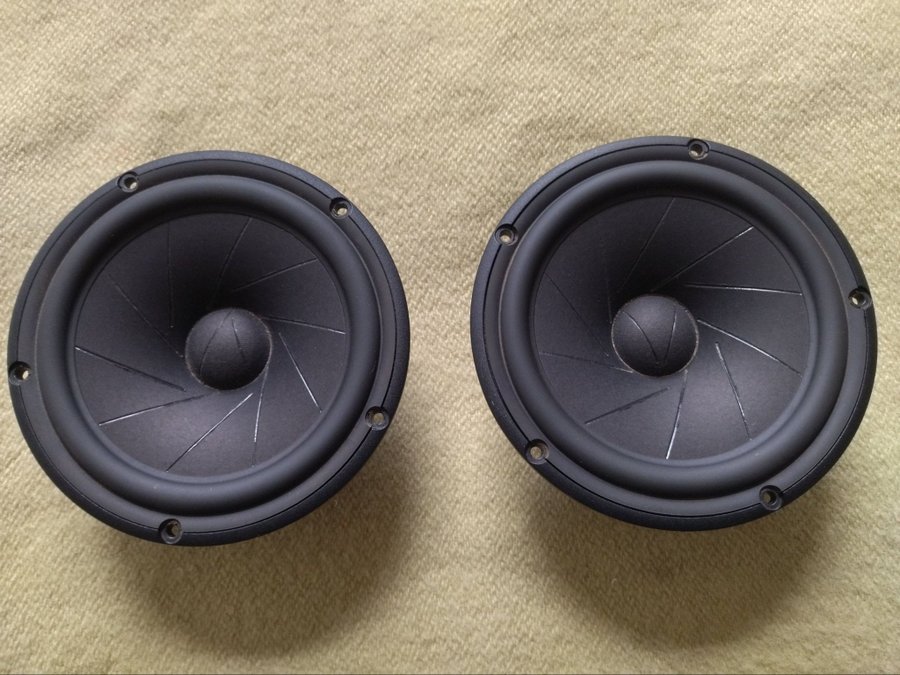

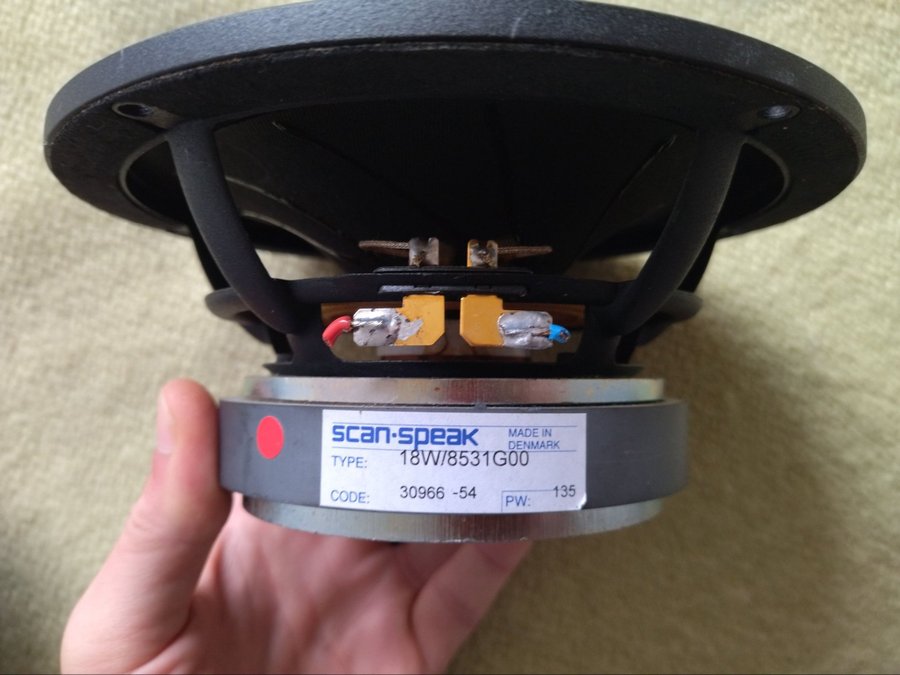

Scan-Speak Revelator 18W/8531G00 7" Woofer

Specifications – Scan-Speak 18W/8531G00 Woofer

Part Number: 18W/8531G00
EAN: 0696277268566
Series: Scan-Speak Revelator
Nominal Diameter: 7"

Electrical Specifications
Power Handling (RMS): 60 Watts
Impedance (Z): 8 Ohms
Sensitivity (SPL @ 1m / 2.83V): 87 dB
DC Resistance (Re): 5.8 Ohms
Voice Coil Inductance (Le): 0.35 mH

Mechanical Specifications
Voice Coil Diameter: 1.49"
Resonance Frequency (Fs): 28 Hz
Mechanical Q (Qms): 5.10
Electrical Q (Qes): 0.39
Total Q (Qts): 0.36
Moving Mass (Mms): 17.5 g
Suspension Compliance (Cms): 1.85 mm/N
Effective Diaphragm Area (Sd): 150 cm²
Force Factor (BL): 6.8 Tm
Equivalent Air Volume (Vas): 2.05 ft³
Maximum Linear Excursion (Xmax): 6.5 mm

EX condition.

Shipped with DHL, insured & tracked.
