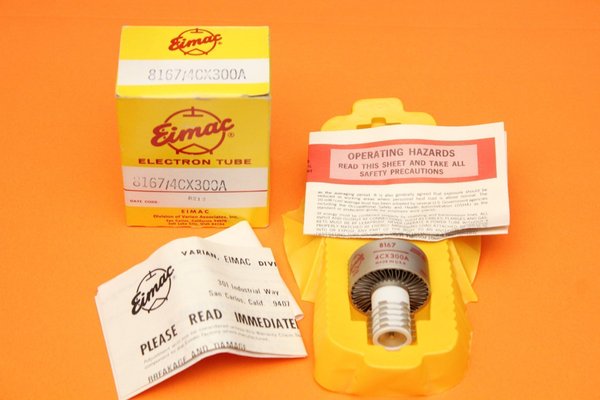

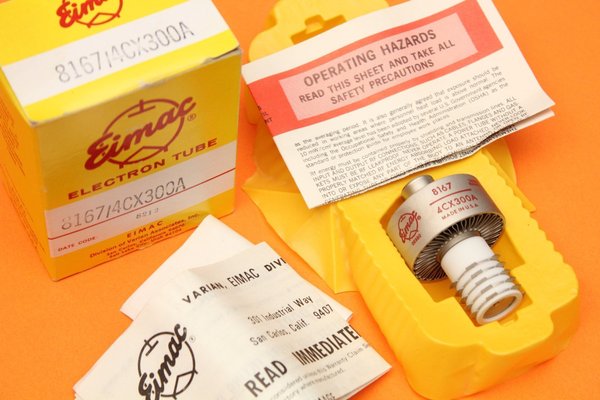

Up for sale, RF power transmitting tube - Eimac 8167 4CX300A
The 4CX300A is a compact power tetrode having a maximum plate-dissipation rating of 300 watts. The ceramic/metal construction and the internally unitized electrode structure combine to make the 4CX300A especially durable and free from mechanically induced noise under conditions of severe acceleration caused by shock or vibration.
Characteristics:
What you see is what you get
Please note: The item is located in Belgrade - Serbia and will be shipped via Air Mail
The 4CX300A is a compact power tetrode having a maximum plate-dissipation rating of 300 watts. The ceramic/metal construction and the internally unitized electrode structure combine to make the 4CX300A especially durable and free from mechanically induced noise under conditions of severe acceleration caused by shock or vibration.
Characteristics:
- Plate Dissipation (Max.) 300 Watts
- Screen Dissipation (Max.) 12 Watts
- Grid Dissipation (Max.) 2 Watts
- Frequency for Max. rating (CW) 500 MHz
- Amplification Factor 4.8
- Filament/Cathode Oxide Coated
- Voltage 6.0 Volts
- Current 2.9 Amps
- Capacitance Grounded Cathode
- Input 29.0 pf
- Output 4.0 pf
- Feedthrough .04 pf
- Cooling Forced Air
- Base Special, Breechblock Air
- Socket SK-700
- Air Chimney SK-606
- Length 2.50 in; 63.50 mm Diameter 1.64 in; 41.60 mm Weight 1.64 oz; 113 gm
What you see is what you get
Please note: The item is located in Belgrade - Serbia and will be shipped via Air Mail
Mån 1 jan 15:46
EIMAC 8167 4CX300A - HF VHF RF POWER TRANSMITTING TUBE - SINGLE - NIB - NOS
Pris
499 kr
