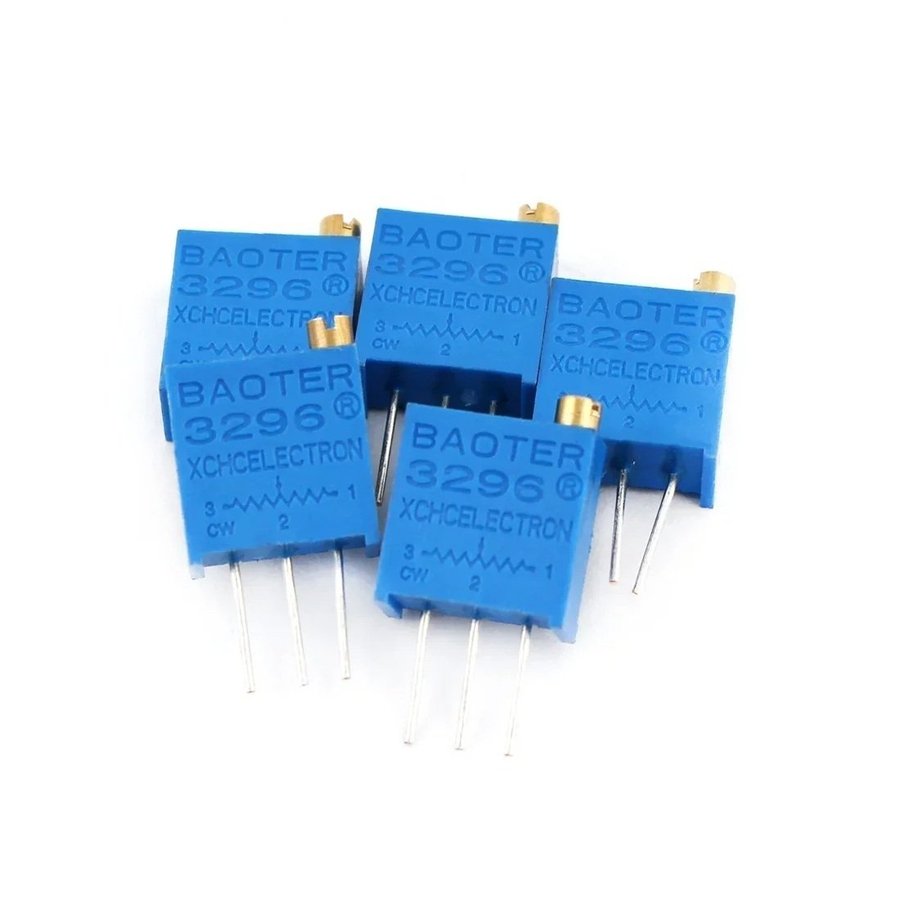

BAOTER 3296 Trimmer Potentiometer

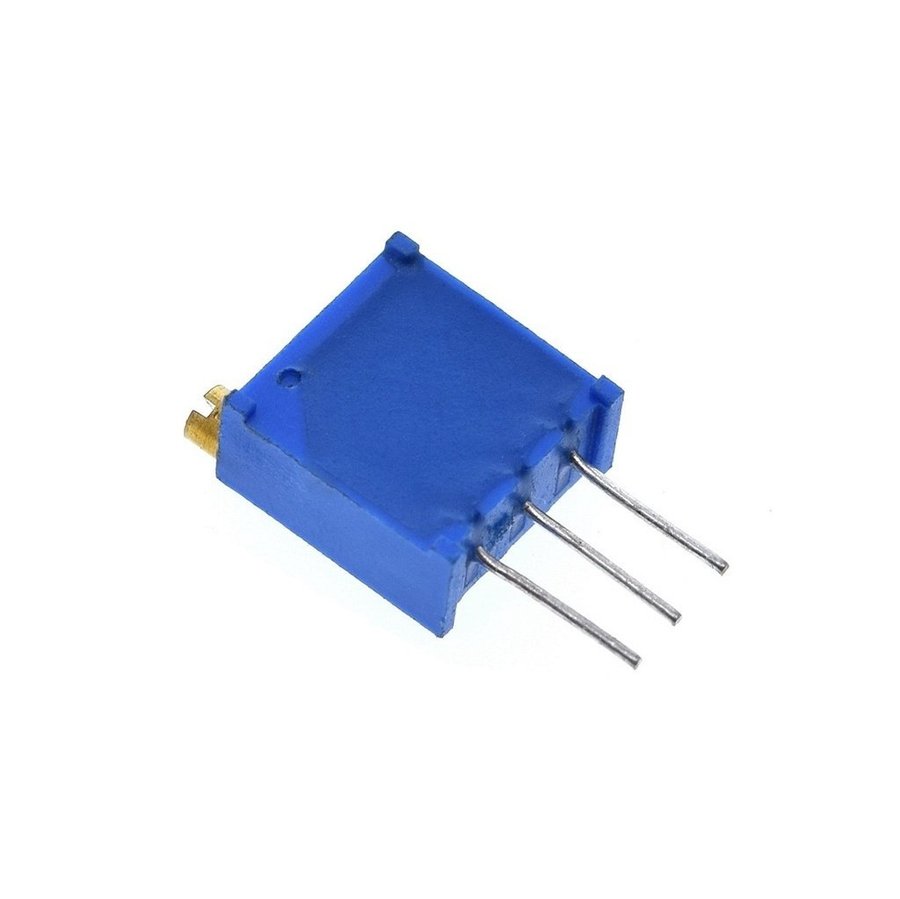

3296W-502 Trimpot – 5K Multiturn Cermet Potentiometer (Bourns)

The 3296W-502 is a precision 5 kO multiturn trimpot potentiometer from Bourns’ sealed 3296W series, designed for applications requiring stable, fine-tune resistance adjustments. This 25-turn cermet potentiometer is ideal for calibration, tuning, and signal conditioning in circuits requiring high reliability and repeatability.

It features a fully sealed ABS plastic housing, low contact resistance, and oxygen-free copper terminals. With its compact 3/8" square footprint and robust mechanical construction, it performs well in demanding environments such as industrial electronics, communication devices, and lab instrumentation.

Key Features:

- 5 kO resistance value with ±10% tolerance
- 25-turn multiturn design for precision adjustments
- Cermet track ensures stability over time and temperature
- Through-hole mounting with PC pin terminals
- Sealed ABS housing – dust and moisture-resistant
- Rated for 0.5 W @ 70 °C (derates to 0 W @ 125 °C)
- ±100 ppm/°C temperature coefficient
- Supports 200 adjustment cycles with minimal resistance drift
- Compact size: 9.50 × 10 × 4.80 mm

Specifications:

Resistance: 5 kO (marked W502)
Power Rating: 0.5 W at 70 °C
Tolerance: ±10%
Track: Cermet
Terminal Type: PC pins (through-hole)
Operating Temp: –55 °C to +125 °C
Max Voltage: 200 V
Weight: ~0.85 g
Color: Blue

Package Contains:

1 × 3296W-502 Trimpot – 5K Multiturn Cermet Potentiometer (Bourns)
