Beskrivning

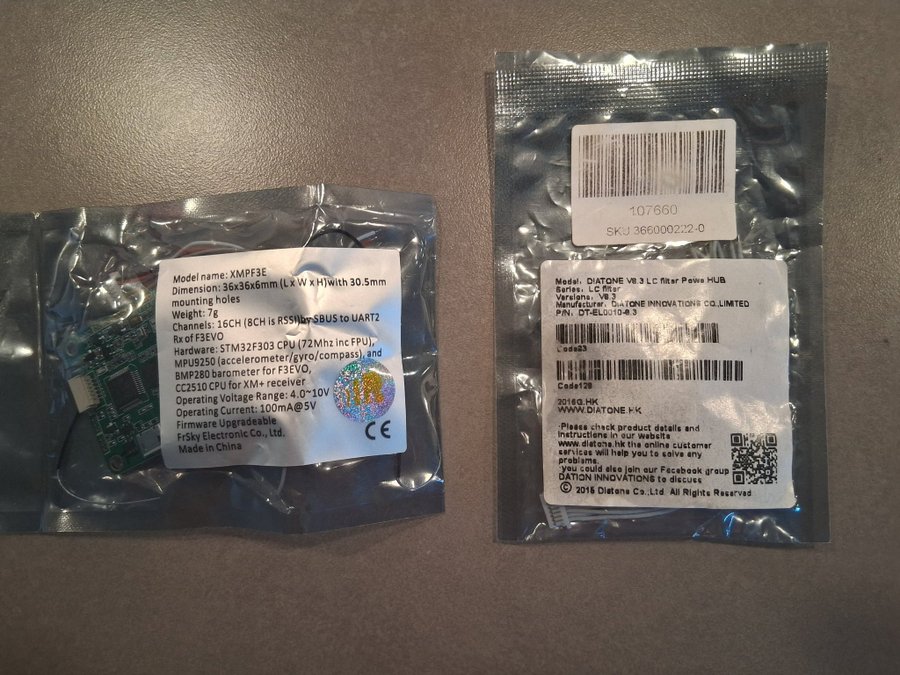

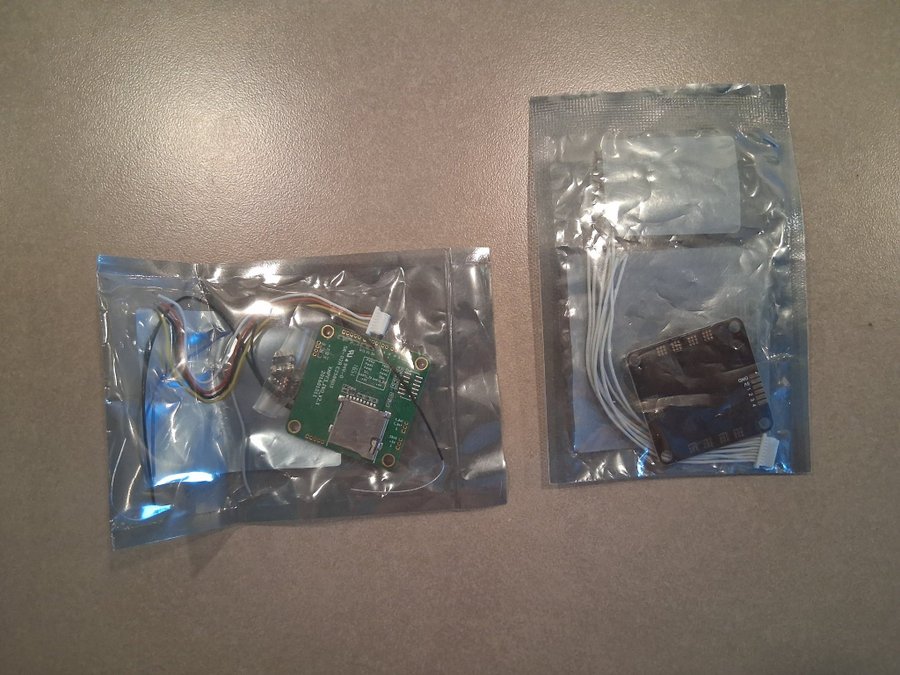

XMF3SE FC inbygd XM+ reciever
The built-in receiver is compatible with FrSky Taranis X9D/X9E/ Horus X12S/XJT radio transmitters in D16 mode. No need for an extra board.
Features:
• Built-in F3EVO and XM+ receiver module
• Features the latest Accelerometer, Gyro and Compass and Baro sensor technology
• XM+ receiver is a one-way receiver (no telemetry), it will receive the commands of Remote Control and send to F3EVO by SBUS (8CH is RSSI) to UART2 Rx of F3EVO
• 6 PWM output signal lines for ESCs and Servos. Arranged for easy wiring on standard pin headers
• Black box data logger
• Micro-SD card slot to log your flights
• Factory firmware betaflight_3.0.0_SPRACINGF3EVO
Specs:
Hardware: STM32F303 CPU (72Mhz inc FPU), MPU9250 (accelerometer/gyro/compass), and BMP280 barometer for F3EVO, CC2510 CPU for XM+ receiver
Compatibility: FrSky Taranis X9D/X9E/ Horus X12S/XJT in D16 mode
Number of Channels: 16CH (8CH is RSSI) by SBUS to UART2 Rx of F3EVO

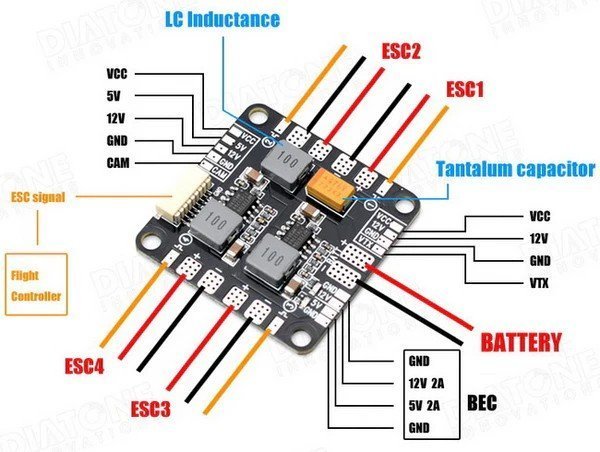

Diatone V8.3 Power Distribution Board with LC Filter.
Features:
Both-sides soldering ESC, convenient to use
2oz copper & 4-layers PCB
Low Ripple current
ESC & Battery solder tabs in pairs.
Solder Bridges of various voltage for Camera & VTX.
DC/DC synchronous buck regulator, Efficiency is up to 95%.
5V & 12V Output LED indicators & Short circuit tolerant.
Specification:
Working Voltage: 3~6S LiPo (11.1-22.2V)
Output Voltage: 5V&12V
Output Current: 2A
ESC outputs: 4
Current output: 4*20A
The built-in receiver is compatible with FrSky Taranis X9D/X9E/ Horus X12S/XJT radio transmitters in D16 mode. No need for an extra board.
Features:
• Built-in F3EVO and XM+ receiver module
• Features the latest Accelerometer, Gyro and Compass and Baro sensor technology
• XM+ receiver is a one-way receiver (no telemetry), it will receive the commands of Remote Control and send to F3EVO by SBUS (8CH is RSSI) to UART2 Rx of F3EVO
• 6 PWM output signal lines for ESCs and Servos. Arranged for easy wiring on standard pin headers
• Black box data logger
• Micro-SD card slot to log your flights
• Factory firmware betaflight_3.0.0_SPRACINGF3EVO
Specs:
Hardware: STM32F303 CPU (72Mhz inc FPU), MPU9250 (accelerometer/gyro/compass), and BMP280 barometer for F3EVO, CC2510 CPU for XM+ receiver
Compatibility: FrSky Taranis X9D/X9E/ Horus X12S/XJT in D16 mode
Number of Channels: 16CH (8CH is RSSI) by SBUS to UART2 Rx of F3EVO
Diatone V8.3 Power Distribution Board with LC Filter.
Features:
Both-sides soldering ESC, convenient to use
2oz copper & 4-layers PCB
Low Ripple current
ESC & Battery solder tabs in pairs.
Solder Bridges of various voltage for Camera & VTX.
DC/DC synchronous buck regulator, Efficiency is up to 95%.
5V & 12V Output LED indicators & Short circuit tolerant.
Specification:
Working Voltage: 3~6S LiPo (11.1-22.2V)
Output Voltage: 5V&12V
Output Current: 2A
ESC outputs: 4
Current output: 4*20A

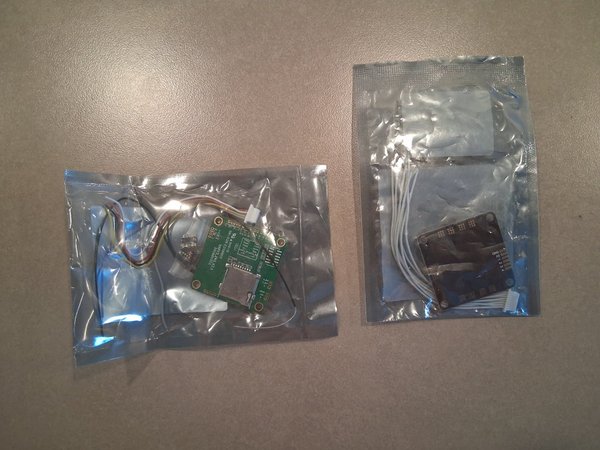

XMF3SE FC & DATRONE v8.3 LC Filter
Slutar 19 jun 18:26
Utropspris
∙0 Bud
100 kr
107 kr med köparskydd.
