16GB RGB Kingston Fury Beast DDR5 RAM(2x8GB) DDR5-4800 CL38 288-Pin DIMM

Oanvänd funkar bra

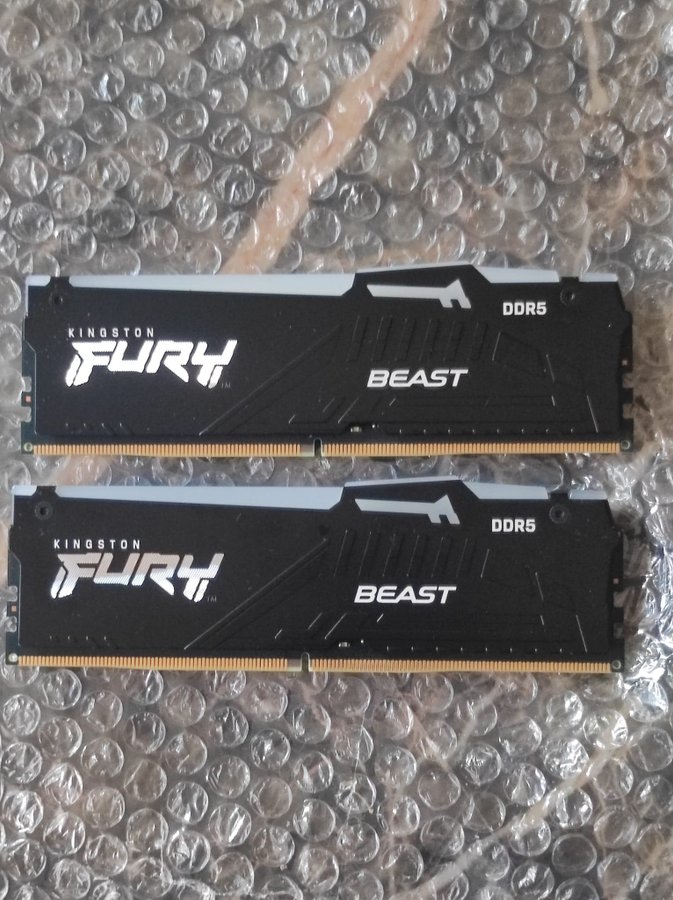

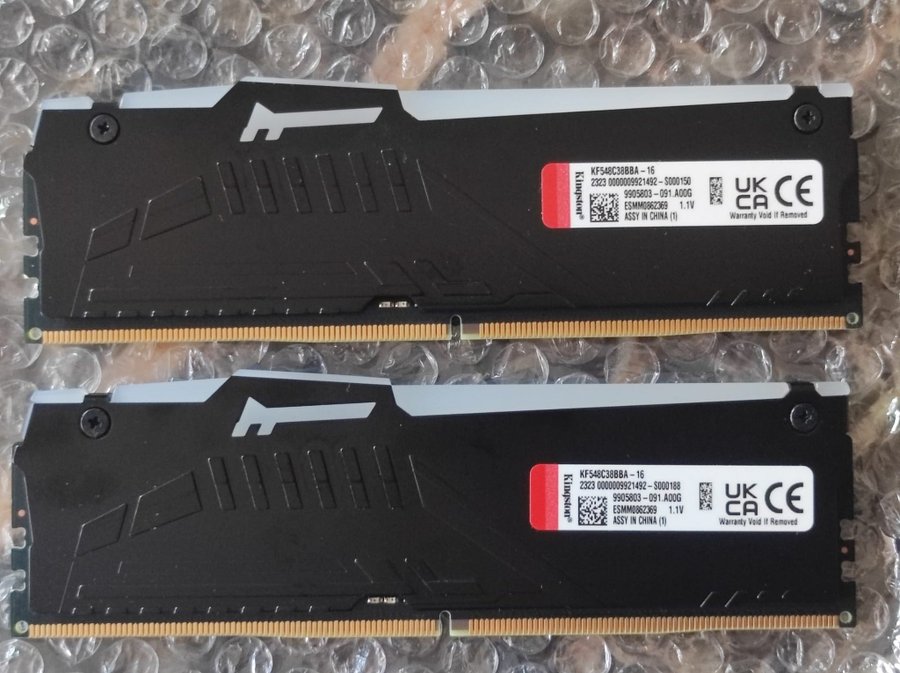

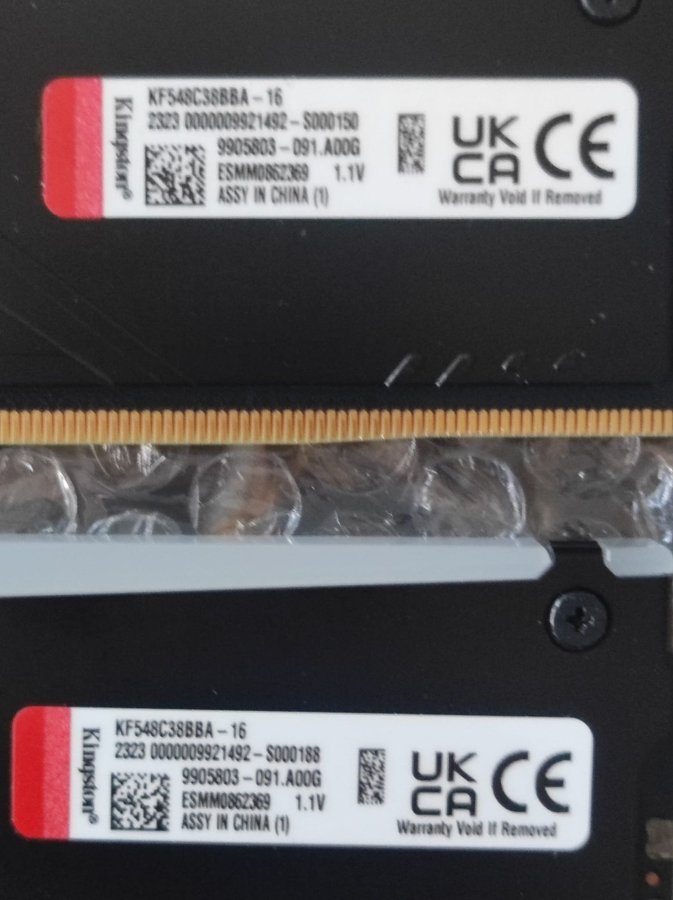

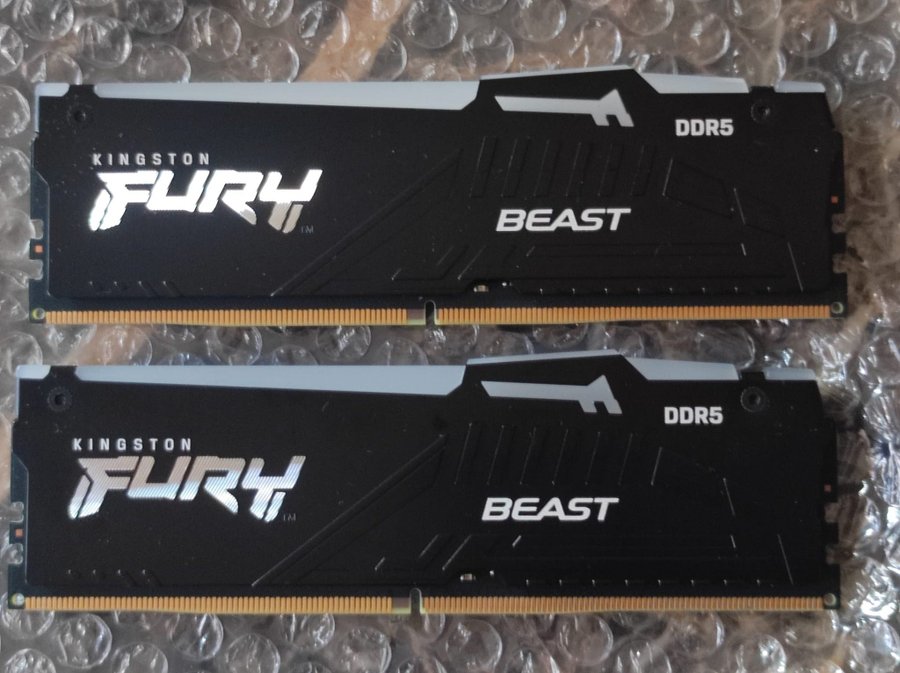

Medföljer: Det som syns på bildrna

___________________________________________________________________
SPECIFICATIONS:

https://www.kingston.com/datasheets/KF548C38BBA-16.pdf

KF548C38BBA-16
16GB 2G x 64-Bit
DDR5-4800 CL38 288-Pin DIMM

Kingston FURY KF548C38BBA-16 is a 2G x 64-bit (16GB)
DDR5-4800 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
The module supports Intel® Extreme Memory Profiles (Intel®
XMP) 3.0. Each module has been tested to run at DDR5-4800 at a
low latency timing of 38-38-38 at 1.1V. Additional timing parameters
are shown in the Plug-N-Play (PnP) Timing Parameters section
below. Each 288-pin DIMM uses gold contact fingers. The
JEDEC standard electrical and mechanical specifications are
as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
38 cycles
48ns(min.)
295ns(min.)
29.12ns(min.)
94 V - 0
0o
C to +85o
C
-55o
C to +100o
C
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V
• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66” (42.23mm), w/heatsink
Document No. 4810512B 08/10/22 Page 1 kingston.com
M

SPECIFICATIONS
KF548C38BBA-16
16GB 2G x 64-Bit
DDR5-4800 CL38 288-Pin DIMM
Continued >>
FEATURES
Kingston FURY KF548C38BBA-16 is a 2G x 64-bit (16GB)
DDR5-4800 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory
module, based on eight 2G x 8-bit FBGA components per module.
The module supports Intel® Extreme Memory Profiles (Intel®
XMP) 3.0. Each module has been tested to run at DDR5-4800 at a
low latency timing of 38-38-38 at 1.1V. Additional timing parameters
are shown in the Plug-N-Play (PnP) Timing Parameters section
below. Each 288-pin DIMM uses gold contact fingers. The
JEDEC standard electrical and mechanical specifications are
as follows:

• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V
• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66” (42.23mm), w/heatsink
Document No. 4810512B 08/10/22 Page 1 kingston.com
