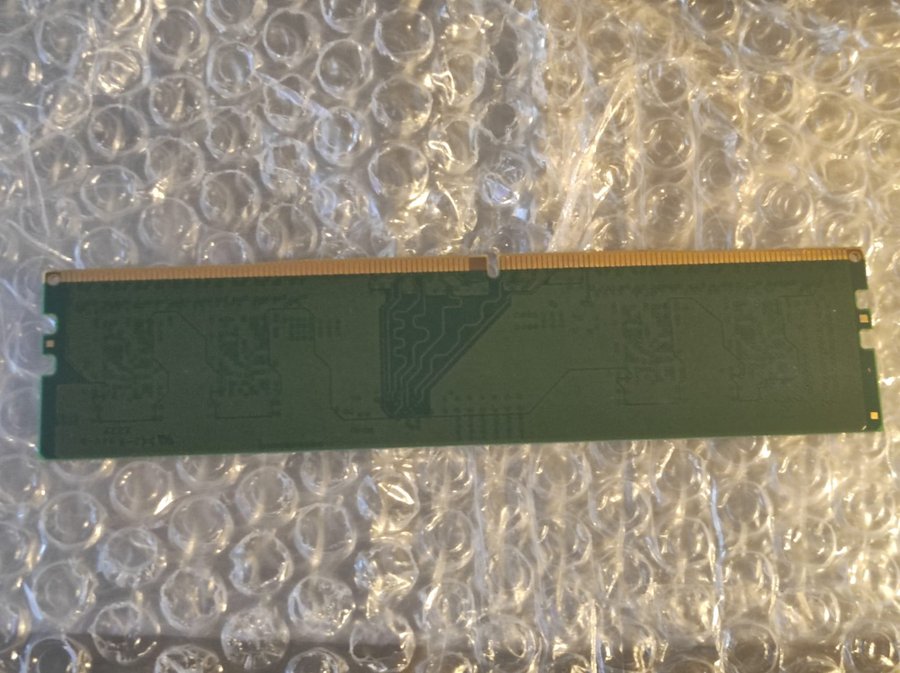

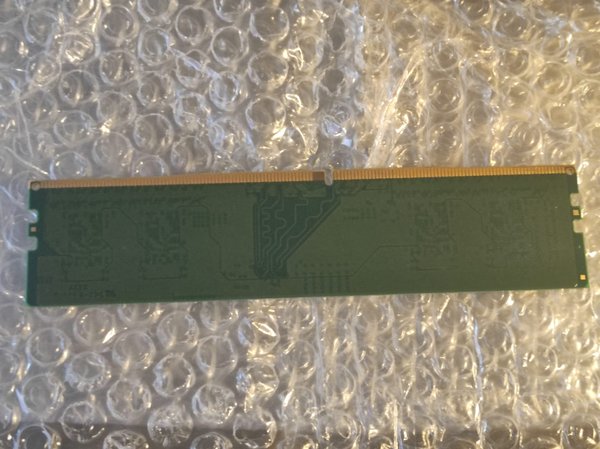

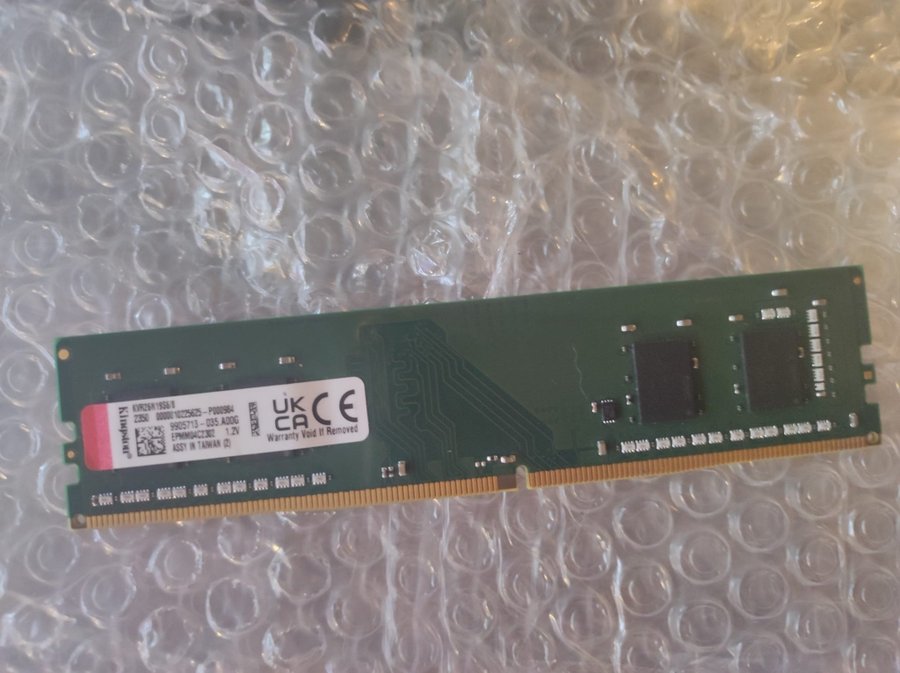

1 st 8GB 2666MHz DDR4 DRAM Kingston 64-Bit PC4-2666 CL19 288-Pin DIMM

Funkar bra

Medföljer: Det som syns på bildrna

___________________________________________________________________

"Jag ansvarar ej för postens slarv"
I de flesta fall skickas varan samma dag före posten hämtas hos ombud förutom helgdagar då posten är stängd.

___________________________________________________________________

SPECIFICATIONS

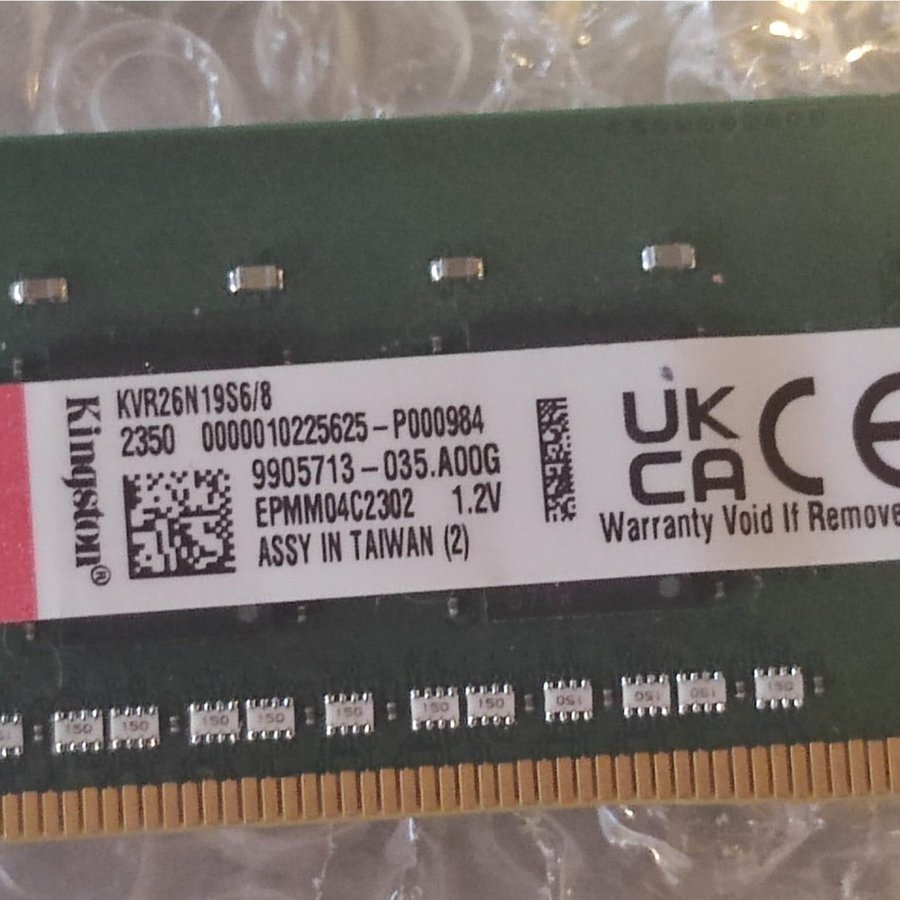

KVR26N19S6/8
8GB 1Rx16 1G x 64-Bit PC4-2666
CL19 288-Pin DIMM
Continued >>
FEATURES
This document describes ValueRAM's KVR26N19S6/8 is a 1G x
64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM),
1Rx16, memory module, based on four 1G x 16-bit FBGA
components. The SPD is programmed to JEDEC standard
latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin
DIMM uses gold contact fingers. The electrical and mechanical
specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
19 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
94 V - 0
0o
C to +85o
C
-55o
C to +100o
C
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
Document No. VALUERAM1638C 05/27/22 Page 1 kingston.com
