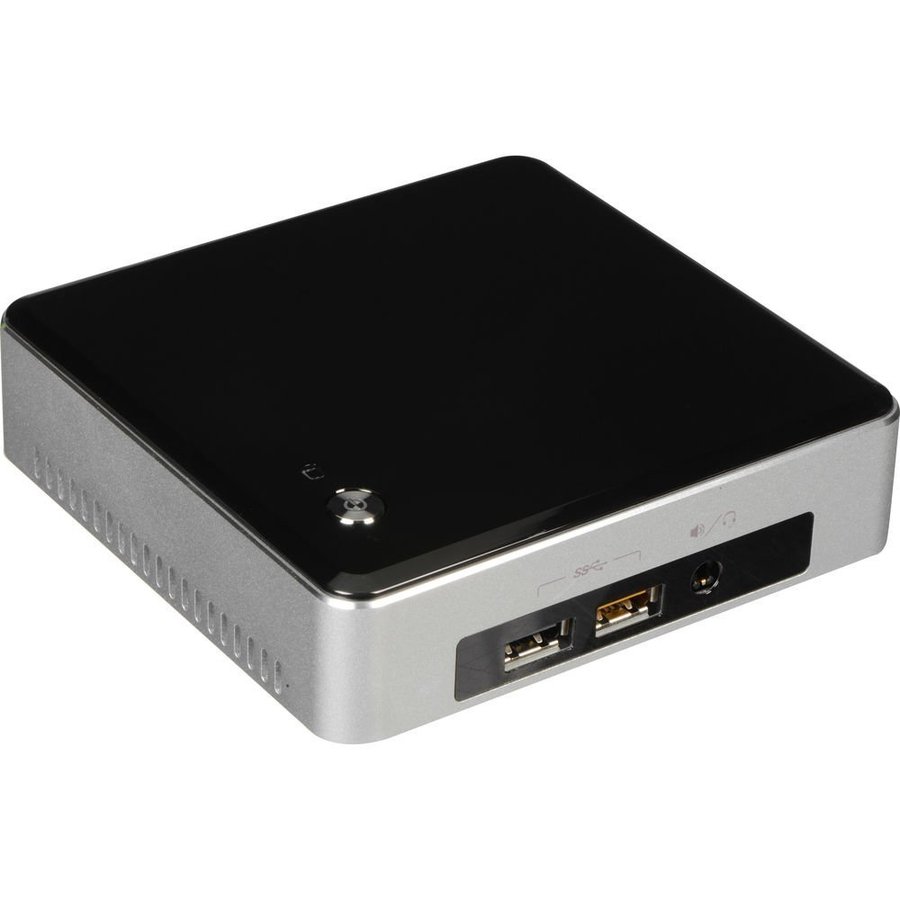

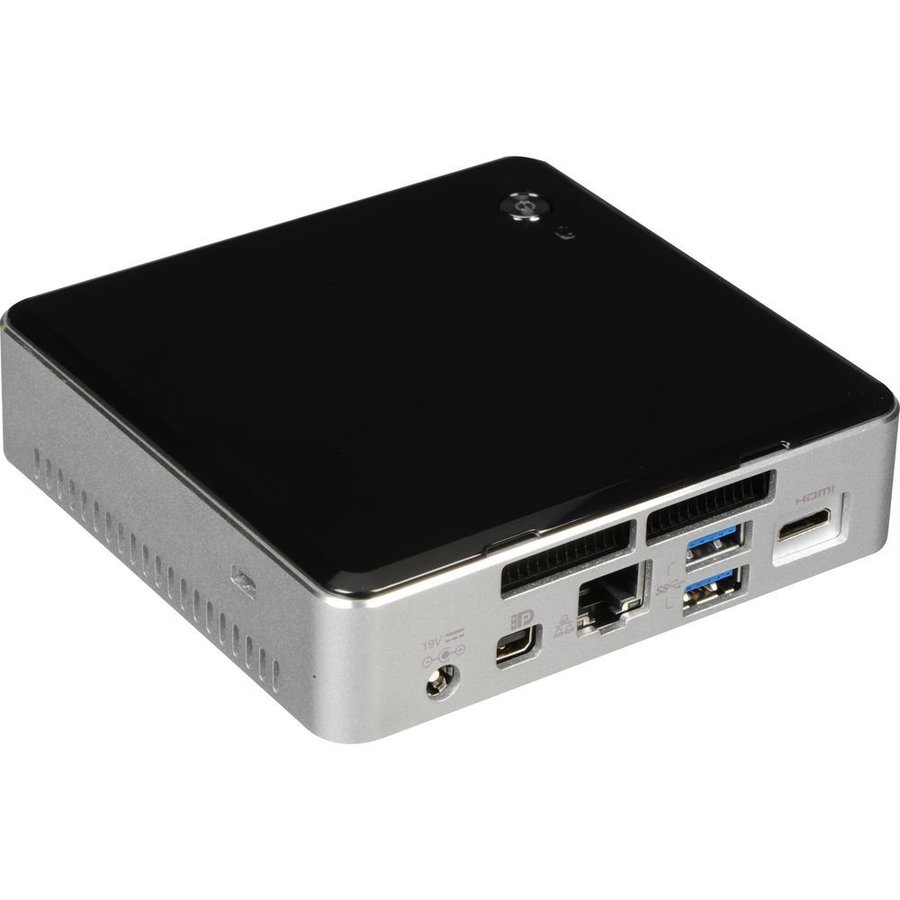

Intel NUC5i3RYK Mini PC Intel i3-5gen 128GB SSD 4GB RAM

Datorn fungerar som den ska. Nätaggregat ingår.

Processor Included
Intel® Core™ i3-5010U Processor (3M Cache, 2.10 GHz)
Board Number
NUC5i3RYB
Supported Operating Systems Windows 10, 64-bit
Supplemental Information
Marketing Status
Discontinued
Launch Date
Q1'15
Embedded Options Available
No
CPU Specifications
Total Cores
2
Total Threads
4
Processor Base Frequency
2.10 GHz
Memory & Storage
Max Memory Size (dependent on memory type)
4 GB
# of Memory Slots
2
Memory Types
DDR3L-1333/1600 1.35V SO-DIMM
Max # of Memory Channels
2
Max Memory Bandwidth
25.6 GB/s
ECC Memory Supported ‡
No
Internal Drive Form Factor
M.2 SSD
# of Internal Drives Supported
1
M.2 Card Slot (storage)
22x42/60/80
I/O Specifications

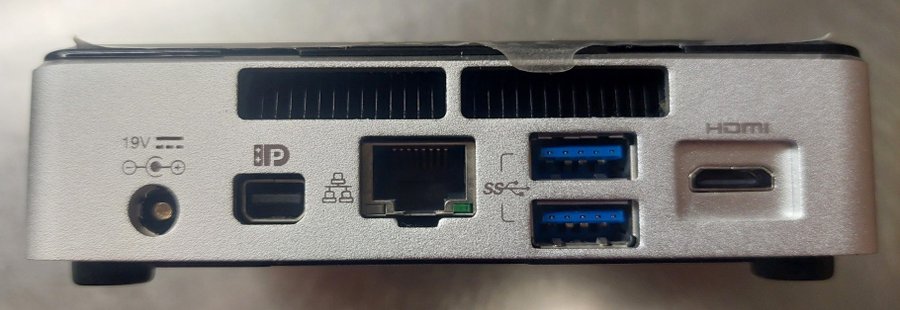

Graphics Output
Mini-DP 1.2; Mini-HDMI 1.4a
# of Displays Supported ‡
3
# of USB Ports
6
USB Configuration

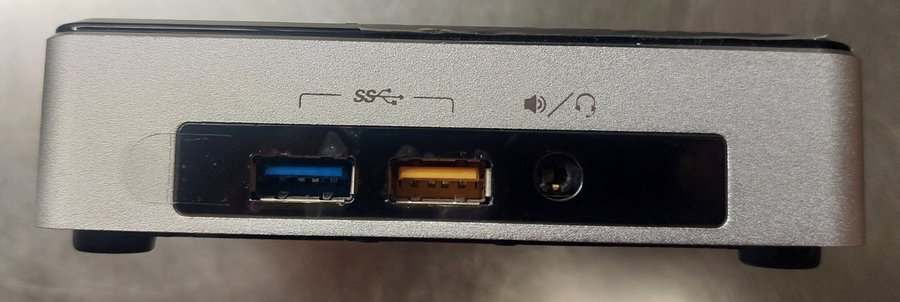

2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision
2.0, 3.0
USB 2.0 Configuration (External + Internal)
0 + 2
USB 3.0 Configuration (External + Internal)
2B 2F + 0
Total # of SATA Ports
2
Max # of SATA 6.0 Gb/s Ports
2
RAID Configuration
N/A
Audio (back channel + front channel)
7.1 digital (mHDMI mDP); L+R+mic (F)
Integrated LAN
Intel® Ethernet Connection I218-V
Wireless Included
Intel® Dual Band Wireless-AC 7265
Bluetooth Version
4.2
Consumer Infrared Rx Sensor
Yes
Additional Headers
2x USB2.0, AUX_PWR
Expansion Options
PCI Express Revision
Gen2
PCI Express Configurations ‡
M.2 slot with PCIe x4 lanes
Package Specifications
TDP
15 W
DC Input Voltage Supported
12-19 VDC
Board Form Factor
UCFF (4" x 4")
Advanced Technologies
Intel® HD Audio Technology
Yes
Intel® Rapid Storage Technology
Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® Virtualization Technology (VT-x) ‡
Yes
