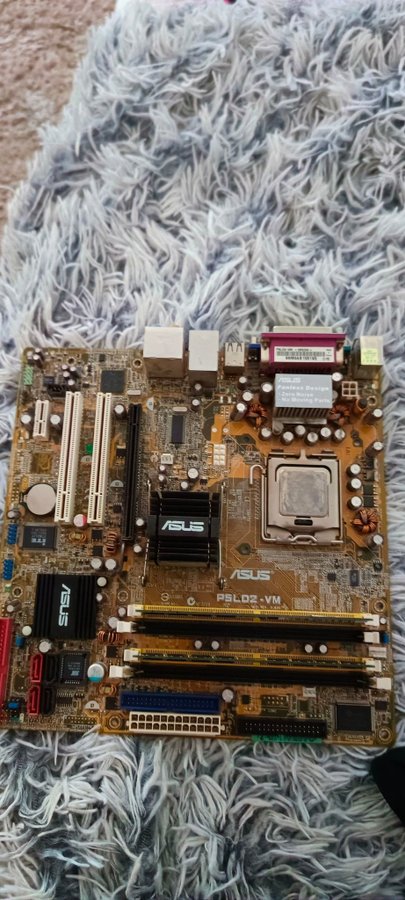

ASUS P5LD2-VM Motherboard Specifications

- Form Factor: MicroATX
- CPU Socket: LGA 775
- Supported Processors:
- Intel Pentium 4
- Intel Celeron D
- Intel Core 2 Duo (limited support)
- Chipset: Intel 945G + ICH7

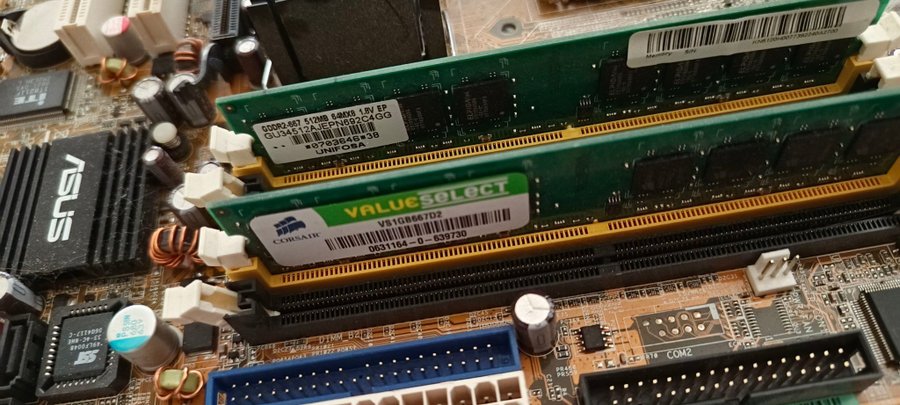

- Memory Support:
- 4 × DDR2 DIMM slots (dual channel)
- Up to 4GB total
- Supported speeds: DDR2 533 / 667 MHz
- Expansion Slots:
- 1 × PCI Express x16
- 1 × PCI Express x1
- 2 × PCI
- Storage Interfaces:
- 4 × SATA 1.5 Gb/s ports
- 1 × IDE connector (for older HDDs or optical drives)
- Integrated Graphics: Intel GMA 950
- Audio: Integrated Realtek ALC882 6-channel HD audio
- LAN: Integrated Gigabit Ethernet (10/100/1000 Mbps)
- Rear I/O Ports:
- 1 × VGA
- 4 × USB 2.0
- 1 × Ethernet (RJ-45)
- 3 × Audio jacks
- 1 × Parallel port (pink)
- 1 × Serial port (white)
- Power Connector: 24-pin ATX main power + 4-pin CPU power
- BIOS: AMI BIOS with support for Plug & Play, ACPI, and more

---

This board was popular in the mid-2000s and is now mostly used for legacy systems, hobbyist builds, or educational purposes. If you're planning to use it, make sure your components (CPU, RAM, GPU) are compatible with older
