Huawei Quidway R1760 Router

Huawei Quidway R1760 router.

Modell: R1760

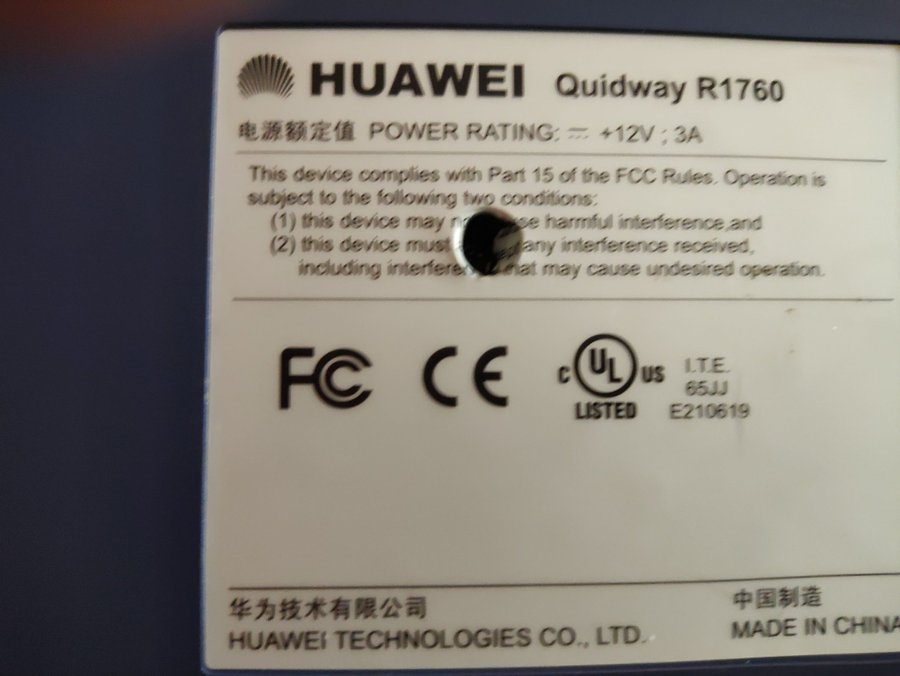

Strömförsörjning: +12V; 3A

The Huawei Quidway R1760 is a router with 2 SIC (Serial Interface Card) slots and 1 MIM (Multifunctional Interface Module) slot, capable of supporting various low-speed service interfaces for leased lines like DDN, Frame Relay, PSTN, and ISDN. It features 128MB of SDRAM, 32MB of flash memory, and comes with fixed interfaces including one 10/100Mbps Ethernet port, a synchronous/asynchronous serial interface, an AUX port, a console port, and two additional 10/100Mbps Ethernet interfaces.
Key Specifications:
Module Slots: 2 SIC slots, 1 MIM slot
Memory: 128MB SDRAM, 32MB Flash

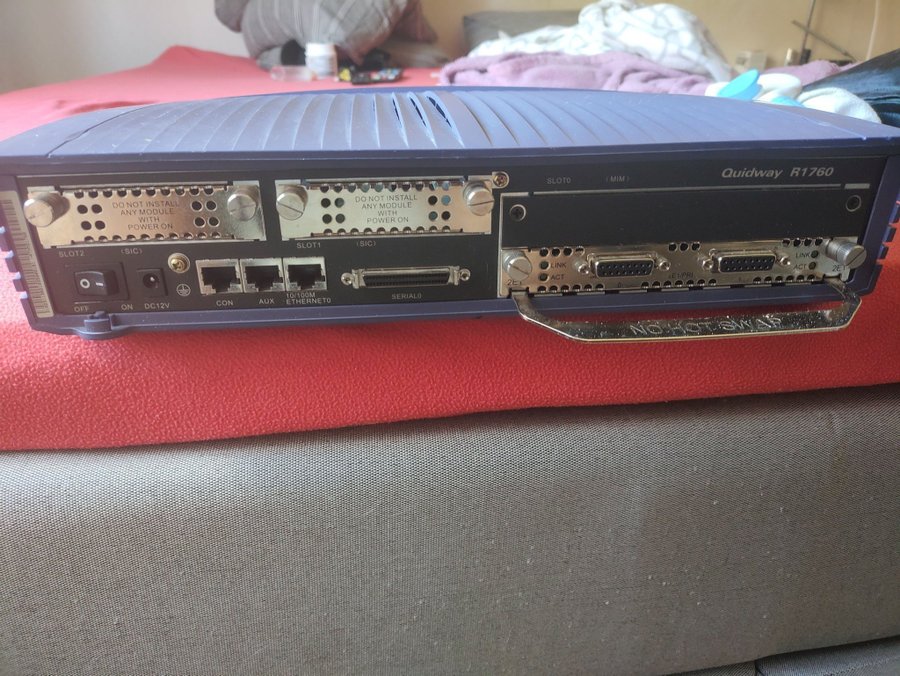

Fixed Interfaces:
1 x 10/100Mbps Ethernet port
1 x Synchronous/Asynchronous Serial Interface
1 x AUX Port
1 x Console Port
2 x 10/100Mbps Ethernet Interfaces
Dimensions: 44. 2 x 44.4 x 31. 5 cm (W x H x D)
Weight: 6kg
Power Input: AC 100V-240V (50/60Hz) and DC -48V to -60V
Features:
Modular structure
High-speed CPU technology
Fast routing mechanism
Support for leased line services (DDN, Frame Relay)
Support for dial-up line services (PSTN, ISDN)
