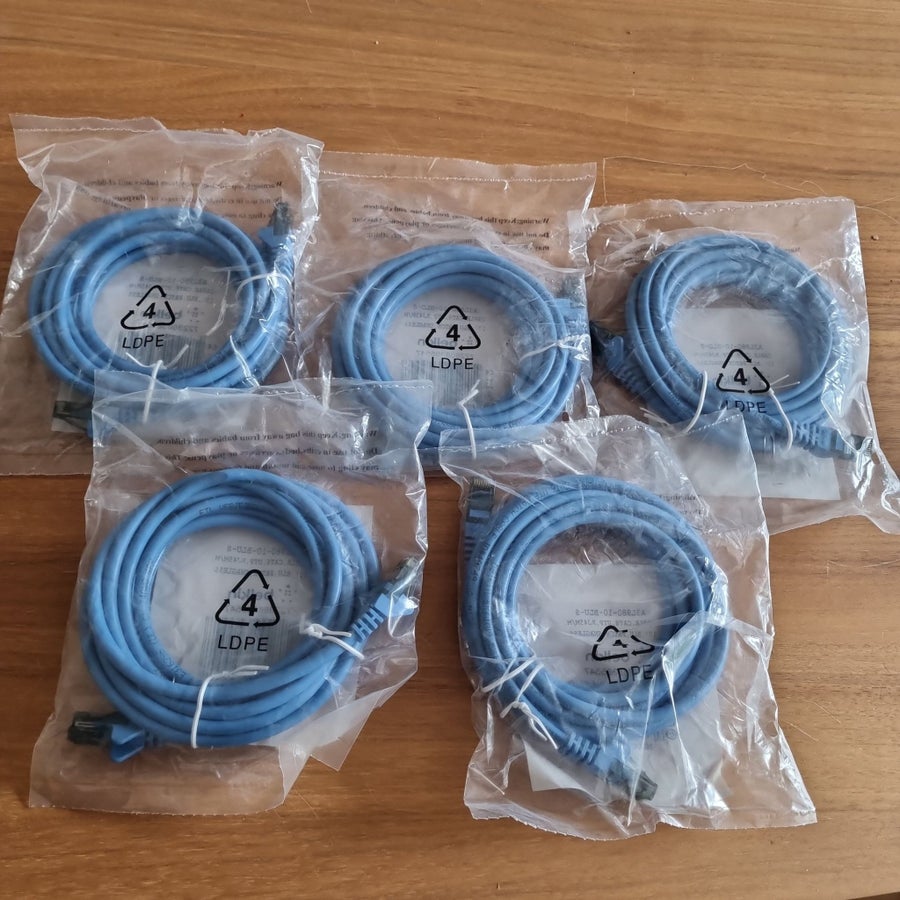

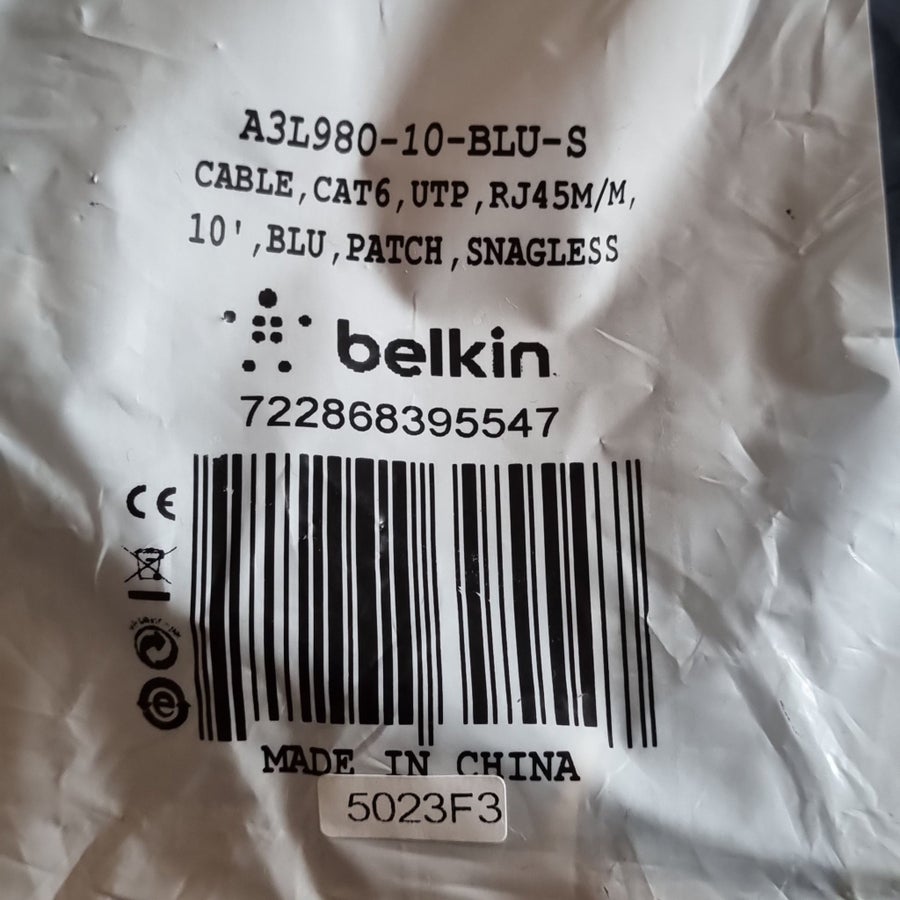

Belkin Patchkablar x 5st - Cat6 / 3Meter

Nya och ej använda.

Cable Characteristic
Unshielded twisted pair (UTP)

Cable Type
Cat 6

Characteristic Impedence
100±15O @ 1 ~ 550MHz
100±15O @ 1 ~ 550MHz

Conductor Construction
Bare Stranded Copper

Conductor Resistance
93.8O/km/20°C max

Conductor Size
24AWG x 4pairs

Connector on First End

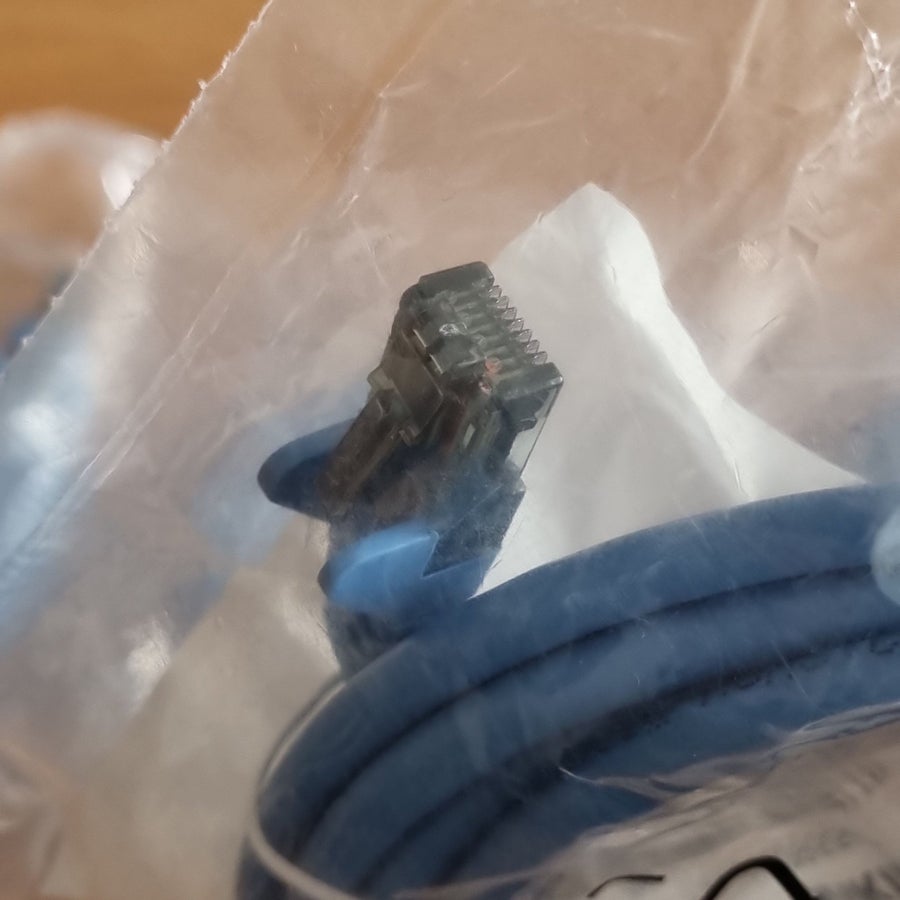

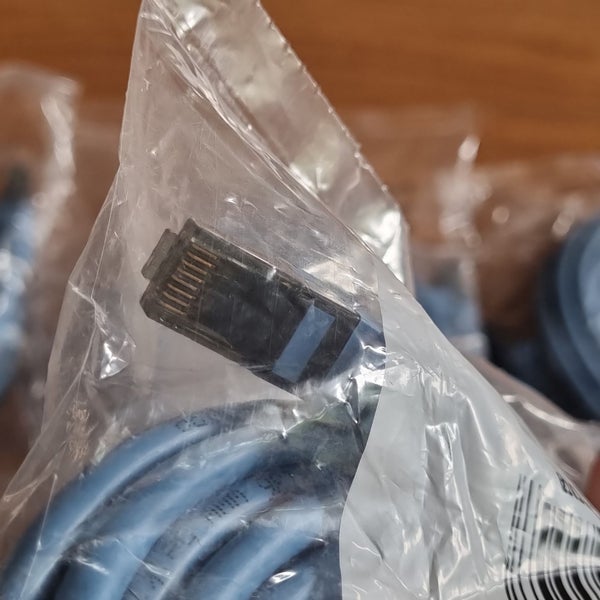

1 x RJ-45 - male

Connector on Second End
1 x RJ-45 - male

Connectors
RJ45

Dielectric Strength
AC 1.5kV

Flame Retardant Test
CM

Insulation Material
HDPE

Jacket Diameter
5.9±0.15mm

Jacket Material
PVC

Mutual Capacitance
56pF/m max

Propagation Delay
536nS/100m max @ 550MHz

Spark Test
2.5kV

Standards Compliance
ISO/IEC 11801; TIA/EIA-568-B.2-1

Structural Return Loss
8.6dB min at 550MHz
