3x Mounting bracket compatible with Aruba 5xx access points

2-4 working days shipping with tracking. 0% VAT invoice and VAT refund available with valid EU VAT number.
Available quantity: more than 10, contact for custom multiple item listing. See below for more info:

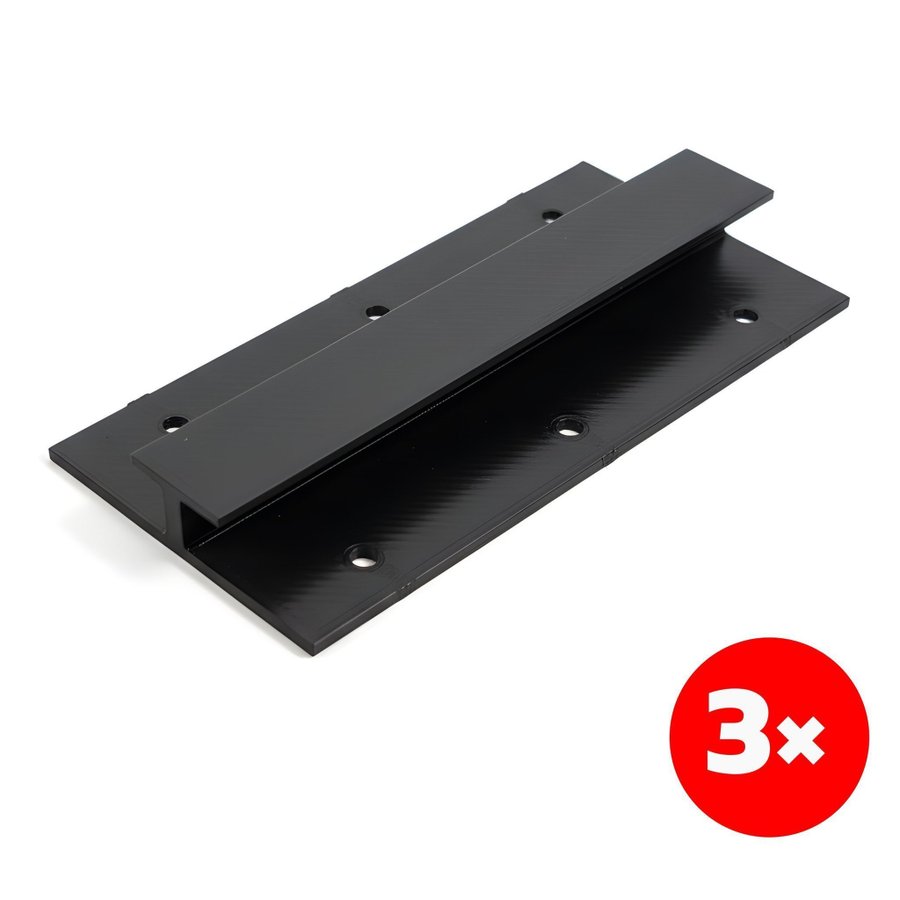

Mounting bracket compatible with Aruba 5xx access points

The mounting bracket is compatible with access points from the Aruba 5xx series, including the Aruba AP-515.

It replaces the original Aruba type D or E mounting bracket.

Prepared mounting holes allow the bracket to be attached to the installation surface, e.g., a ceiling.

The bracket is made of polyethylene terephthalate using Fused Deposition Modeling (FDM) technology.

The product complies with the applicable European Union regulations on product safety and the restriction of chemicals (REACH).

Installation instructions:
1. Attach the bracket to the installation surface using the prepared holes.

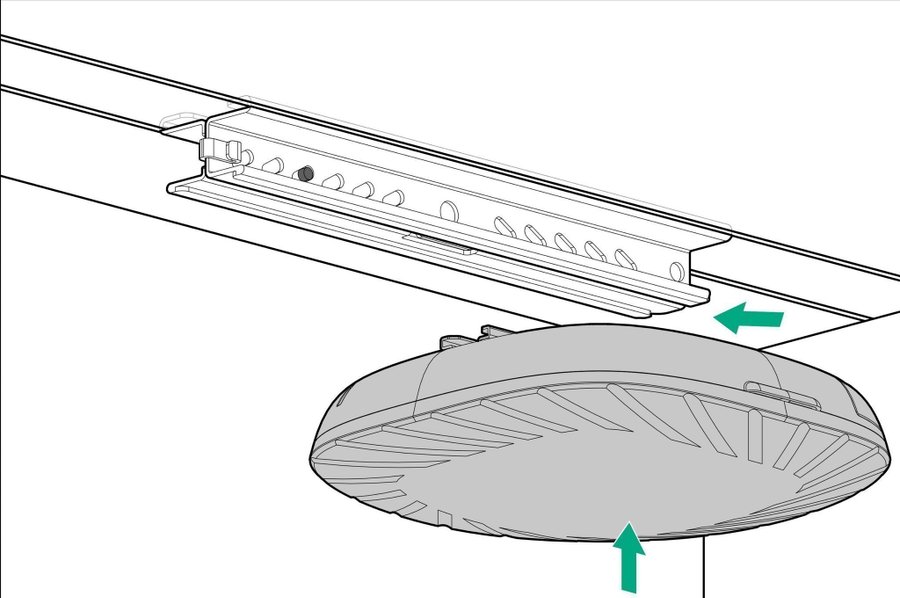

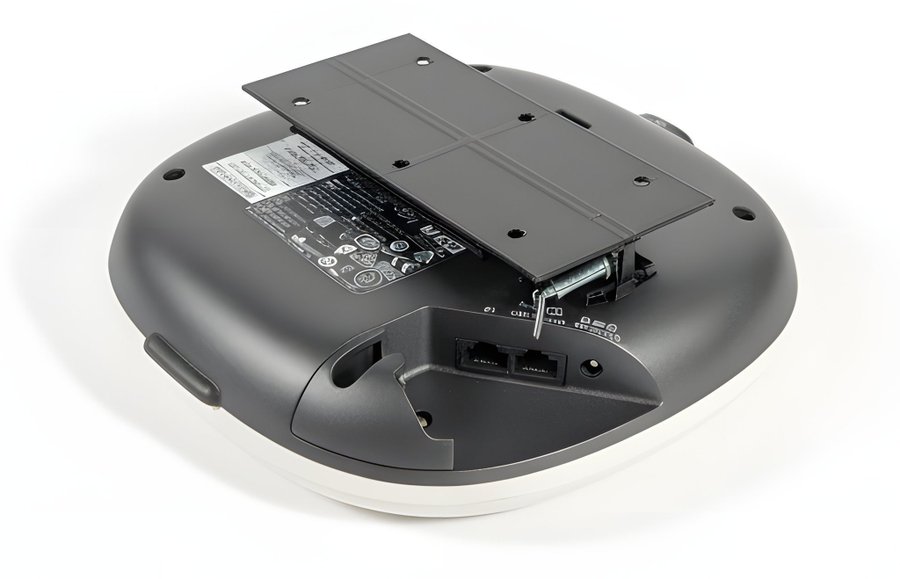

2. Pull back the security latch, then slide the access point with the installed mounting adapter (hardware included with the access point) into the bracket's rail.
3. The security latch will click into the locking hole, securing the access point in place.
4. Optionally, tighten the central locking screw.

Removal instructions:
1. Unscrew the central locking screw, if tightened.
2. Pull back the security latch and slide the access point out of the bracket's rail.
3. Dismount the bracket.

Safety Information:
- Installation should only be performed by a qualified professional in accordance with local building codes.
- The installer is responsible for ensuring that the mounting surface is capable of safely supporting the weight of the access point and bracket.
