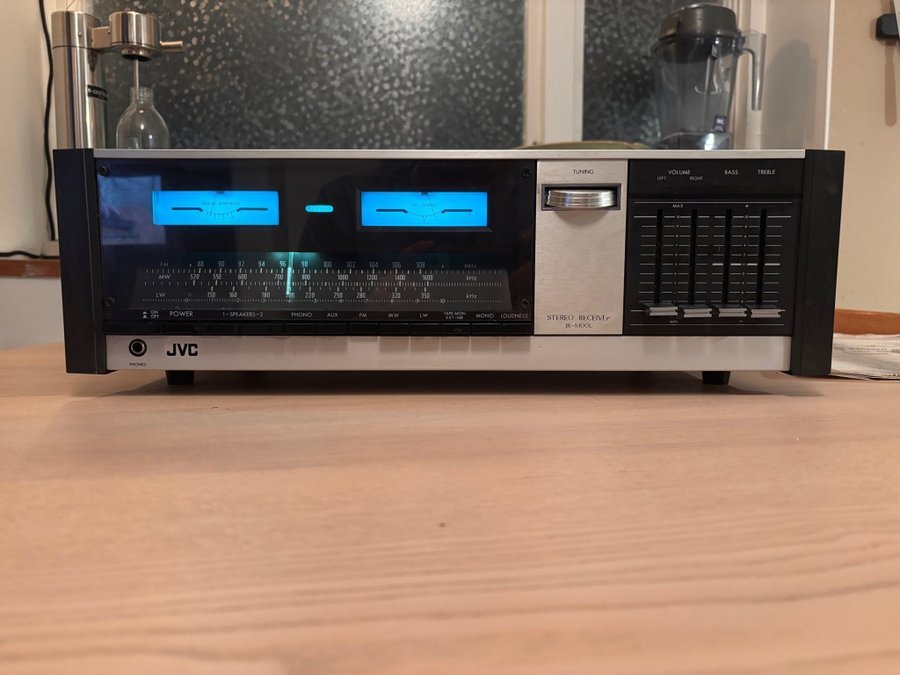

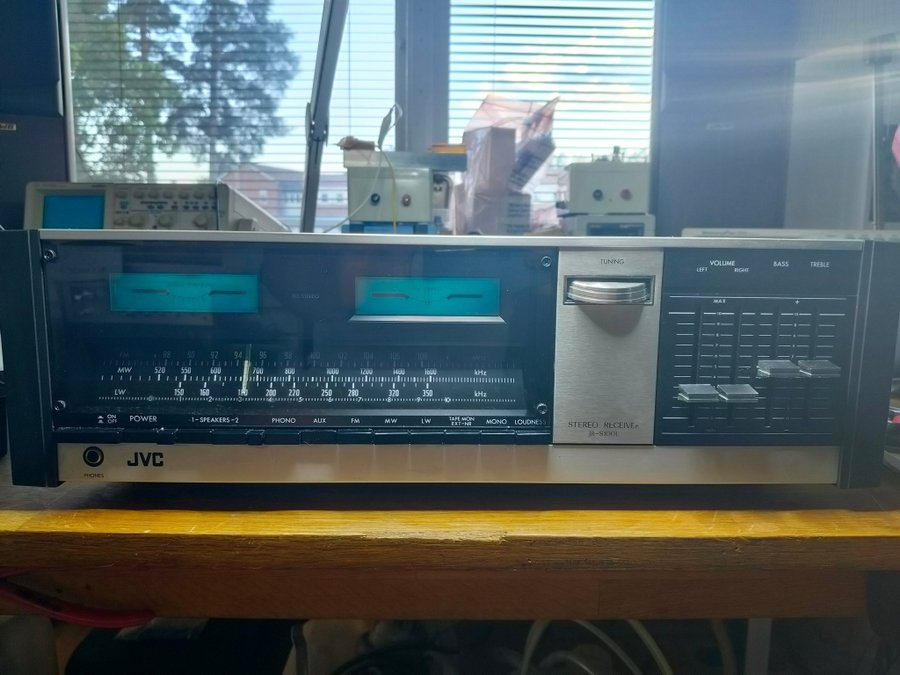

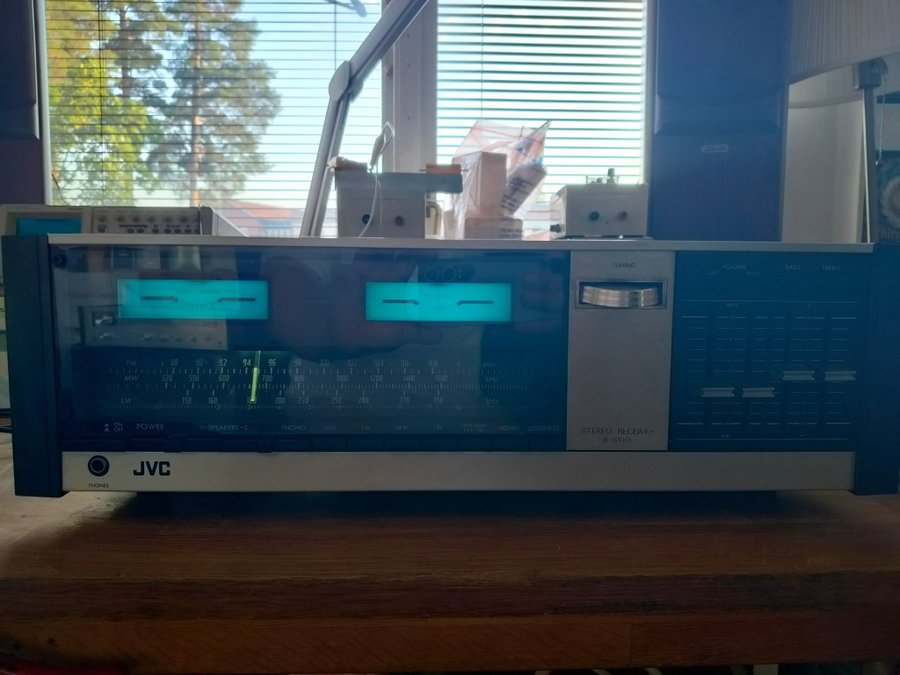

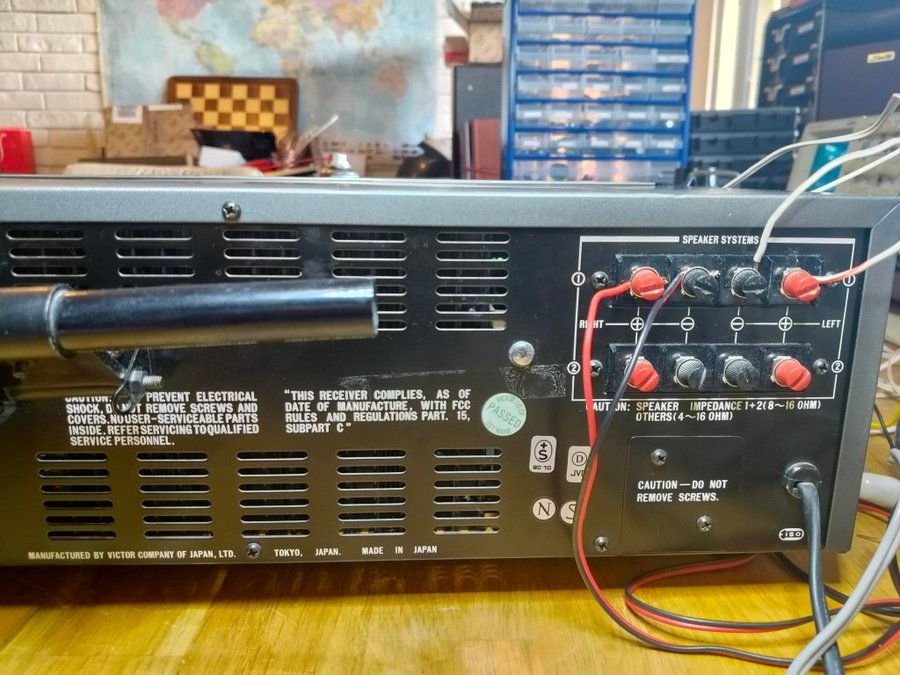

Säljer en JVC JR-S100L stereo receiver. Denna modell är känd för sin klassiska design och funktionalitet. Perfekt för den som uppskattar vintage ljudutrustning.

Väldigt trevlig vintage förstärkare som levererar en helst naturligt musikalisk upplevelse.
Den har varit rengört, testad, servad och justerad.
Effektive output är 30W per kanal att 8 ohm högtallar impedans innan distorsion.

Data General

Manufacturer: JVCModel: JR-S 100 L (L = with long wave)Years of manufacture: 1976 - 1978Made in: JapanColor: Silver / BlackPower consumption:Dimensions(WxHxD): 500 x 160 x 359 mm.Weight: 7.8 kgOriginal price approx.: 200 US-$, 800 DM

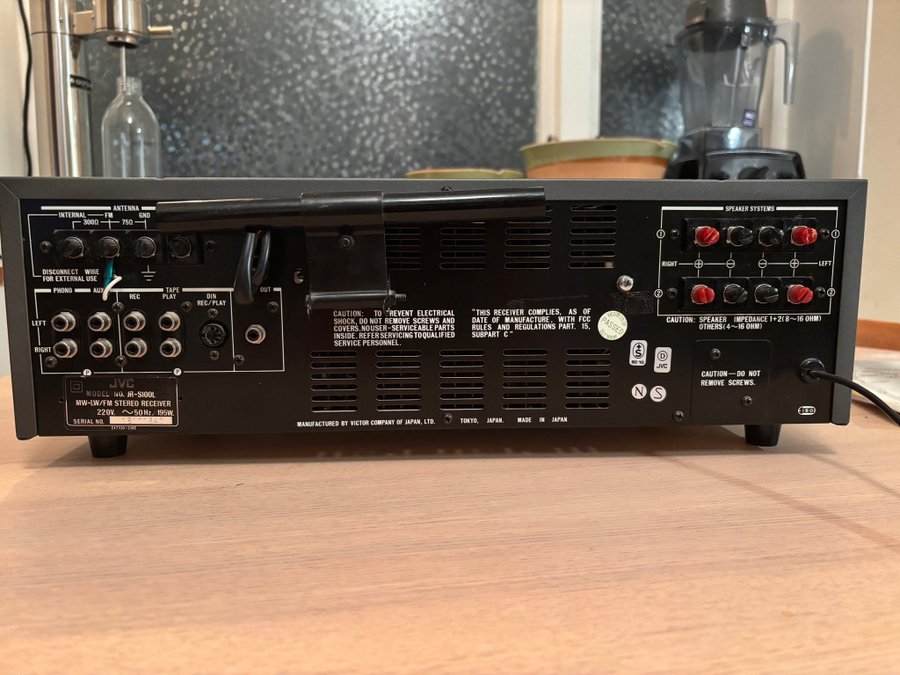

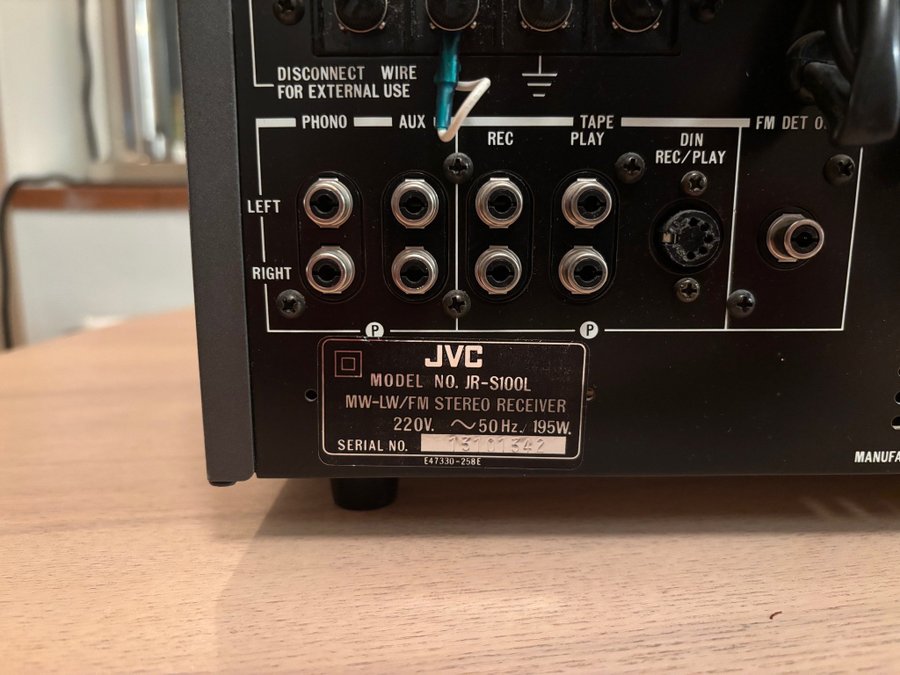

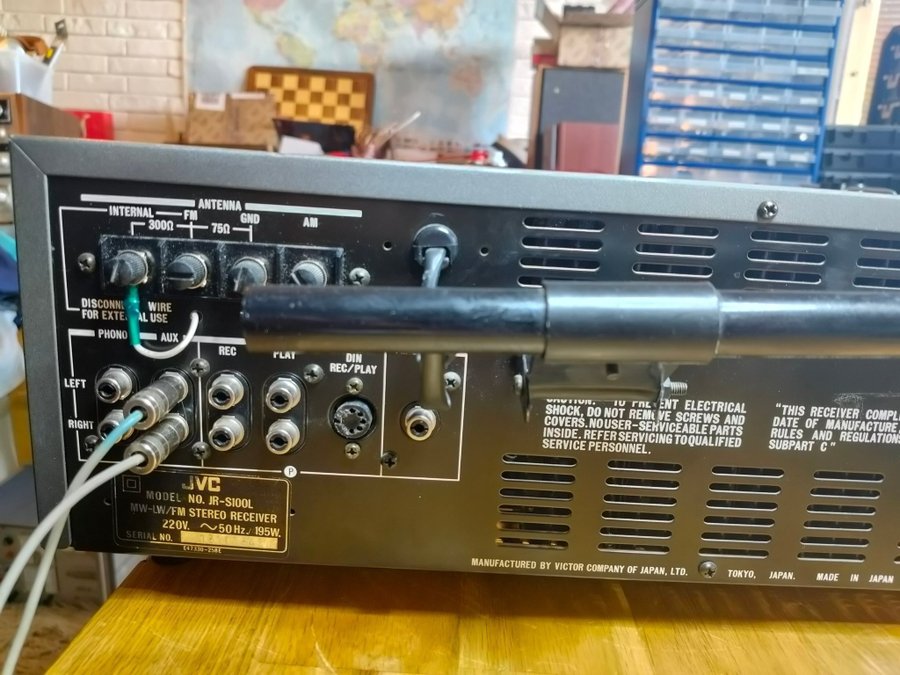

Connections:

Number of inputs:Phono MM: 2.5 mV, 50 kOhm, 170 mV max.AUX: 180 mV, 40 kOhm, max. 700 mVTape Play: 180 mV, 40 kOhm, max. 700 mVTape Play DIN:

Antenna: 75 Ohm, 300 OhmNumber of outputs:Tape Rec: 150 mV, 60 kOhm.Tape Rec DIN: 30 mV, 80 kOhmFM Det Out: 100 mV, 10 kOhm

Headphones: 8 - 16 Ohm2 pairs of speakers
Technical Data

Amplifier

Continuous power (at distortion)8 Ohm: 2x 22 Watt 4 Ohm: 2x 25 Watt

Dynamic power8 Ohm:4 Ohm:Total harmonic distortion: 0.5% at rated powerAttenuation factor: 40 at 8 OhmFrequency response: 10 - 50,000 Hz (+0 / -3dB)Signal-to-noise ratio:Phono: 75 dBAUX: 95 dB

Tape: 95 dBTone control:Bass: ± 10 dB at 100 HzTreble: ± 10 dB at 10 kHzLoudness: yes
Tuner

Reception: FM/MW/LWFrequencies:FM: 88 - 108 MHzMW: 535 - 1605 KHzLW: 150 - 350 kHzInput sensitivity:FM: 1.8µVMW: 30µVLW: 100µV

Frequency response: 30-15,000 Hz (-3 dB)Distortion factor: 0.4% (mono), 0.6% (stereo) Signal-to-noise ratio: 60 dB (mono), 58 dB (stereo)

Channel separation: 40 dB at 1 kHzSelectivity: 55 dB at 400 kHzCo-wave selection: 1.5 dBSpurious wave selection: 50 dBImage frequency attenuation: 60 dBIF attenuation: 80 dBAM suppression: 45 dB
Special Features

3-fold overload protectionFM mutingTuning aids: Field Strength and Ratio Mid-Instrument
