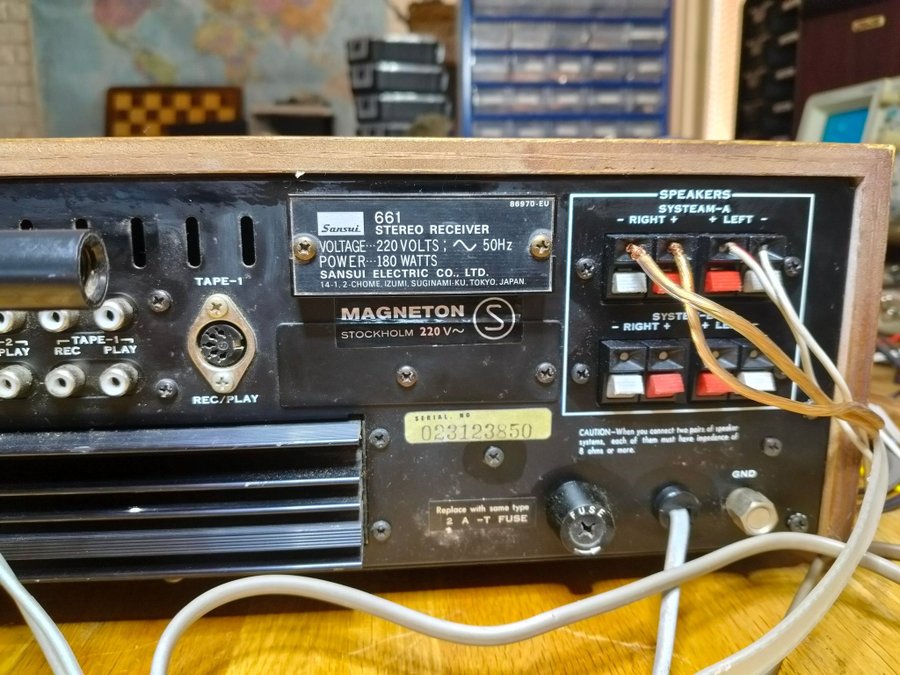

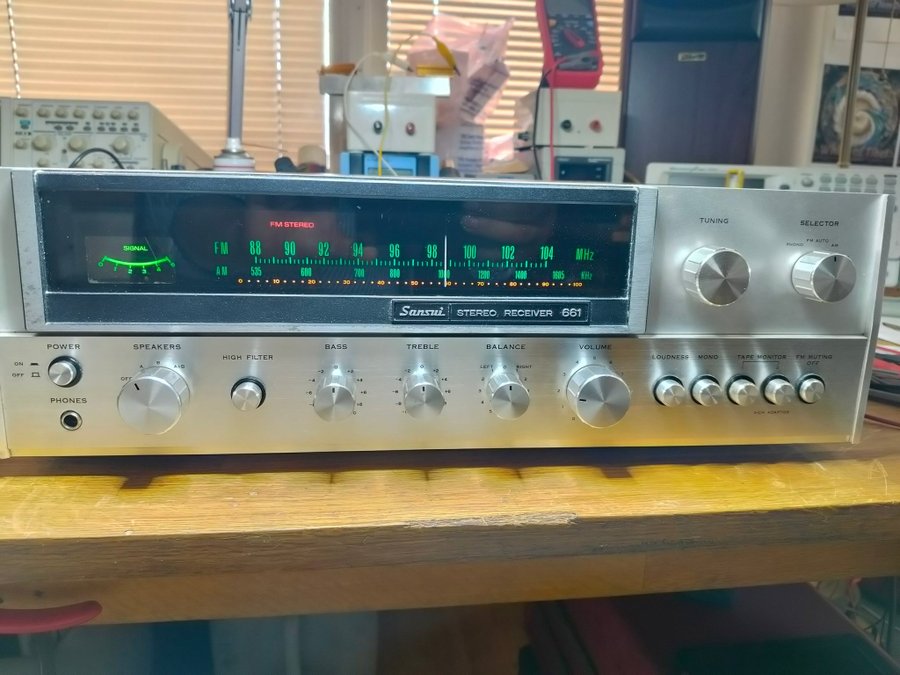

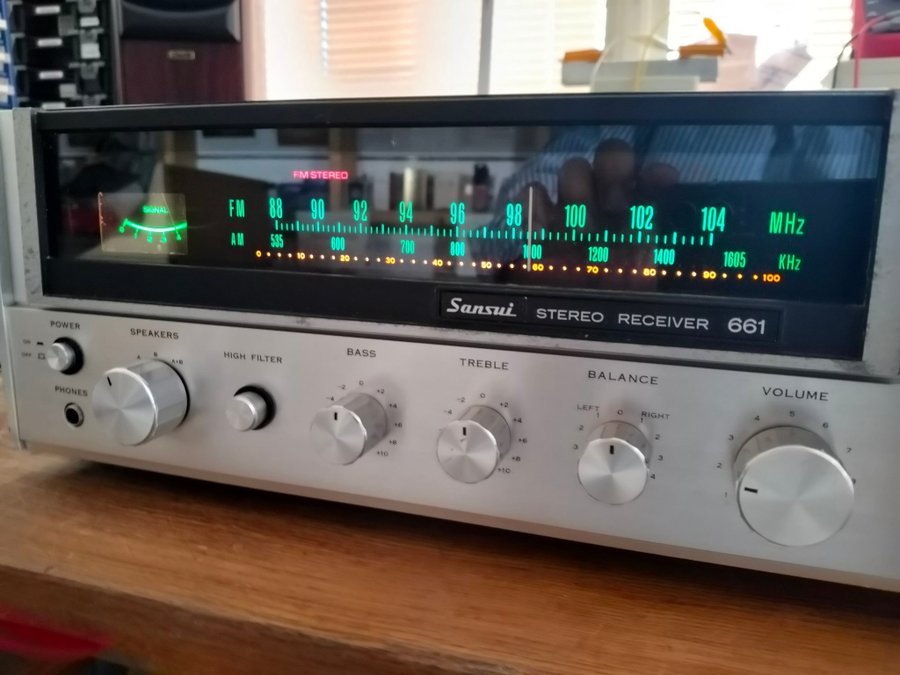

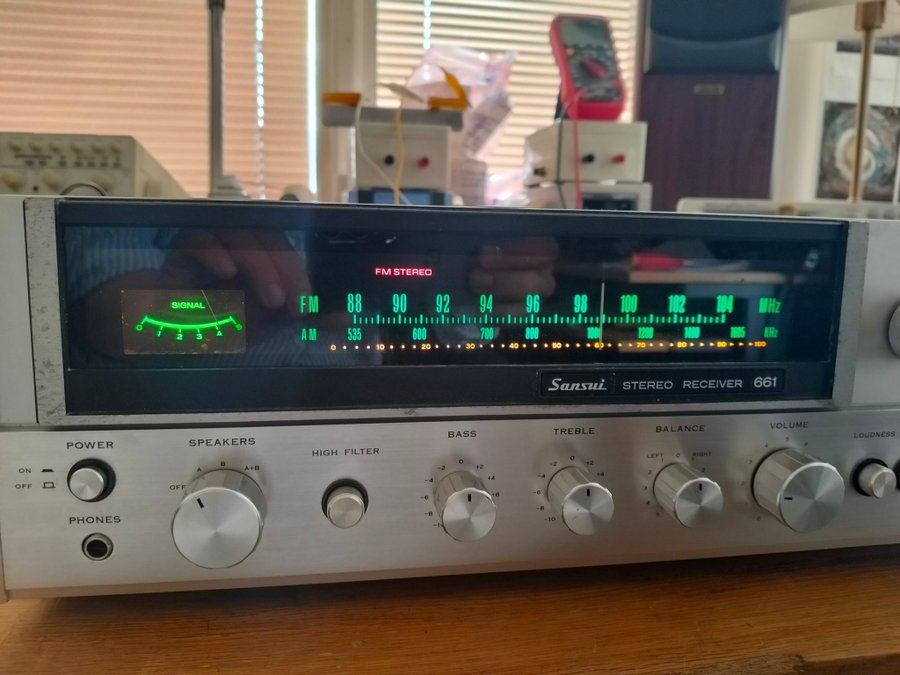

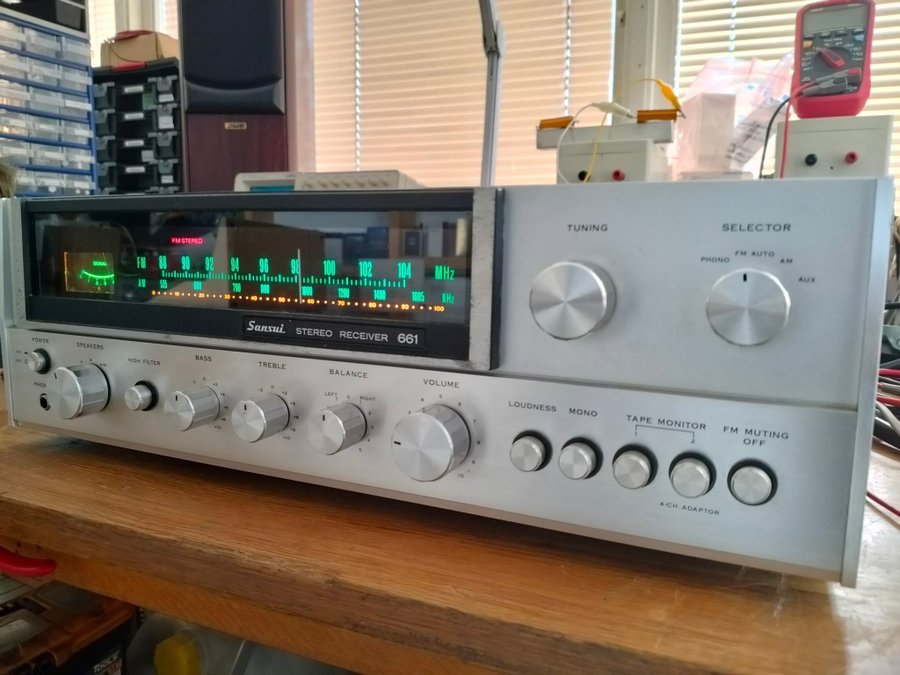

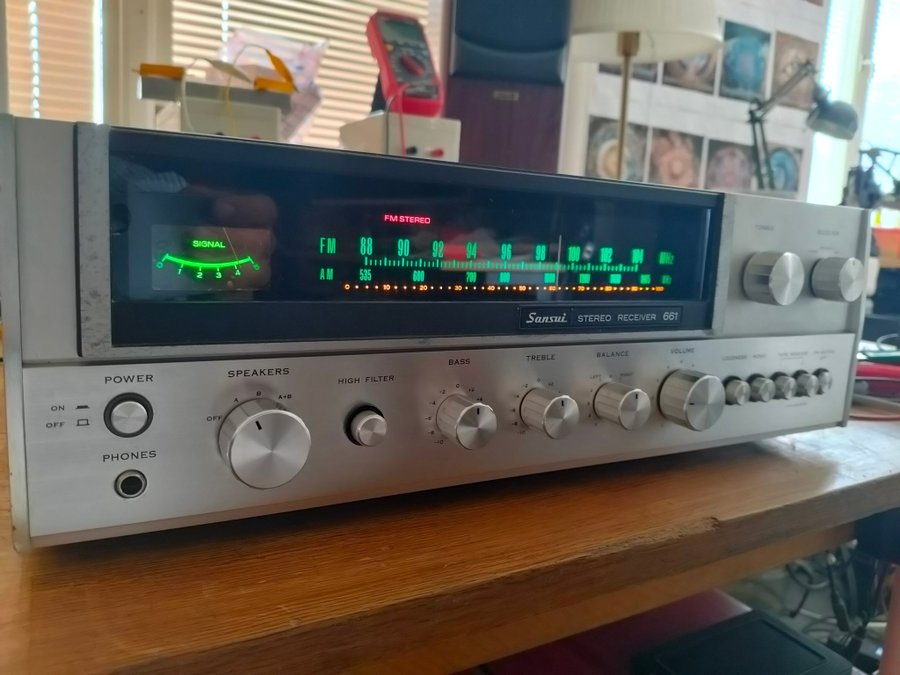

Sansui Stereo Receiver 661.

Modell: 661
Spänning: 220 volt ~ 50Hz
Effekt: 180 watt
Tillverkad av Sansui Electric Co., LTD. Tokyo, Japan

Beskrivning
När Sansui presenterade den revolutionerande 661 FM/AM-stereomottagaren blev många experter på högkvalitativ ljudkvalitet mycket överraskade. Namnet Sansui har länge inneburit innovation och excellens inom sofistikerad ljudelektronik. Men det har också, vanligtvis, inneburit att all högkvalitativ utrustning som bär namnet Sansui också hade en dyr prislapp.

Tack vare en häpnadsväckande innovation som kallas CBM (Circuit Board Module), som utvecklats specifikt av Sansui för sin finaste professionella studioutrustning, kan du glömma priset och koncentrera dig på den enastående Sansui-kvaliteten och prestandan hos den helt nya 661:an.

Detta är en prisvärd stereomottagare som levererar dyr tonkvalitet och prestanda. Dess effektförstärkare har en mycket avancerad direktkopplad OCL-design för alla steg, vilket ger en kontinuerlig RMS-effekt på 27 fullt användbara watt per kanal (total musikeffekt 110 watt) med en förvånansvärt bred effektbandbredd på 15 till 40 000 Hz med mycket låg total distorsion.

Den har en MOS FET-utrustad tuner och en mycket mångsidig förförstärkare och kontrollsektioner med två stereobandinspelnings-/monitorkretsar. Stereo AUX-ingångar och mycket mer skulle normalt innebära en betydligt högre prislapp.

SpecificationsTuning range: FM, MW

Power output: 20 watts per channel into 8? (stereo)

Frequency response: 15Hz to 30kHz

Total harmonic distortion: 0.5%

Damping factor: 60

Input sensitivity: 2.5mV (MM), 100mV (DIN), 100mV (line)

Signal to noise ratio: 70dB (MM), 80dB (line)

Channel separation: 45dB (MM), 45dB (line)

Output: 100mV (line), 30mV (DIN)

Speaker load impedance: 4? to 16?

Dimensions: 444 x 135 x 300mm

Weight: 10kg

Year: 1971

Reviews
Reviewed Nov 20th, 2023 by Willvis

I absolutely love my Sansui 661. The receiver interacts beautifully with a pair of Dynaco A25 speakers.

Reviewed Jan 06th, 2022 by marman

Hi, this is my first post.
I´m a happy owner of a Sansui 661.
Yesterday I end set up his dial back ligths, clean it and adjust dc offset and bias amp...after donwloading the service manual from here.
His music power is amazing!!
Its works hard in some partys, an ice cube in his back heat sink was a crazy but useful solution to preserv his power transistors !! ;))

Reviewed Sep 30th, 2020 by memofer

I have had this receiver for some now and after replacing all power supply caps, signal caps, some transistors and adjusting bias and dc offset I still do not find anything especial about this receiver, the sound quality is mediocre at best. the preamp and amplifier circuits are very basic. but if you like it how it sounds, more power to you.
It is a very good background music receiver.

Reviewed Sep 19th, 2020 by LostnAmerica

Just bought this (from the original owner. He just had some key work done and it already looks like I just bought it from a showroom. Man what sound, (not perfect but more than adequate) emanating from this 20wpc receiver. I'm not going back to the modern era receivers, nothing can match the price to performance ratio including decent am/fm reception and sound. For daily use, this is as good as it gets ($250)...My next step (up?), looking for a nice Luxman R-1050...I hear they sound sweet and are built well.

Reviewed May 12th, 2020 by john vb

I have had this receiver since 1972, when I bought it brand new. It still works flawlessly, and sounds great. It has enough power for my liking, and my days of listening to music at full volume are well behind me anyways.

Reviewed Apr 26th, 2020 by olegau

Great amp. The sound is similar to Sansui AU-222 and AU-881 I have in my collection.

Reviewed Aug 08th, 2019 by novy07

Great Vintage

Reviewed Jun 22nd, 2017 by Xyrios

I have this baby since one year now, and i had many many amps, this one is my favorite. Simple, beautiful, and it sounds awesome !

Reviewed Sep 13th, 2016 by jim292

best sounding small unit ive owned and have bought and sold many of various brands
