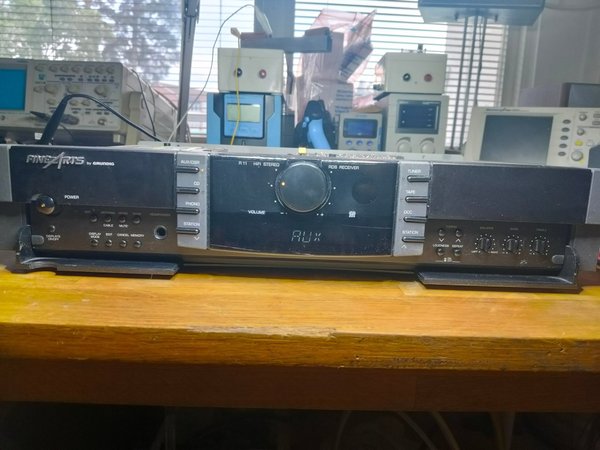

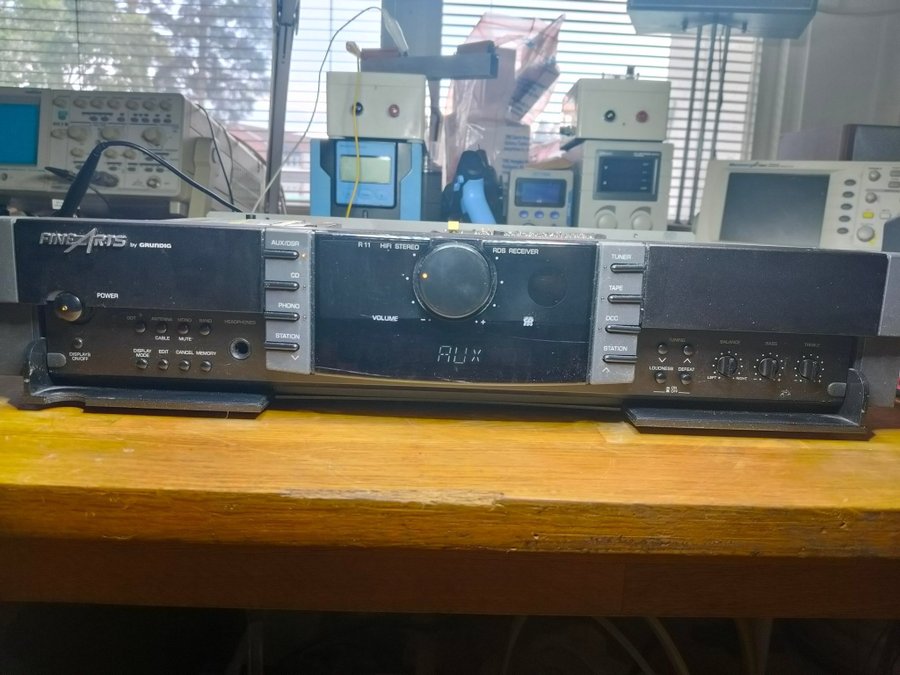

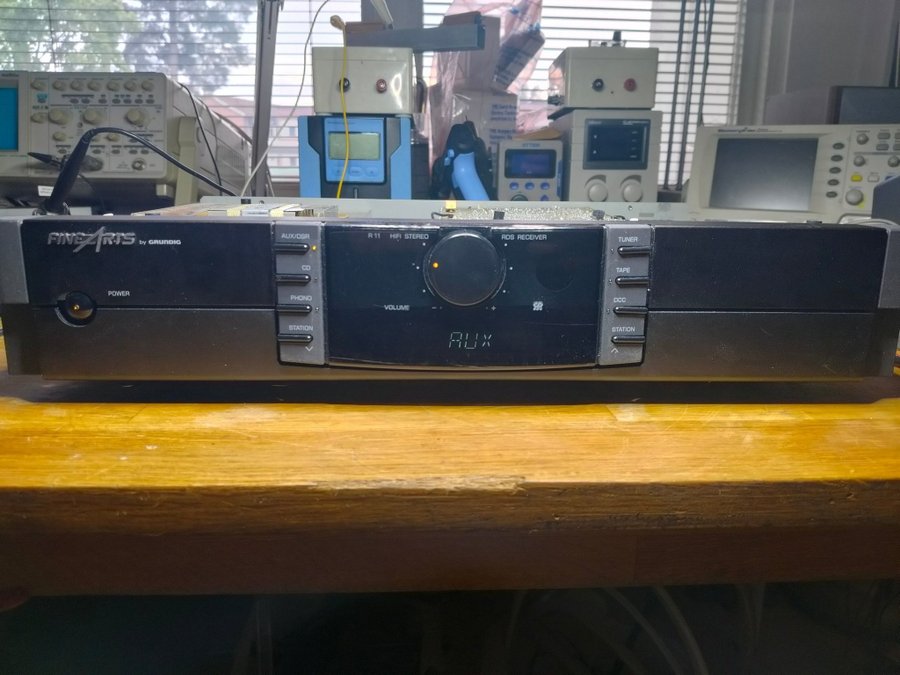

Hifi receiver från Fine Arts by Grundig. Modellen är R11 och den har ingångar för Phono, CD, AUX, Tape och DCC. Den har även radiofunktion.
Fungera som den ska.
Data:

Manufacturer: GrundigModel: R 11
Model series: Fine ArtsType: R11
ReceiverYears of manufacture: 1994 - 1997
Color: BlackMade in: Portugal
Power consumption: 280 W max.
Dimensions: 435 x 75 x 300 mm (WxHxD)Weight: 7.5 kg
Original price approx.: 598 DM

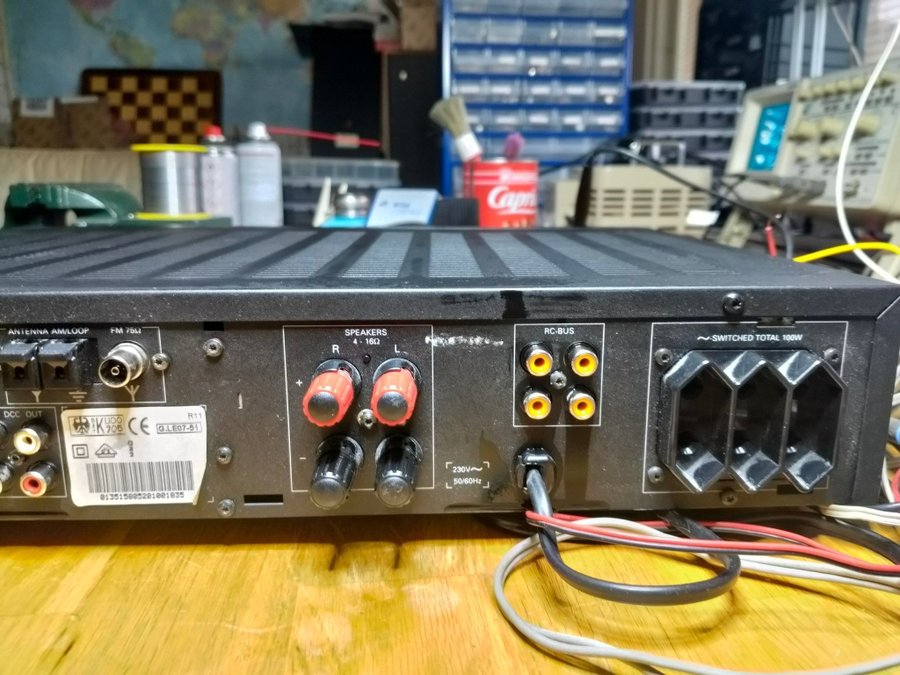

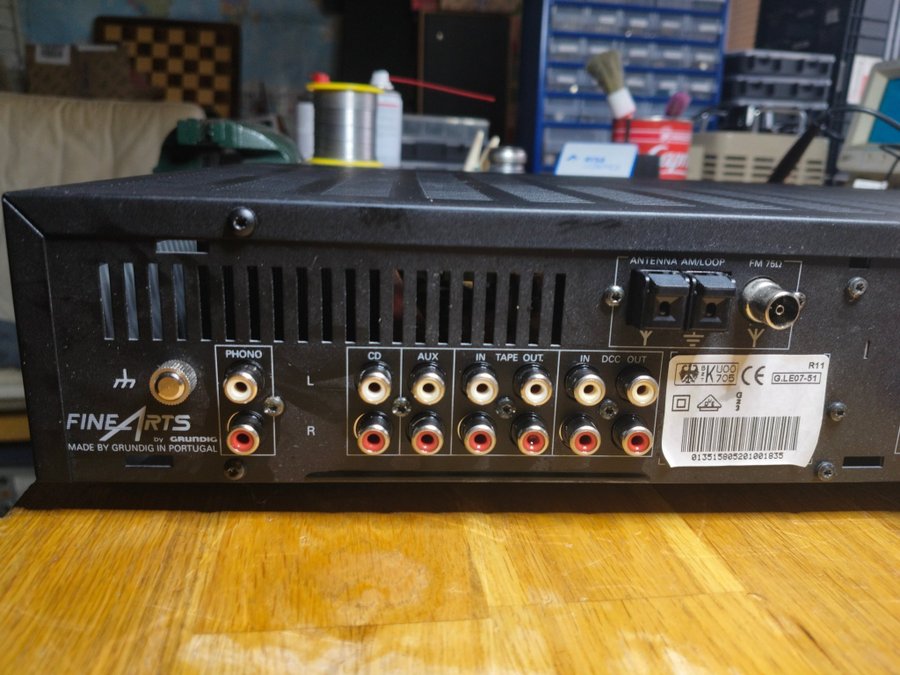

Connections

Number of inputs: 4Line IN: 180 mV at 47 kOhm
Phono MM: 1.8 mV at 47 kOhm
Tape: 180 mV at 47 kOhm
CD: 180 mV at 47 kOhm

Number of outputs: 3Tape OUT: 180 mV
Headphones: 6,3 mm jack
Loudspeaker A + B

Technical Data

Amplifier

Continuous power (at distortion factor)8 Ohm: 2x 40 Watt (0,7 %)4 Ohm: 2x 50 Watt (0,7 %)Dynamic power8 Ohm:4 Ohm: 2x 100 WattTotal harmonic distortion: at -1 dB / 8 O 1 kHz < 0,01 %Dämpfungsfaktor: >60 dBFrequency response: < 5 ... >100,000 HzSignal-to-noise ratio: > 94 dBTone control:Bass: presentTreble: present

Loudness: presentHigh Filter: -Low Filter (Subsonic): -Mute: -Direct/Line-Straight: yes
Tuner

Reception: FM, MW, LWFrequencies:FM: 87.5 - 108 MHzMW: 528 - 1605 kHz

LW: 153 - 281 kHzFrequency response: 10 - 15'000 HzInput sensitivity: Mono 1.1 µV / Stereo 35 µVDistortion factor: Mono 0.2 % / Stereo 0.4 %Signal to noise ratio: Mono 74 dB / Stereo 70 dBChannel separation:Selectivity: > 60 dBCo-wave selection:Spurious wave selection:IF attenuation:IF attenuation:AM suppression:Output level:RDS: yes
Station memory: 59
