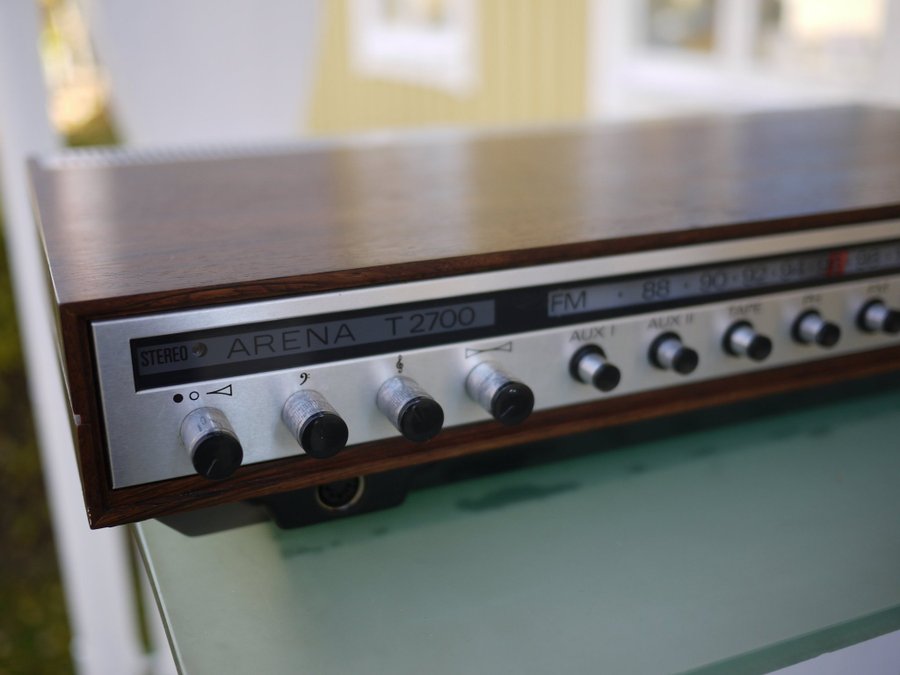

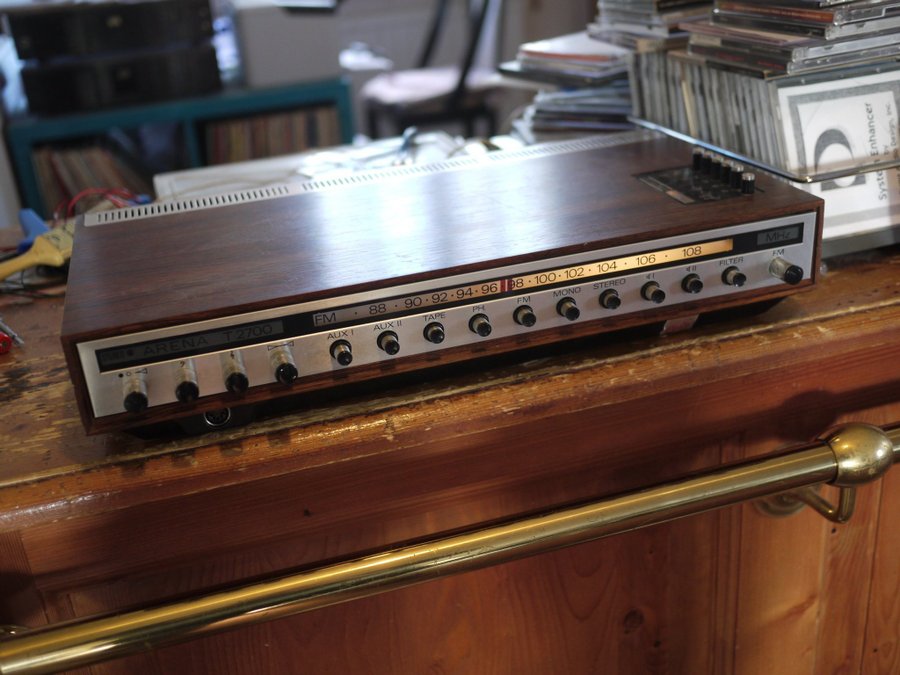

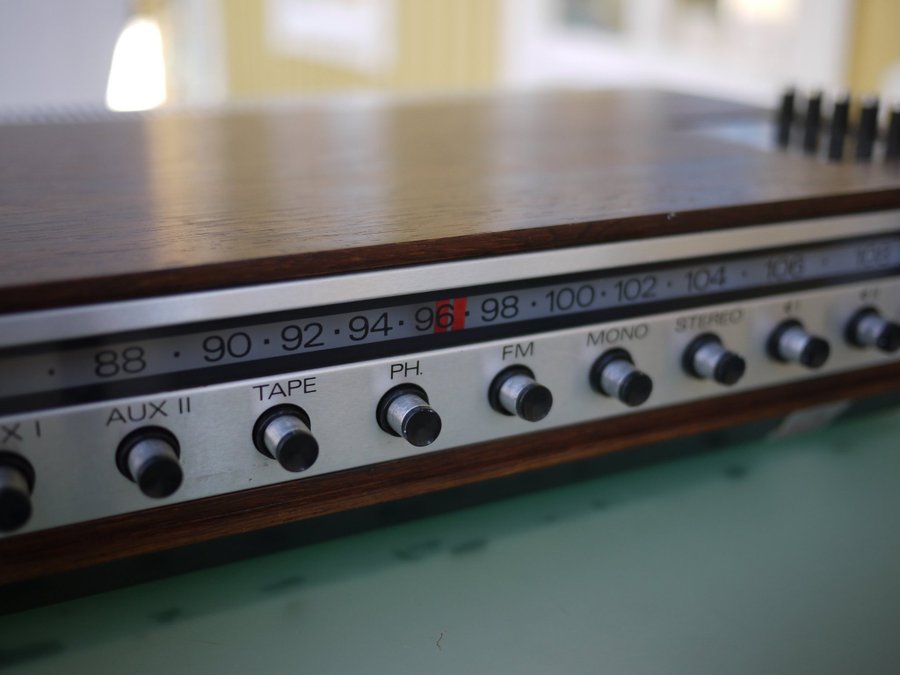

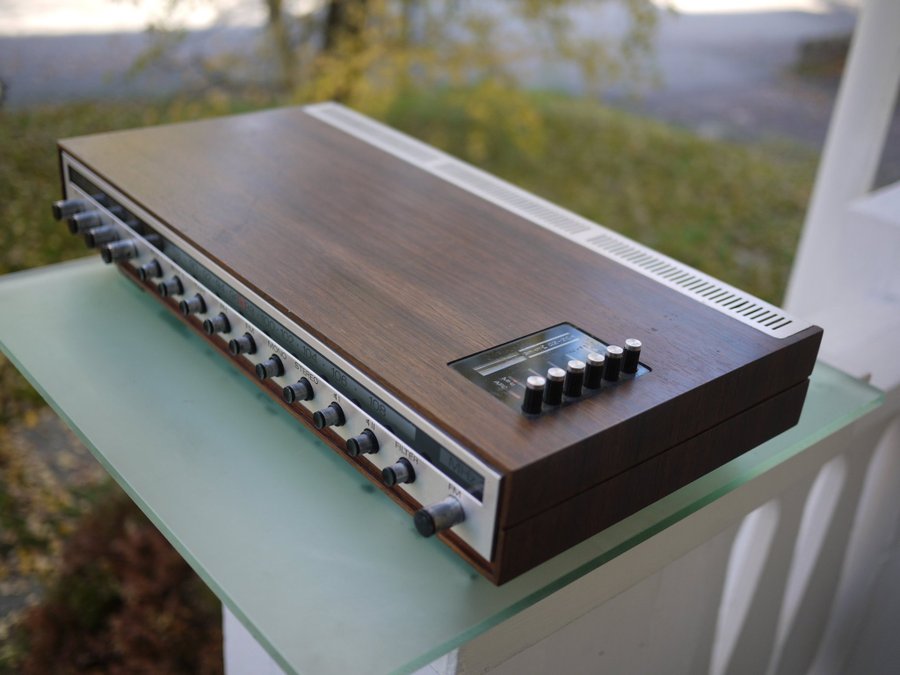

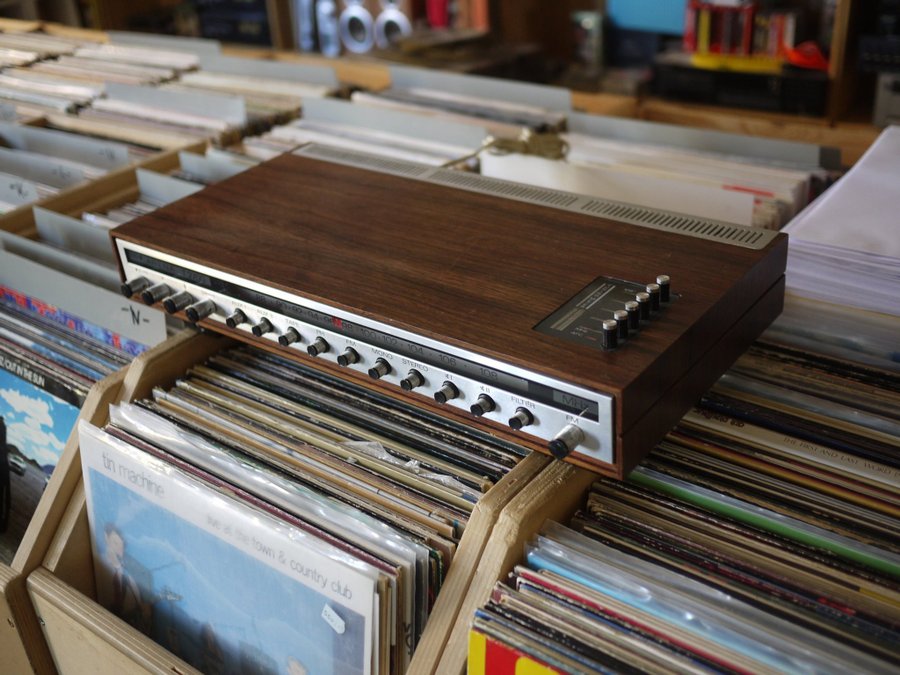

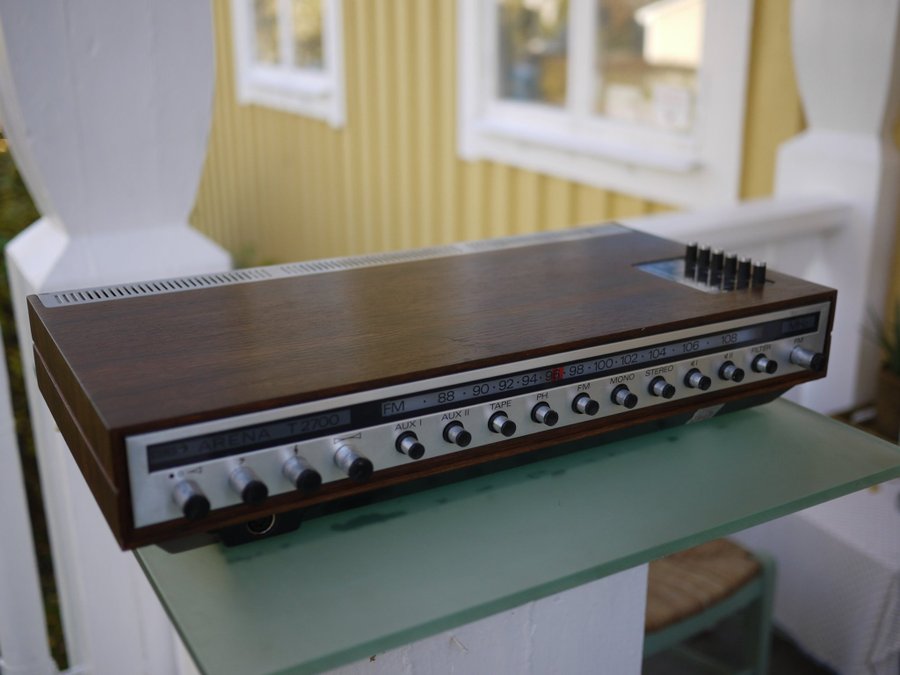

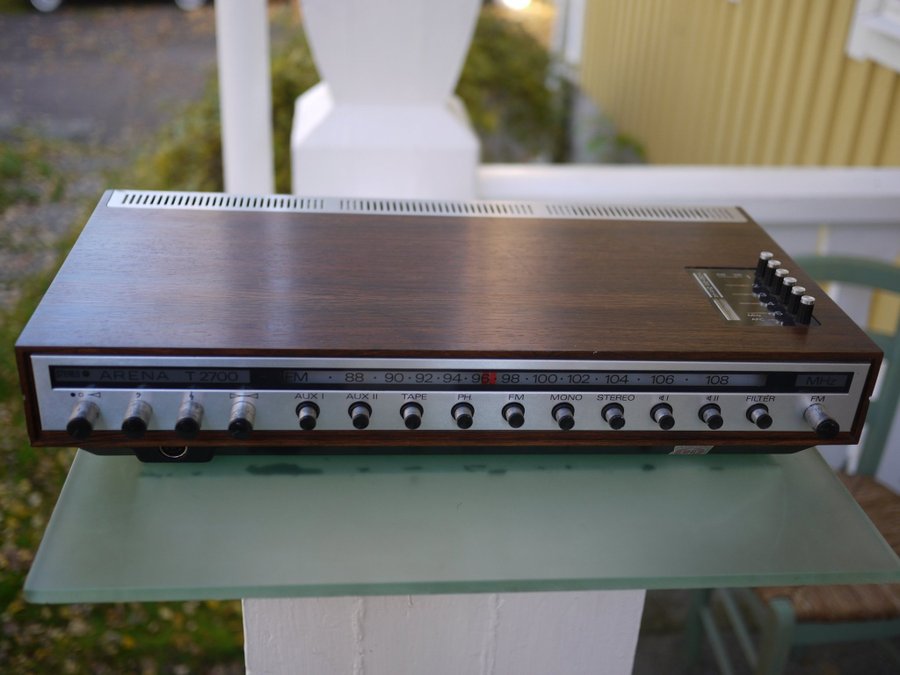

Rank Arena T2700 Receiver - made in Denmark

Rank Arena T2700 Receiver defekt: Utan ljud :-(

(även Rank skivspelare i lager)

Teknik:

Model: T 2700
Type: Receiver
Years of manufacture: 1970 - 1973
Manufactured in: Horsens, Denmark
Color: White / Black front, wooden housing optionally in walnut, white, teak, rosewood, oak
Power consumption: 100 W
Dimensions: 500 x 92 x 248 mm (WxHxD)
Weight: 6,5 kg
Original price approx.: 500€

Connections

Number of inputs:
Phono MM DIN: 3 mV / 47 kOhm
Phono crystal DIN: 350 mV / 500 kOhm

AUX DIN 1, 2: 300 mV / 50 kOhm
Tape Play DIN: 300 mV / 50 kOhm
Antenna VHF: 300 Ohm Balanced

Antenna FM: 75 Ohm Unbalanced
Number of outputs:
Tape Rec DIN: 30 mV
Headphones (6.3 mm jack, front)
2 pairs of loudspeakers

Technical Data

Amplifier

Continuous power
8 Ohm:
4 Ohm: 2 x 20 W
Dynamic power
8 Ohm:
4 Ohm: 2 x 30 W
Total harmonic distortion: 0.4
Attenuation factor: 60 at 8 Ohm
Frequency response: 15 Hz - 30 kHz
Signal-to-noise ratio:
Phono MM: 60 dB
High level: 70 dB
Stereo channel separation: > 40dB
Tone control:
Bass: ± 15 dB at 70 Hz
Treble: ± 15 dB at 15 kHz

Loudness:
High Filter: Yes
Low Filter (Subsonic):
Mute:

Tuner

Reception: FM
Frequencies:
FM: 87.5 - 108 MHz
Frequency response: 30 - 15,000 Hz, + 0.5 dB, - 3 dB
Input sensitivity:
FM: 1.5 µV (IHF).
Distortion factor:

FM: 0.5% (mono), 0.7% (stereo).
Signal-to-noise ratio:

FM: 60 dB (stereo)
Channel separation:
FM: 35 dB (at 1 kHz).
Selectivity:
FM: 60 dB
Equal wave selection:
FM: 2.5 dB
Spurious wave selection:
FM: 90 dB
Image frequency attenuation:
VHF: 55 dB
IF attenuation:
FM: 60 dB
AM suppression: 50 dB
Station memory: 5

Special Features

FM muting

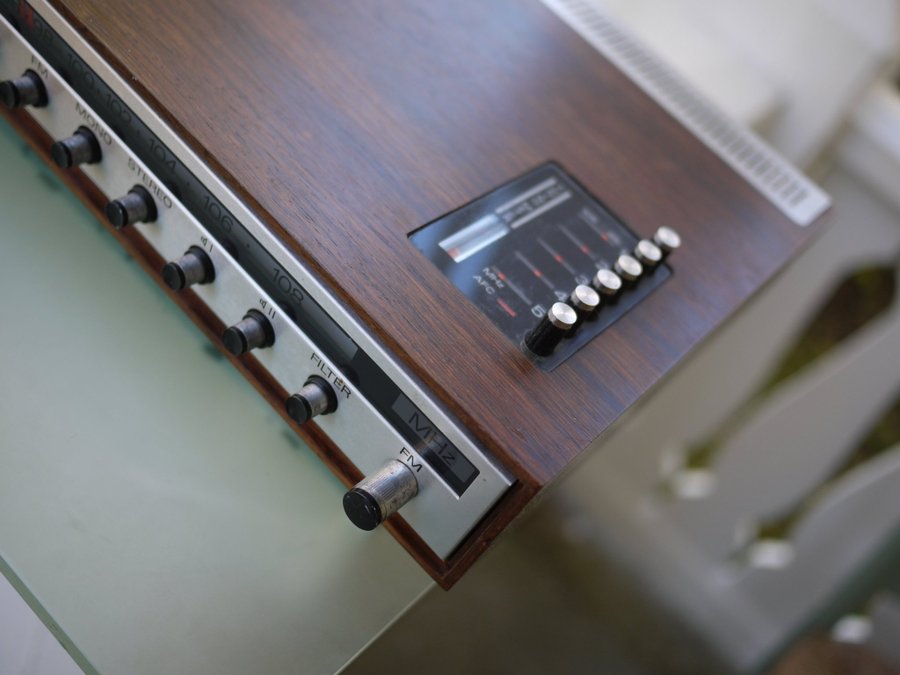

UKW Preomat station memory
