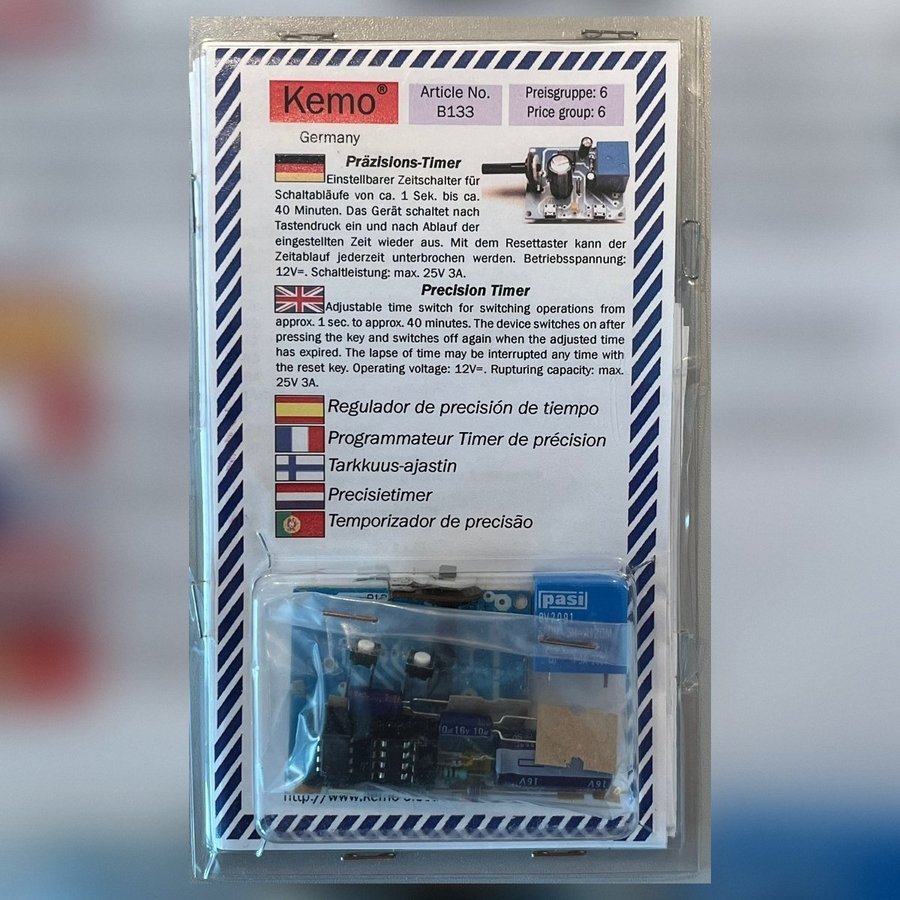

Adjustable time switch for switching operations from approx. 1 sec. to approx. 40
minutes. The device switches on after pressing the key and switches off again
when the adjusted time has expired. The lapse of time may be interrupted any
time with the reset key.

Technical Data:
===========
Adjustable time: approx. 1 sec. to 10 min. or approx. 3 sec. to 40 min.
Adjustment of time: with an adjustable regulator
Operating voltage: 12 VDC
Current consumption: < 50mA
Rupturing capacity: max. 25 V, max. 3 A
Switching contact: 1 x ON
Board dimensions: approx. 56 x 45 mm

Datasheet and building instructions can be found in PDF-format at
https://www.kemo-electronic.de/datasheets/b133_10042ke.pdf
