2st LM317 Linjär DC-DC step down justerbar spänningsregulator
Slutar 8 nov 14:34
59 kr
64 kr med köparskydd.
Fraktpris inom Sverige
22 kr Frimärken
46 kr Instabox
47 kr DB Schenker
51 kr PostNord
52 kr DHL
Samfrakt
7 dagarKan hämtas i
Alla betalningar granskas av Tradera för din säkerhet.
Direktbetalning | Delbetalning | Faktura
Köparskyddet gäller alla betalsätt
1/0
Beskrivning

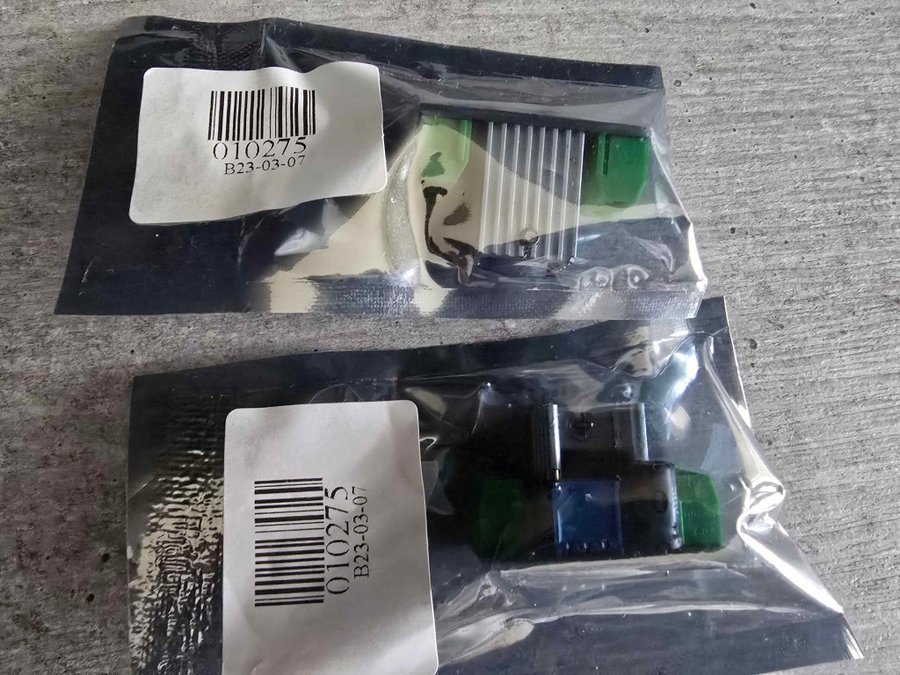

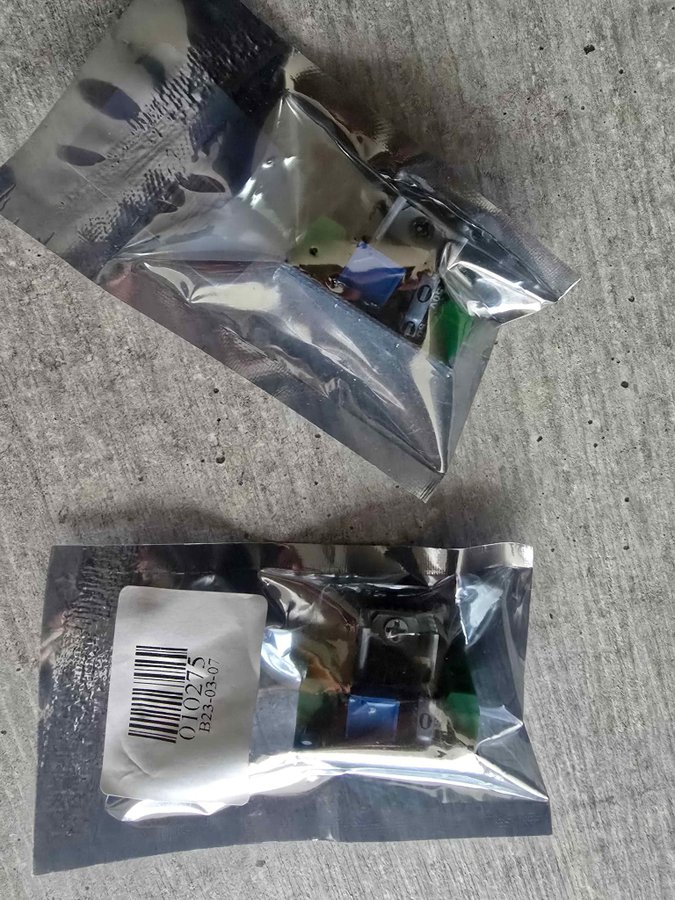

2st helt nya!
Spex:

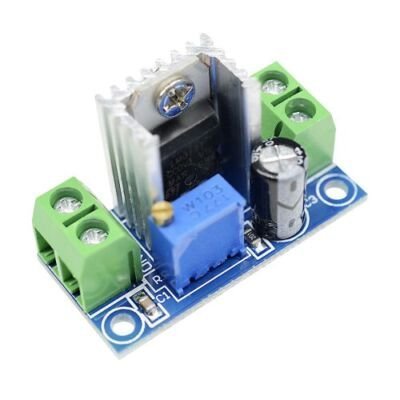

Name: Adjustable Linear Regulator
Output Current: 1.5A (minimum), 2.2A (typ)
Input and output voltage difference (VI-VO): 40Vdc (max)
Adjustable output voltage range: 1.2 ~ 37V
Operating temperature: -55 to +150
Output Current: 1.5A
Input voltage: 4.2 ~ 40 V
Characteristics Frequency: 100 (MHz)
Module size: 35.6 (mm) x16.8 (mm)
Input: VIN positive input stage, GND negative input
Output: VOUT output positive level, GND output negative
Maximum output current: maximum output current = 3 / (Input voltage - output voltage)
Spex:
Name: Adjustable Linear Regulator
Output Current: 1.5A (minimum), 2.2A (typ)
Input and output voltage difference (VI-VO): 40Vdc (max)
Adjustable output voltage range: 1.2 ~ 37V
Operating temperature: -55 to +150
Output Current: 1.5A
Input voltage: 4.2 ~ 40 V
Characteristics Frequency: 100 (MHz)
Module size: 35.6 (mm) x16.8 (mm)
Input: VIN positive input stage, GND negative input
Output: VOUT output positive level, GND output negative
Maximum output current: maximum output current = 3 / (Input voltage - output voltage)
