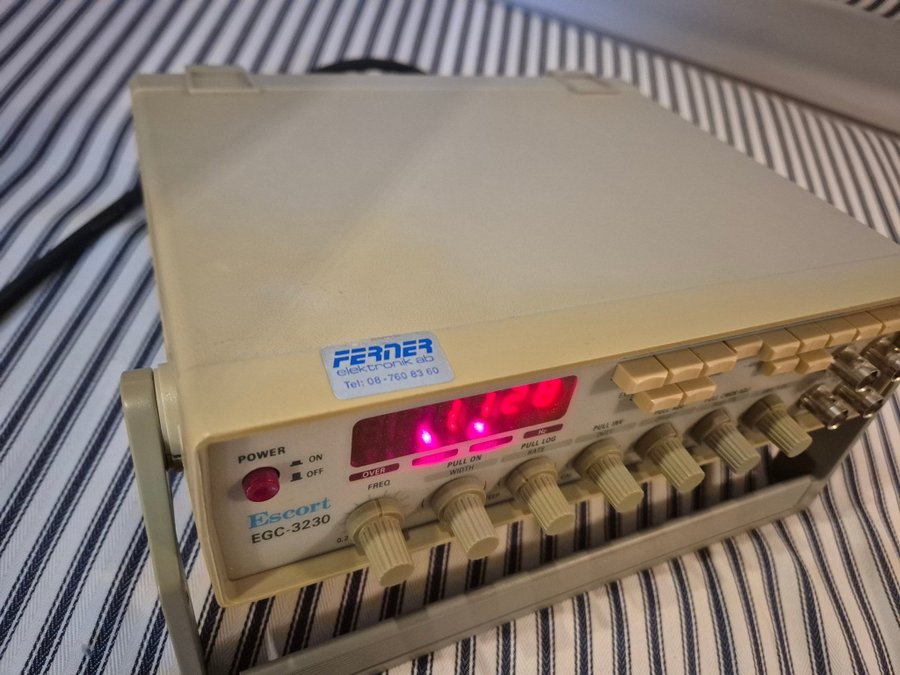

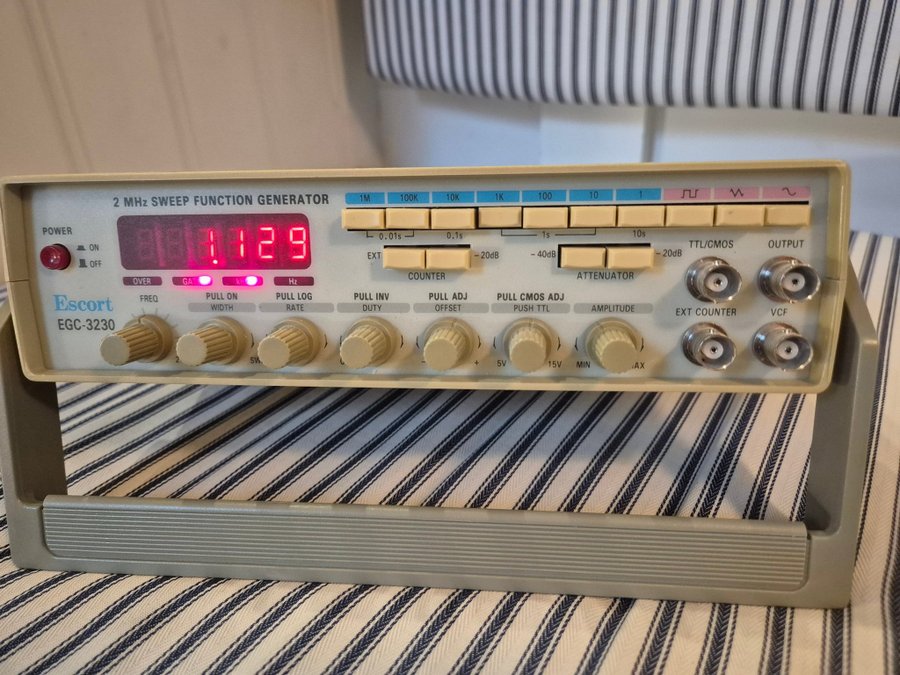

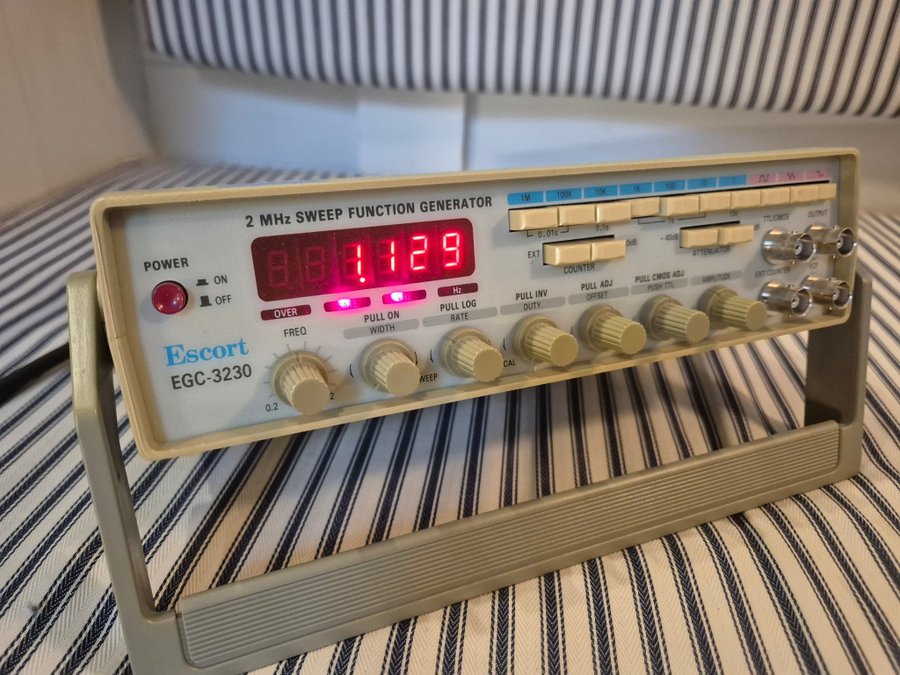

Escort EGC-3230 2 MHz Sweep Function Generator

? 0.2Hz to 2MHz
? Sine, Square, Triangle and TTL / CMOS Pulse
? Variable Symmetry
? Variable DC Offset
? Lin / Log / External Frequency Sweep
? 6 Digit 10MHz Frequency Counter

Specifications:
Output Waveforms Sine, Triangle, Square, TTL/CMOS Pulse, Ramp, Sweep
Output Frequency Range 0.2Hz to 2MHz in 7 Overlapping decade ranges
Frequency Display 6 digit, 0.36 inch LED display
Frequency Display Accuracy + / - 20ppm of display reading
Output Amplitude 500mV to 20Vp-p open circuit
DC Offset Range Adjustable between ±10V open circuit
Step Attenuator - 20dB / -40dB
Output Impedance 50O ± 10%
Sine Distortion < 1%, 10Hz to 100KHz
Triangle Linearity < 1% at 100Hz
Square Wave Rise / Fall Time < 100ns
TTL Rise / Fall Time < 25ns
CMOS Rise / Fall Time < 60ns
Time Symmetry Variable 1 : 1 to 1 : 40
Sweep Mode Linear / Log
Sweep Rate 0.2Hz to 100Hz Continuously varied
Sweep Width 1:1 to 1000 : 1 Variable
VCG Up to 1000:1 frequency change with external 0V to +10VDC input
Frequency Counter Range 5Hz to 10MHz
Counter Accuracy ± 20ppm
Counter Sensitivity 30mVrms
Counter Input Attenuator 0 / -20dB
Power Consumption 25VA max.

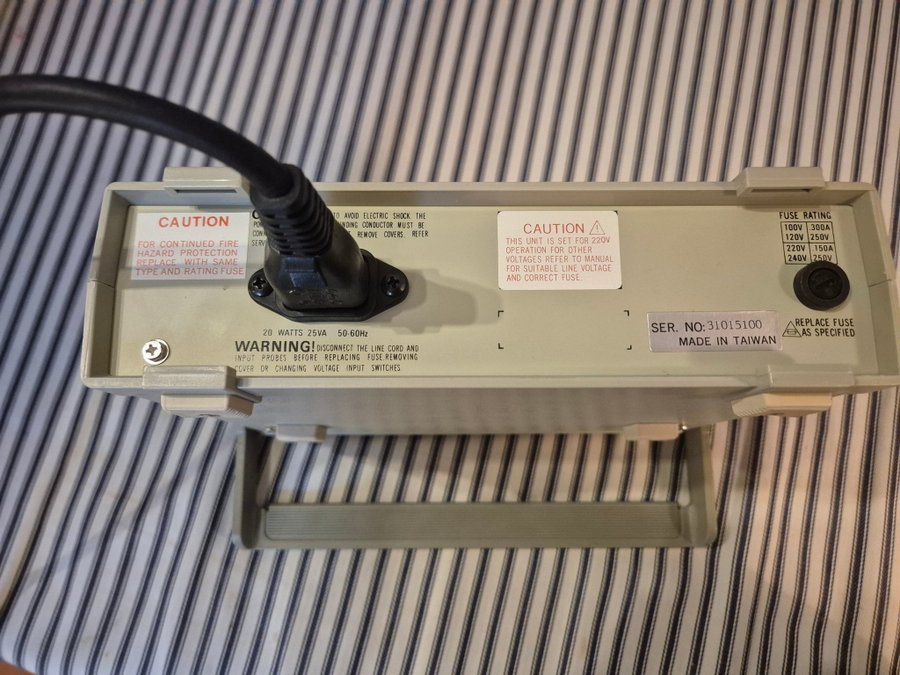

Power Requirement 100 / 120 / 220 / 240VAC Internal Selection
