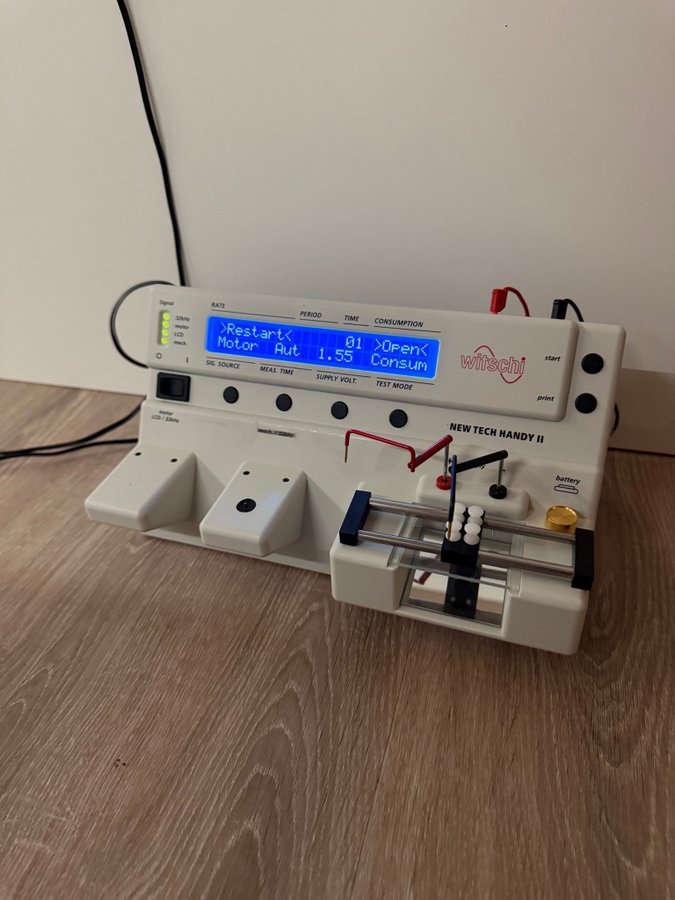

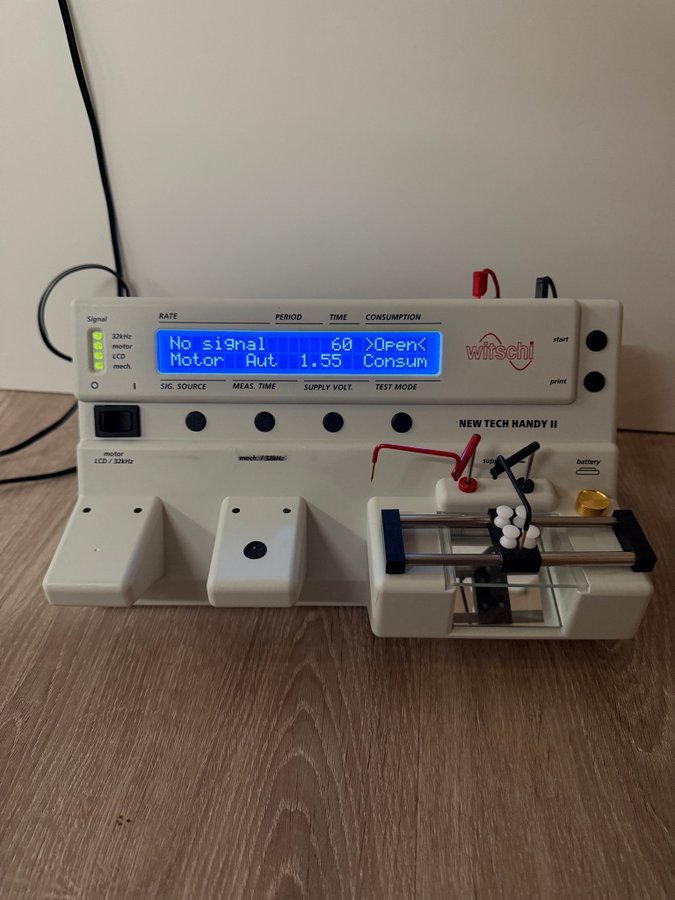

Witschi New Tech Handy II

The Witschi New Tech Handy II watch tester is a compact unit for testing all quartz watches; it stands out due to its ease of operation, fully-automatic tests and extreme convenience:

- user-friendly, as all measurements are carried out fully automatically
- beat measurement for quartz and mechanical watches
- integrated measurement of the IC and total power consumption
- automatic determination of the measuring times
- resistance measurement, testing for short-circuits and continuity
- testing of watch batteries
- supplying the watch with variable current
- warning beep on incorrect operation

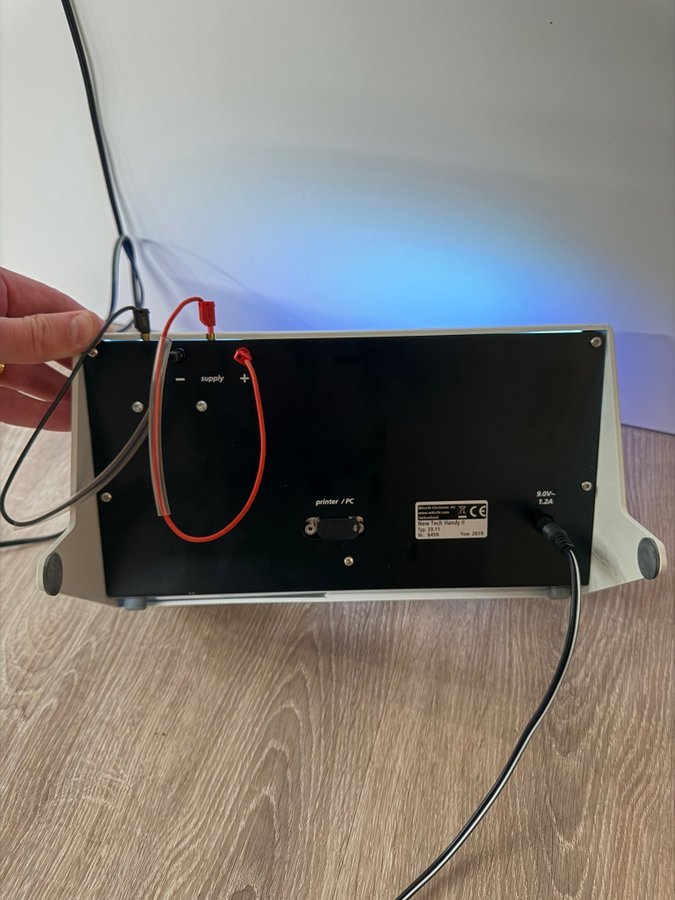

- communication possible through interfaces for printer and PC

Standard equipment:
- unit with mains power lead
- 1 pair of mobile contacts with test tips
- 1 pair of cables with test tips
- 1 movement holder for quartz watches

Technical details:
Battery test: 0-5 V with or without load
Feed voltage: 1.10-1.25-1.35-1.55-2.10-3.00 V
Power consumption: 10 nA - 20 mA
Resistance measurement: 1 KA - 10 MA
Dimensions (L x B x H): 260 x 145 x 160 mm
Weight: 2 kg
Mains operation: 230 V~ 50Hz

Price as new is 3290€.
