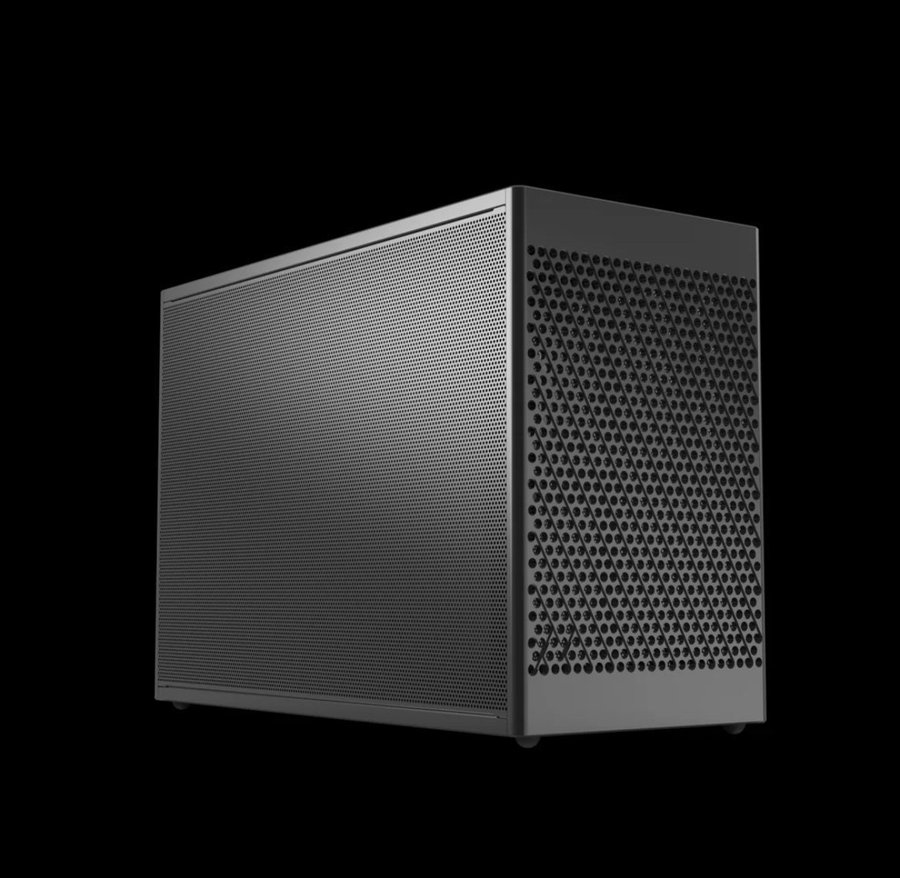

Ncase M2 Grater (svart)

Itx-chassi

Variant M2-Grater
Materials Chassis: 2.5-18mm Aluminum, CNC Machined and Anodized
Fan Bracket: 1.0mm Steel, Powder-Coated

M2-Angle, M2 Split, M2-Grater Side Panels: 1.5mm Aluminum, Anodized (see 2025-04-08 Blog Post. Prior Side Panels are Powder-Coated.)

M2-Round Side Panels: 1.5mm Aluminum, Powder-Coated
Dimension (cm) 16.6 x 25.8 x 36.6 (without feet/protrusions/screws)
16.6 x 26.2 x 37.2 (including feet/protrusions/screws)
Volume (L) 15.67 (without feet/protrusions/screws)
16.18 (including feet/protrusions/screws)
Weight (KG) 3-5 based on variant kit/bundle
PCIe Riser Support Please refer to the M2 Builds For More Info
Classic Config: Not Applicable
Flipped Config: Not Applicable
VGPU Config: PCIe X16 4.0 and 5.0
Motherboard Compatibility Please refer to the M2 Builds For More Info
Mini-ITX, Deep-ITX, Mini-DTX, Micro-ATX
CPU Cooler Compatibility Please refer to the M2 Builds For More Info
Classic Config: 144.8mm
Flipped Config: 144.8mm
VGPU Config: 50mm for 4-Slot graphics cards, 70mm for 3-Slot graphics cards
Graphics Card Compatibility Please refer to the M2 Builds For More Info
Classic Config: 359mm long, 148mm tall, 4-Slots
Flipped Config: 359mm long, 148mm tall, 4-Slots
VGPU Config: 359mm long, 175mm tall, 4-Slots
Power Supply Compatibility Please refer to the M2 Builds For More Info
Classic Config: SFX, SFX-L, ATX (140mm)
Flipped Config: same as Classic Config
VGPU Config: SFX, SFX-L

Note: ATX Power Supplies up to 160mm deep can fit with some Motherboards and 3-Slot Graphics cards. Please see M2 Builds for more information.
Liquid Cooling Compatibility Please refer to the M2 Builds For More Info
1 x 120 Radiator / AIO
1 x 140 Radiator / AIO
1 x 240 Radiator / AIO
1 x 280 Radiator / AIO based on components

Note: The following Radiator/AIO combinations may be compatible with specific components. Please see M2 Builds for more information.
- 2 x 240 Radiator / AIO
- 2 x 280 Radiator / AIO
- 3 x 240 Radiator / AIO
- 3 x 280 Radiator / AIO
Drive Compatibility Please refer to the M2 Builds For More Info
3 x 2.5” drives based on components
1 x 3.5” drives based on components

Note: Up to 12 x 2.5” drives or 8 x 3.5” drives can be accommodated with specific components. Please see M2 Builds for more information.
Fan Compatibility Please refer to the M2 Builds For More Info
2 x 120mm + 1 x 92mm based on components
2 x 140mm + 1 x 92mm based on components

Note: Up to 9 case fans (8 x 120mm + 1 x 92mm, or 6 x 140mm + 2 x 120mm + 1 x 92mm) can be installed simultaneously with specific components. Please see M2 Builds for more information.
Front I/O Power Button
2x USB-A
1x USB-C

Note: The M2-Grater variant does NOT include Front USB IO.

Köpte för att bygga i ett litet chassi men när jag va inte nöjd med resultatet så jag säljer därför chassit då tillverkaren inte har något öppet köp pga att de skickas från Kina.

En PCIe riser medföljer

Ingen originalkartong finns kvar.

Säljs nedmonterat.
