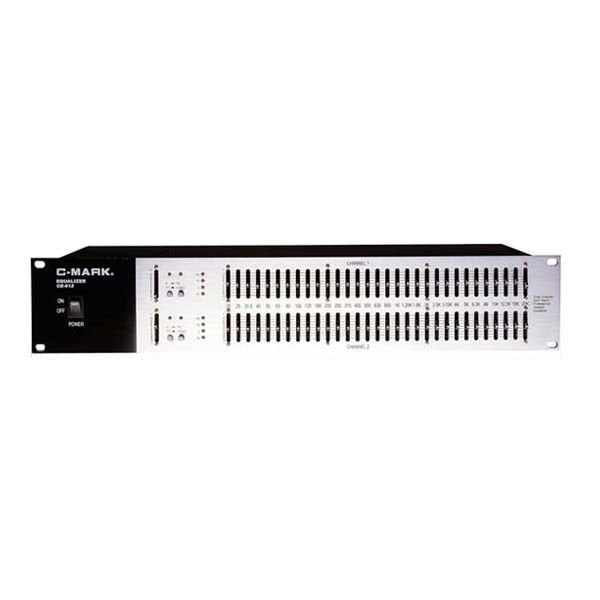

C-Mark CE-612 EQUALIZER
Slutar 14 okt 14:34
∙6 dagar 10 h
Utropspris
100 kr
107 kr med köparskydd.
Fraktpris inom Sverige
69 kr PostNord Ombud
Samfrakt
1 dagKan hämtas i
Alla betalningar granskas av Tradera för din säkerhet.
Direktbetalning - Delbetalning - Faktura
Köparskyddet gäller alla betalsätt
1/0
Beskrivning
Nätsladd ingår ej. Mycket sparsamt använd
INPUT Connectors:INPUT(1,2)
• INPUT Impedance:15ohm
• Source Impedance:600 ohm Lines
• Sensitivity:+4dB(1.23V)
• Nominal Level:+4dB(1.23V)
• Maximum Before Clipping:+21dB(11.2V)
• Connectors:XLR-3-31 Type
OUTPUT SPECIFICATIONS:
• OUTPUT Connectors:OUTPUT(1,2)
• OUTPUT Impedance:150ohm
• Load Impedance:600ohm Lines
• Nominal Level:+4dB(1.23V)
• Maximum Before Clipping:21dB(11.2V)
• Connectors:XLR-3-32 Type
• Frequency Response:20Hz-20KHz ± 0.5dB @ +4dB *600 ohm
• Total harmonic Distortion:Less than 0.05 (20Hz-20KHz@+4dB 600ohm)
• Hum & Noise:-90dB
• Maximum Voltage Gain:0dB, Input Level...Max.
• EQUALIZER CONTROLS Center Frequencies:31 band (1/3 octave)
• Variable Range:± 12dB
• HIGH PASS FILTER (Roll off Frequency):12dB/octave (50Hz at -3dB point)
• Power Consumption:20W
• Dimensions(HXLXD) :482x88x130mm
• Weight:2.75kg
INPUT Connectors:INPUT(1,2)
• INPUT Impedance:15ohm
• Source Impedance:600 ohm Lines
• Sensitivity:+4dB(1.23V)
• Nominal Level:+4dB(1.23V)
• Maximum Before Clipping:+21dB(11.2V)
• Connectors:XLR-3-31 Type
OUTPUT SPECIFICATIONS:
• OUTPUT Connectors:OUTPUT(1,2)
• OUTPUT Impedance:150ohm
• Load Impedance:600ohm Lines
• Nominal Level:+4dB(1.23V)
• Maximum Before Clipping:21dB(11.2V)
• Connectors:XLR-3-32 Type
• Frequency Response:20Hz-20KHz ± 0.5dB @ +4dB *600 ohm
• Total harmonic Distortion:Less than 0.05 (20Hz-20KHz@+4dB 600ohm)
• Hum & Noise:-90dB
• Maximum Voltage Gain:0dB, Input Level...Max.
• EQUALIZER CONTROLS Center Frequencies:31 band (1/3 octave)
• Variable Range:± 12dB
• HIGH PASS FILTER (Roll off Frequency):12dB/octave (50Hz at -3dB point)
• Power Consumption:20W
• Dimensions(HXLXD) :482x88x130mm
• Weight:2.75kg
