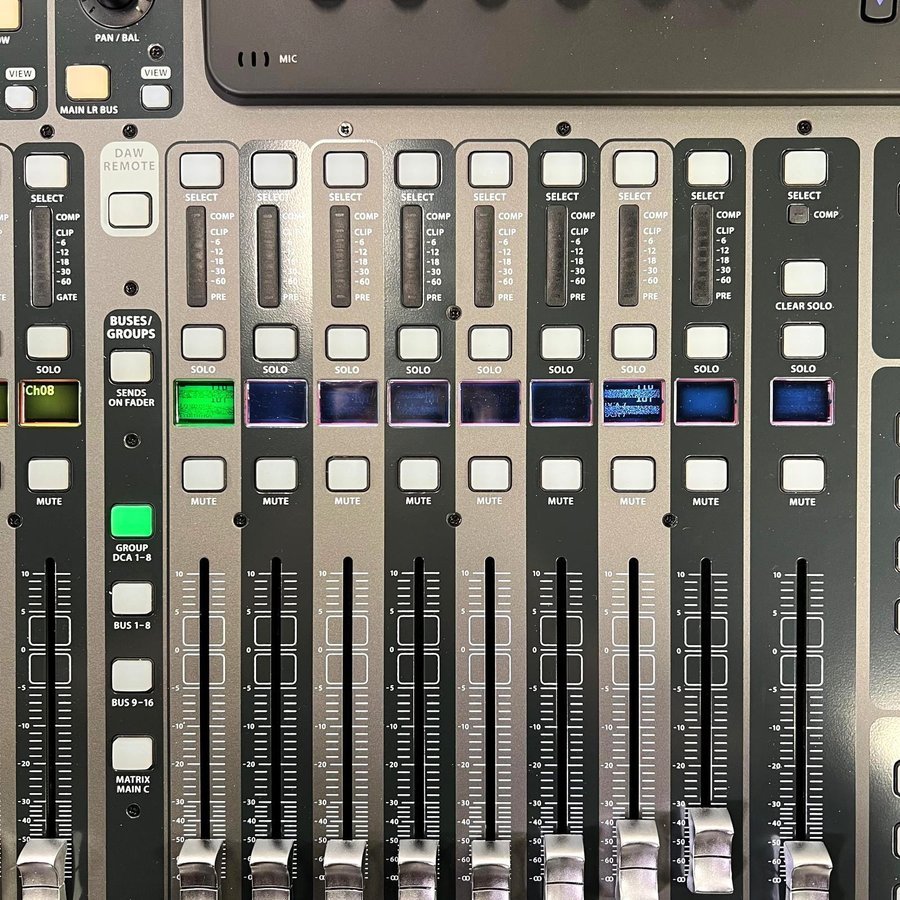

Dem små LCD skärmarna över "the faders" är defekta, informationen på dem går ej att läsa. Vissa visar ingenting, andra glitchande bokstäver/mönster. Fungerar utöver det. PSU medföljer

Gear4music's 1 års garanti för begagnade produkter gäller ej.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas som hemleverans. Produkten kommer skickas till adressen hänvisad i köparens kontoprofil.

Produktinformationen kan innehålla tillbehör eller programvara som inte ingår i Tradera varan.

Det som syns på annonsens bilder är det som medföljer.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas som hemleverans.

Följande är den ursprungliga produktbeskrivningen, ENDAST FÖR REFERENS.

Full Description

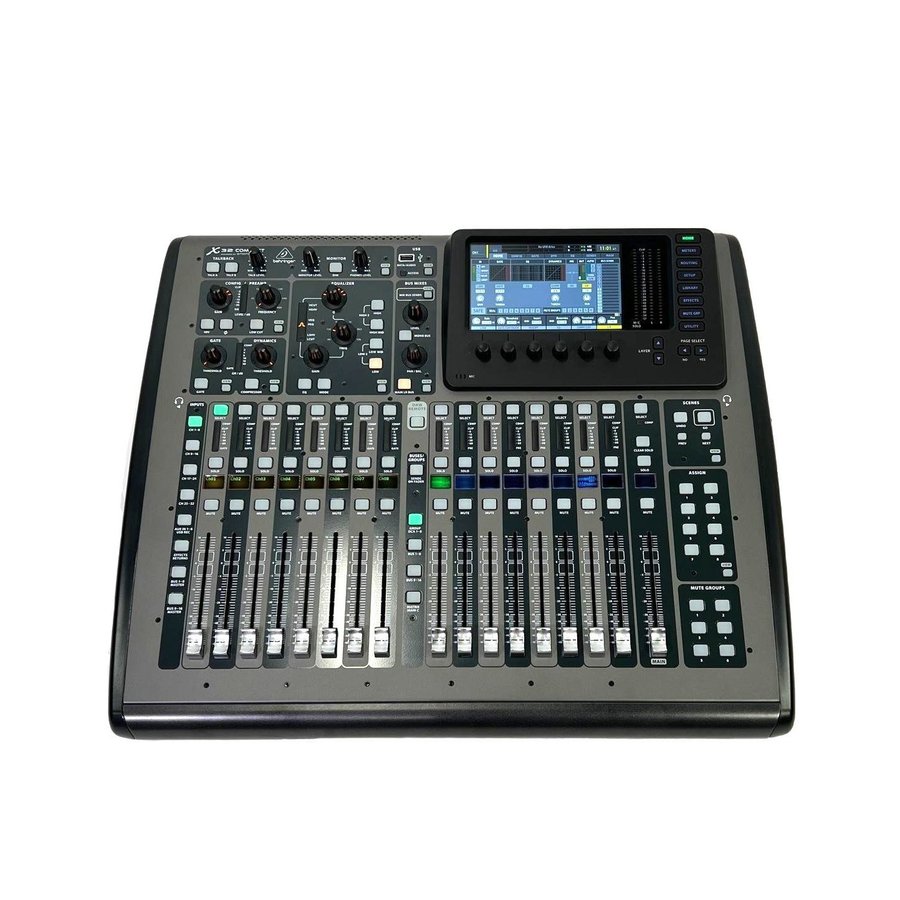

Features- Compact 40-input channel, 25-bus digital mixing console
16 MIDAS-designed, fully programmable mic preamps
17 fully automated motorised 100mm faders
8 XLR outputs plus 6 additional line in/outputs, 2 phones connectors & talkback section with integrated or external mic
Individual, dynamic LCD Scribble Strips on all channels
32 x 32 channel audio interface over USB 2.0, with DAW remote control emulating HUI & Mackie Control
iPad & iPhone apps for professional remote operation available free of charge - no host PC required
High-resolution 7" day-viewable Colour TFT
Main LCR, 6 matrix buses & all 16 mix buses each featuring inserts, 6-band parametric EQ's & full dynamics processing, plus 8 DCA & 6 mute groups
Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L & PCM70, EMT250 & Quantec QRS etc
40-bit floating-point DSP features 'unlimited' dynamic range with no internal overload & near-zero overall latency
Powerful scene management
48-channel Digital Snake ready via dual AES50 ports, featuring KLARK TEKNIKs SuperMAC networking capability
USB type - A connector providing file storage & uncompressed stereo recordings plus show presets & system updates
Dedicated & easy-to-use channel strip section with direct access controls & graphic user interface
Additional user-definable control section
ULTRANET connectivity for Behringer's P-16 Personal Monitoring System plus AES/EBU stereo digital output & MIDINetworked remote control for show setups with on-screen software editor via EthernetBuilt-in expansion port for audio interface cards or digital networking bridges

Specifications
ProcessingNumber Of Input Processing Channels: 32 Input Channels, 8 AUX Channels, 8 FX Return Channels, 16 AUX Buses, 6 Matrices, Main LRC
Internal Effects Engines, True Stereo/Mono: 8/16
Internal Total Recall Scenes (Including Preamp and Fader): 100
Signal Processing: 40-Bit Floating Point
A/D - D/A Conversion: 24-Bit @ 44.1/48kHz, 114 dB Dynamic Range
I/O Latency: 0.8 ms
Network Latency (Stagebox In > Console > Stagebox Out): 1.1 ms

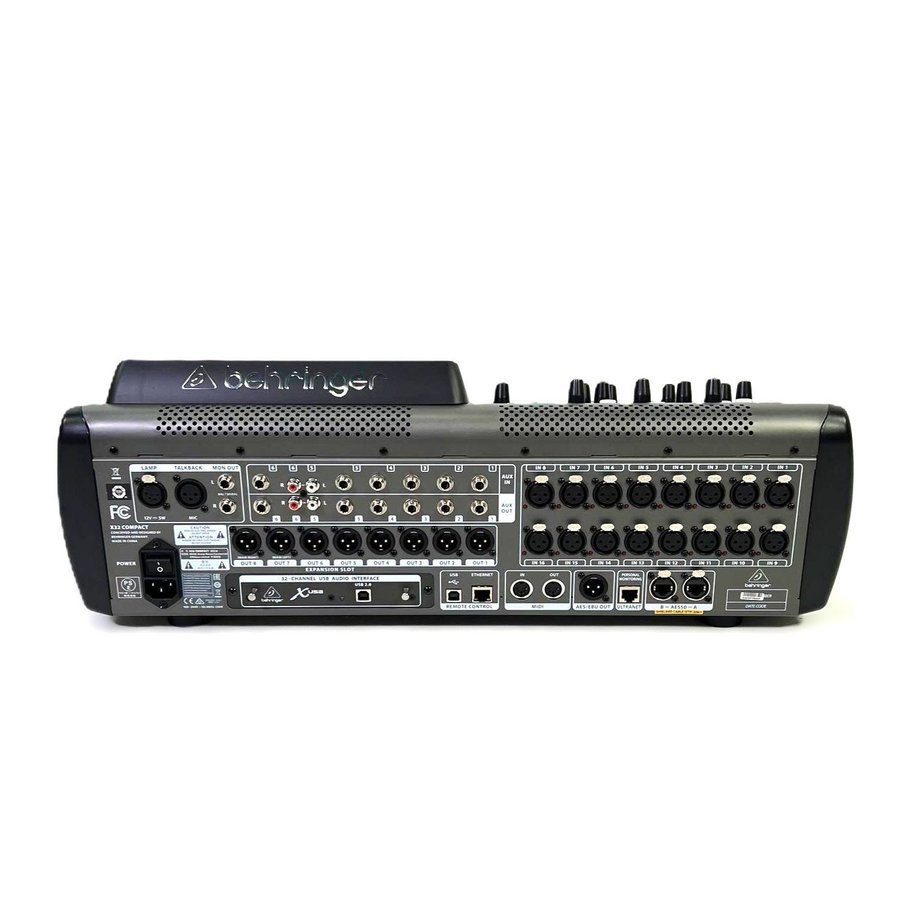

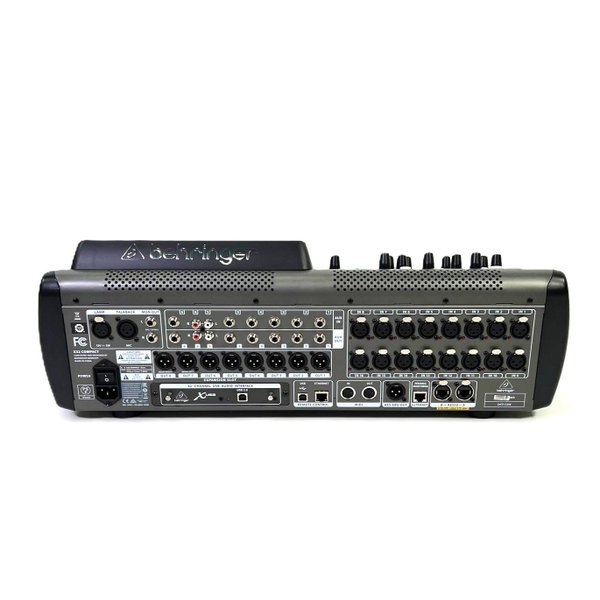

ConnectorsXLR Inputs, Programmable Mic Preamp: 16
Talkback Mic Input, XLR: 1 External (Plus Internal Mic)
RCA Inputs/Outputs: 2/2
XLR Outputs: 8
Monitoring Outputs 1/4" TRS Balanced: 2
AUX Inputs/Outputs, 1/4" TRS Balanced: 6/6
Phones Outputs, 1/4" TRS: 2 (Stereo)
Digital AES/EBU Output, XLR: 1AES50 Ports, SuperMac, Neutrik Ethercon: 2
Expansion Card Slot: 32 Channel Audio Input/Output, Various Standards
P-16 Connector, Ultranet (No Power Supplied): 1MIDI Inputs / Outputs: 1/1
USB Type A, Top Panel, For Audio and Data Export / Import: 1
USB Type B, Rear Panel, For Remote Control: 1
Ethernet, RJ45, Rear Panel, For Remote Control: 1
Mic Input Characteristics
THD + Noise, 20 dB Gain, 0 dBu Out:Input Impedance XLR, Unbalanced / Balanced: 5kO / 10kO
Non-Clip Maximum Input Level, XLR: +23 dBu
Phantom Power, Switchable Per Input: 48V
Equivalent Input Noise Level, XLR (Input Shorted): -128 dBu
CMRR, XLR, @ 20 dB Gain (Typical): > 70 dB
CMRR, XLR, @ 40 dB Gain: > 80 dB
Input/Output CharacteristicsFrequency Range: 10Hz - 22kHz
Dynamic Range: 106 dB
A/D Dynamic Range: 109 dB
D/A Dynamic Range: 108 dB
Cross Talk Rejection @ 1kHz: 100 dB
Output Level, XLR, Nominal/Maximum: +4 dBu / +21 dBu
Output Impedance, XLR, Unbalanced/Balanced: 75O / 75O
Input Impedance TRS Jack, Unbalanced/Balanced: 20kO / 40kO
Non Clip Maximum Input Level, TRS: +16 dBu
Nominal Output Level, TRS: +4 dBu / +16 dBu
Output Impedance, TRS, Unbalanced/Balanced: 150O / 300O
Phones Output Impedance / Level: 40O / +25 dBm (Stereo)
Residual Noise Level, XLR and TRS: -87 dBu A-Weighted
DisplayMain Screen: 7", 800 x 480, 262k Colour TFT
Channel LCD Screen: 128 x 64, LCD With RGB Colour Backlight
Main Metre: 24-Segment (-57 dB To Clip)
PowerSwitch-Mode Power Supply: Autorange 100-240V (50/60Hz)
Power Consumption: 120W
PhysicalStandard Operating Temperature Range: 5°C - 40°C
DimensionsHeight: 215 mm
Width: 625 mm
Depth: 510 mm
Weight: 15.4 kg

Se till att du läser artikelbeskrivningen fullständigt eftersom den säljs i befintligt skick.
14 dagars ångerrätt.
Du har 14 dagars ångerfrist från dagen efter att varan mottagits.
Fraktkostnad för returnering av varan betalas av dig som köpare.
