Flanger effektpedal

Rysstillverkad Flanger effektpedal med kontroller för speed, depth, manual och color. Sliten och älskad, och begränsad effekt för dig som är orädd skitighet.

Från Reverb.com:

It`s a fantastic flanger with many different variations of settings.
You can screw sounds from flying airoplane to octave modulation.

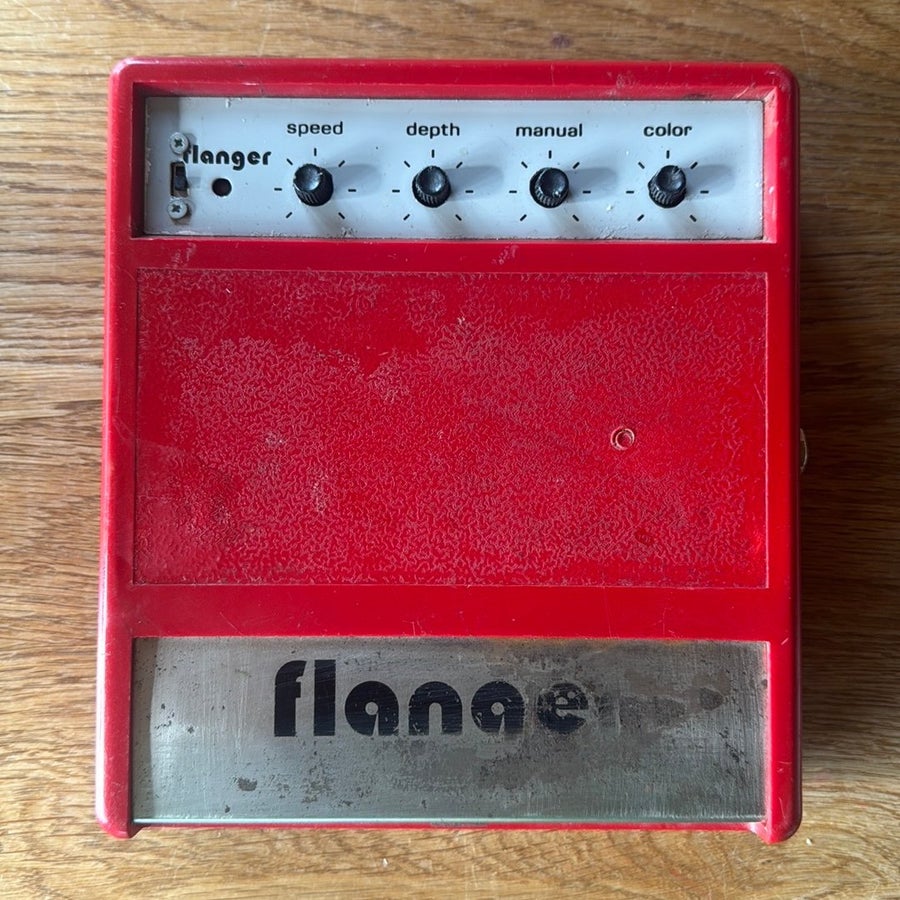

It has four control knobs, from left to right:
speed / depth / manual / colour.

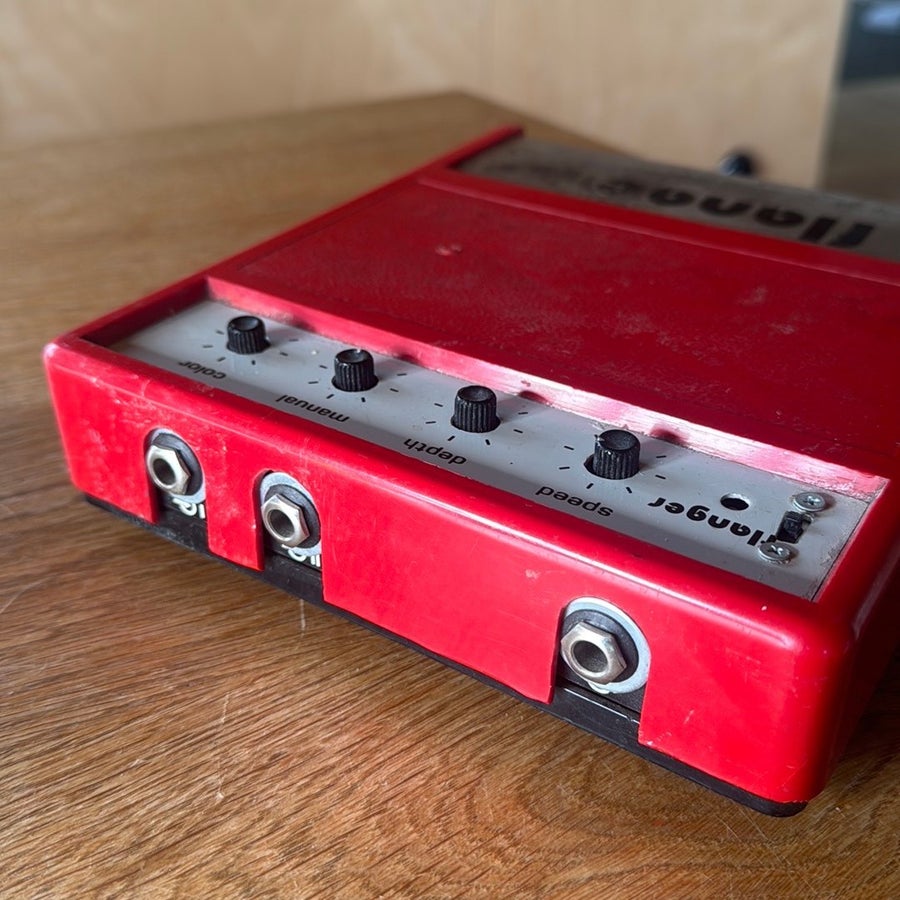

As you see on the photo it has two inputs.
The first input has sensivity -10db, while the second one has sensivity -20db. It also has LED, so you can see when the pedal is on or off.

Here are some interesting facts about controls:
if everything`s clear about speed/depth and colour, here`s some interesting description from original instructions about manual control: By the dint of that control knob you can set displacement of delay time deviation. Simply put, it increases the depth of the phase shift, the real value of which is randomly selected each time you turn the knob.

In the end position of the "depth" knob, the "manual" knob doesn`t alter the character of sound.

Specifications:
Delay time: 1-12 ms
Frequency change of delay time: 0,07-7 Hz
Background pause level: no more than -60 db
Maximum level of the input signal:
0,25 V [input I]
0,08 V [input II]
Dimensions: 210,2x188,2x62,5 mm
9V battery connector for power supply
Weight: ~1 kg

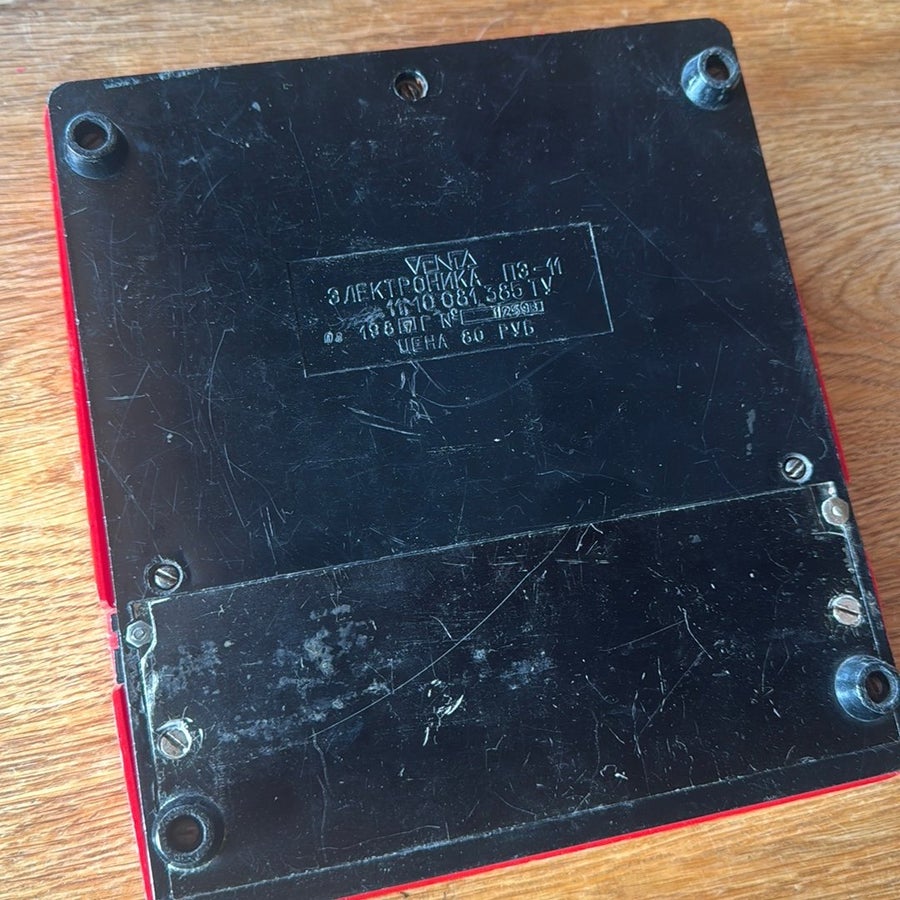

This pedal was made in 1988.
