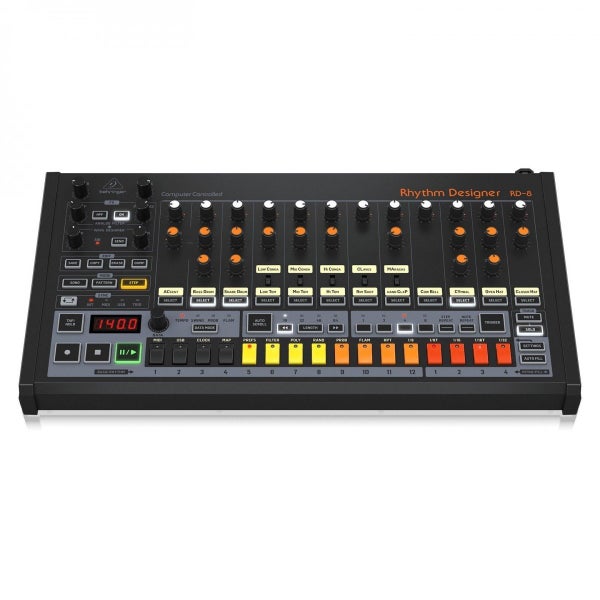

Behringer RD-8 MKII Drum Machine - DEFEKT

Product works, however 9" / PROB button has less sensitivity.

From the first black button (from the left) until the red coloured 1/32nd button (right colour near right end in row). There are a total of 16 buttons which have a keypad strip underneath them. This keypad strip is not in a single piece but instead split in 2 (1-8 and 9-1/32) could be causing less sensitivity in 9"/PROB (its the first key in the second keypad strip)

(Observera att första bilden är tagen från vår hemsida, endast för referens)

Gear4music's 1 års garanti för begagnade produkter gäller ej.

Observera att produkten inte är tillgänglig för avhämtning från Gear4musics Showroom utan kommer att skickas som hemleverans. Produkten kommer skickas till adressen hänvisad i köparens kontoprofil.

Full Description

Features

• Uses an authentic analog sound engine for a classic sound
• Has 16 drum sounds with extra parameters and global accent capability
• Authentic sound created by a 662 OTA chip
• 64-step drum sequencer with poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo
• Record and process drums separately thanks 11 separate analog outputs
• FX bus integrated with Wave Designer and a dual-mode Analog Filter
• Automate the recording, editing and playback of the analog filter live
• Save rhythms for later with storage for up to 16 songs and 256 patterns
• Use pattern mode and arrange patterns into entire tracks
• Chain multiple songs together in song mode for live performance
• Improvise easily with the Auto Scroll feature
• Link with other devices using MIDI In/Out/Thru, USB implementation and more
• Multiple sync options with USB, MIDI, clock and more Easy to change settings using the high-visibility LED display
• Use an encoder to edit Tempo, Swing, Probability, Flam and Random
• Headphone and main outputs provide powerful audio

Specifications

Voices

• Number of sounds: 16
• Type: Analog
• Number of simultaneous voices: 11 (12 including global accent)
• Sound controls:

  • Accent: Level
  • Bass drum: Level, tone, decay, tuning
  • Snare drum: Level, tone, snappy
  • Low, mid, hi conga / low, mid, hi tom: Level, tuning, voice selection
  • Claves / rim shot: Level, voice selection
  • Maracas / hand clap: Level, offset, voice selection
  • Cow bell: Level
  • Cymbal: Level, tone, decay
  • Open hat: Level, tone, decay
  • Closed hat: Level, tone
  • Select buttons: 16 Voice select buttons

Connectivity

• Outputs: 1 x ¼" TRS, stereo, 8 O impedance
• Mono: 1 x ¼" TRS, servo-balanced
• Voice out: 11 x ¼" TS, unbalanced
• MIDI In, Out & Thru: 3 x 5-pin DIN
• Trigger outs: 3 x +5 V, 1 ms pulse
• Clock in / out: 2 x 1/8" TS
• USB: Class compliant USB 2.0, type B
• Supported operating systems: Windows 7 or higher Mac OS X 10.6.8 or higher
• Volume controls: Master, phones
• Return (Input): 1 x ¼" TRS, balanced

Wave Designer

• Bus: 11 voices, independently assignable
• Controls:

  • Attack: -15 to +15 dB, adjustable
  • Sustain: -24 to +24 dB, adjustable
  • Send button: On/off, switchable
  • Sig LED: Red

Analog Filter

• Type: State variable, 12 dB slope
• Cutoff: 10 Hz - 15 kHz, adjustable
• Resonance: 0 - 10, adjustable
• HPF button: LPF / HPF mode, switchable
• On button: On / off, switchable

Sync Section

• Mode selector: Internal / MIDI / USB / Clock, selectable

Sequencer Section

• Edit buttons: Save, copy, erase and dump
• Mode buttons: Song, pattern and step
• Control: Encoder for data editing
• Playback controls: Tap / hold, record, stop, play / pause
• Data mode: Tempo / swing / prob / flam, selectable
• Auto scroll: On / off, rewind, length (16 / 32 / 48 / 64, selectable), fast forward
• Trigger: On / off, repeat division (1 / 2 / 4 / 8, selectable), step repeat, note repeat
• Track: Mute / solo, selectable
• Step buttons: 16 step enter buttons

Settings

• Settings: Enter settings mode, use step buttons to select operation

Autofill

• Autofill: Enter autofill selection mode

Songs / Storage

• Song mode: Chain any of the 16 songs together for full sets

Pattern / Storage

• Capacity: 16 songs, 16 patterns each
• Pattern mode: Up to 99 iterations per pattern/part
• Steps: 64 steps

Power Supply

• External power adapter: 18 V DC, 1000 mA
• Power consumption: 15 W typical

Environmental

• Operating temperature range: 5°C to 40°C (41°F to 104°F)

Physical

• Dimensions (H x W x D): 77 x 498 x 265 mm (3.0 x 19.6 x 10.4")
• Weight: 3.0 kg (6.6 lbs)
